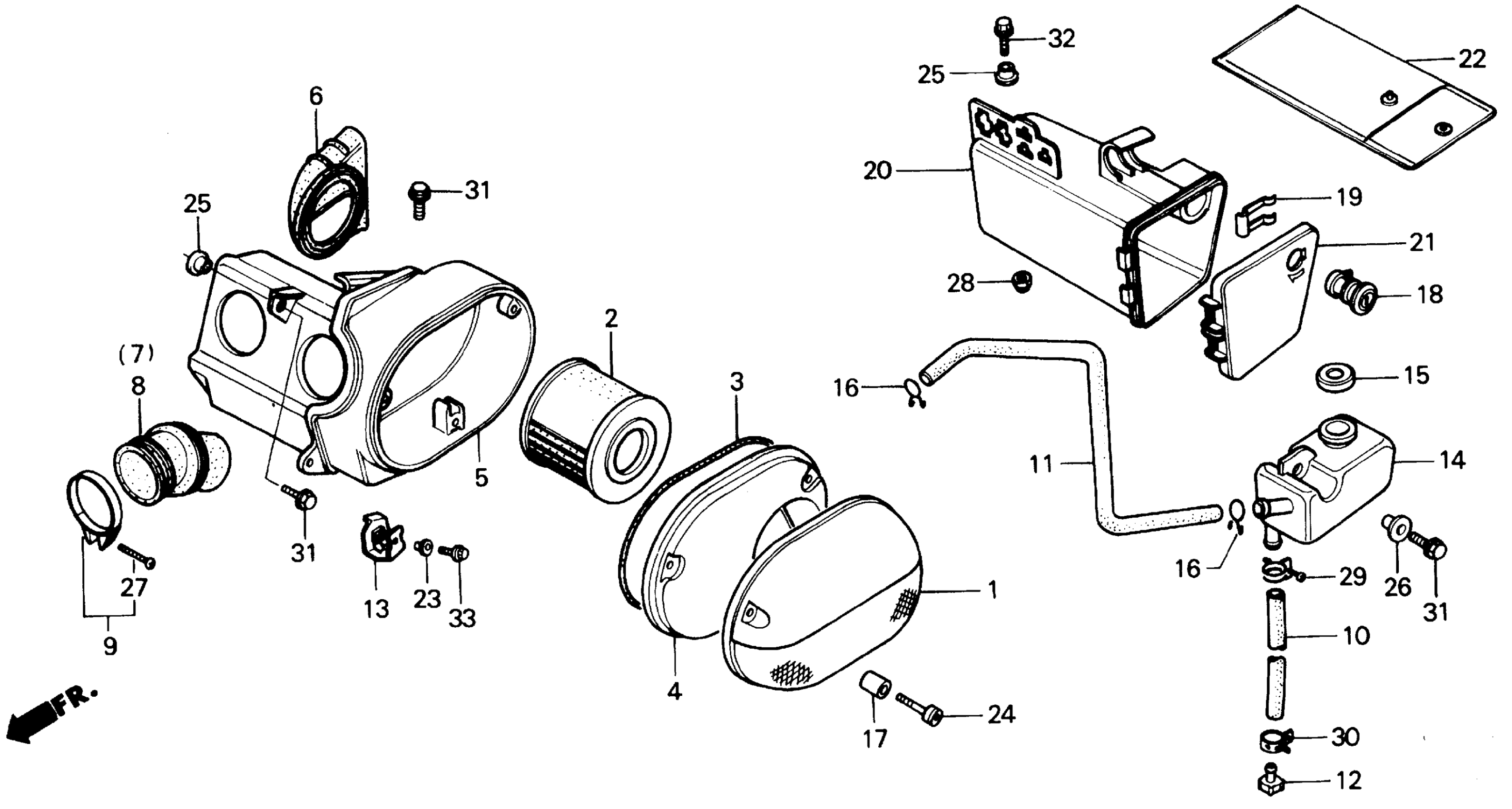

Honda CMX450CA (87) REBEL 450, JPN, VIN# JH2PC170-HM100001 TO JH2PC170-HM104034 AIR CLEANER Diagram

#

Description
Price

1

COVER, AIR CLEANER HOUSING

17210-MM2-000

Unavailable

2

ELEMENT, AIR CLEANER

17213-MM2-770

Unavailable

3

SEAL, AIR CLEANER COVER This part replaces 17219-MM2-000.

17222-MN4-405

$7.31

3

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

4

LID, A/CLNR HSG This part replaces 17220-MM2-770.

17220-MM2-505

Unavailable

5

CASE ASSY., AIR CLEANER

17231-MM2-770

Unavailable

6

TUBE, AIR CLEANER JOINT DUCT (NOT AVAILABLE)

17240-MM2-000

Unavailable

7

TUBE, R. AIR CLEANER CONNECTING (NOT AVAILABLE)

17254-MM2-000

Unavailable

8

TUBE, L. AIR CLEANER CONNECTING (NOT AVAILABLE)

17255-MM2-000

Unavailable

9

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-000.

95018-60250

$6.25

10

TUBE, DRAIN (NOT AVAILABLE)

17363-MM2-770

Unavailable

11

TUBE, BREATHER (NOT AVAILABLE)

17368-MM2-000

Unavailable

12

PLUG, BREATHER TUBE

17370-419-700

$3.74

14

TANK, STORAGE (NOT AVAILABLE)

17551-MM2-770

Unavailable

15

GROMMET, STORAGE TANK

17552-MA1-000

$10.26

16

CLIP, AIR HOSE (16)

18534-634-670

$5.76

17

COLLAR, TAILLIGHT

33714-KG1-000

Unavailable

18

LOCK, FILLER LID

37220-439-007

$54.29

19

SPRING, LOCK KEY SETTING

37221-MM2-000

Unavailable

20

BOX, TOOL

83501-MM2-000

Unavailable

21

LID, TOOL BOX

83502-MM2-000

Unavailable

22

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

24

BOLT, SPECIAL (6X35) (NOT AVAILABLE)

90128-MM2-000

Unavailable

25

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

26

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

27

SCREW, PAN (4X25)

93500-04025-0G

$1.49

28

NUT, CAP (6MM)

94021-06070-0S

$1.62

29

CLIP, TUBE (A16)

95002-01160

$4.05

30

CLIP, TUBE (D12)

95002-41050-00

$1.85

31

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

31

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

32

BOLT, FLANGE (6X14) This part replaces 95700-06014-07.

95701-06014-07

$1.49

32

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
