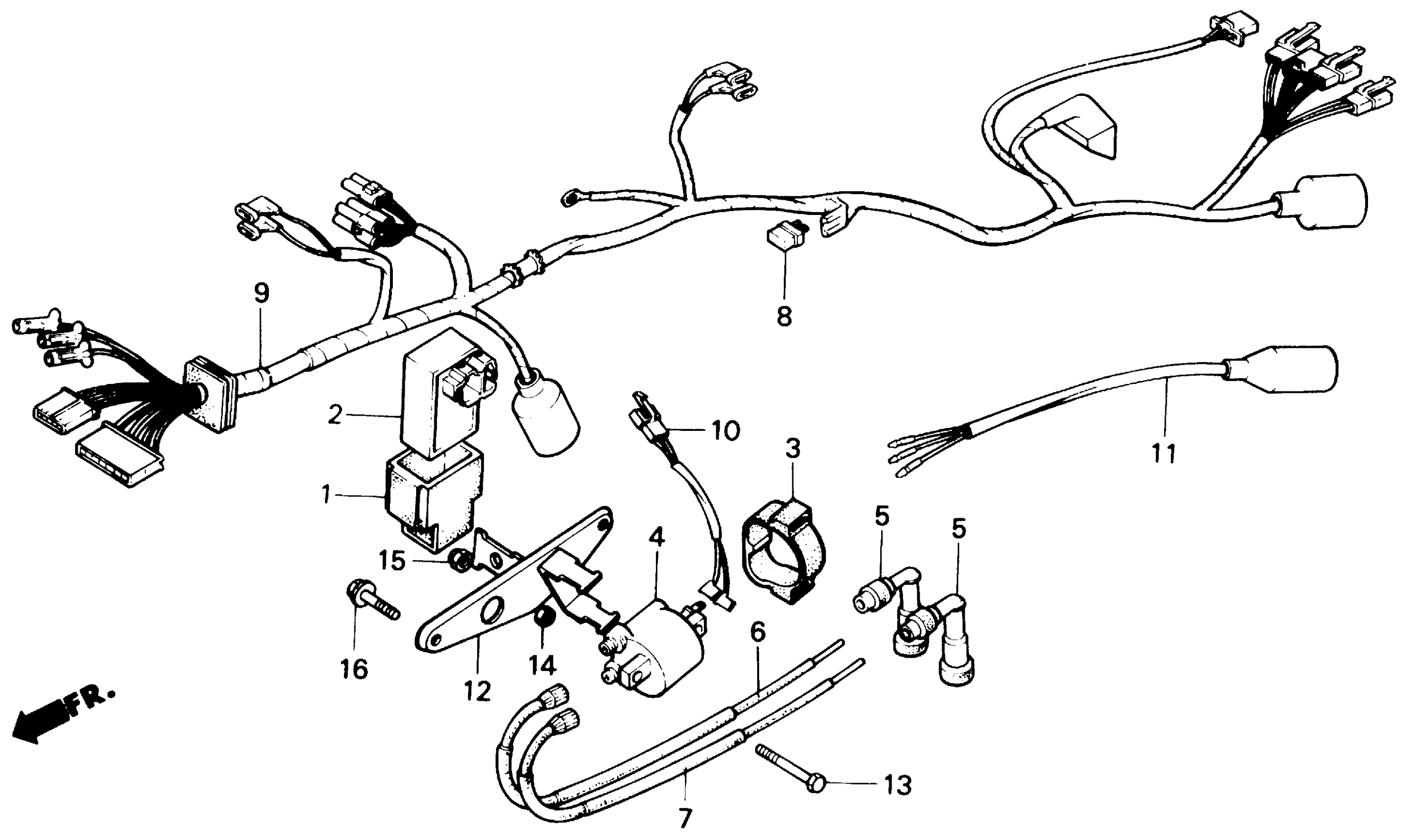

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 WIRE HARNESS Diagram

#

Description
Price

1

RUBBER, IGNITION CONTROL MODULE

30401-MM2-000

Unavailable

2

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE) This part replaces 30410-MM2-000.

30410-MM2-010

Unavailable

4

COIL COMP,IGN | Use up to Frame SN GM004932 This part replaces 30510-ML4-003.

30510-ZG8-003

$73.36

4

COIL COMP,IGN This part replaces 30510-ML4-013.

30510-ZG8-003

$73.36

4

COIL COMP,IGN This part replaces 30510-ML4-023.

30510-ZG8-003

$73.36

5

CAP ASSY. This part replaces 30700-KR3-670.

30700-KR3-671

$19.37

5

CAP ASSY. This part replaces 30700-MM2-000.

30700-KR3-671

$19.37

6

CORD COMP.H/T This part replaces 30751-MM2-003.

30750-MM2-P00

Unavailable

7

CORD COMP.H/T This part replaces 30752-MM2-003.

30750-MM2-P00

Unavailable

8

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

8

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

9

WIRE HARNESS (NOT AVAILABLE)

32100-MM2-000

Unavailable

10

SUB-WIRE HARNESS, IGNITION

32101-ML4-000

Unavailable

11

SUB-CABLE, TAILLIGHT

32101-MM2-000

Unavailable

12

PLATE, ELECTRIC (NOT AVAILABLE)

50352-MM2-000

Unavailable

13

BOLT, HEX. (5X40)

92200-05040-0A

Unavailable

14

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

14

NUT, HEX. (5MM)

94001-05000-0S

$2.74

14

NUT, HEX. (5MM) This part replaces 94001-05200-0S.

94001-05000-0S

$2.74

14

NUT, HEX. (5MM) This part replaces 94031-05000.

94001-05000-0S

$2.74

15

NUT, CAP (5MM)

94021-05000-0S

$1.49

16

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

16

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
