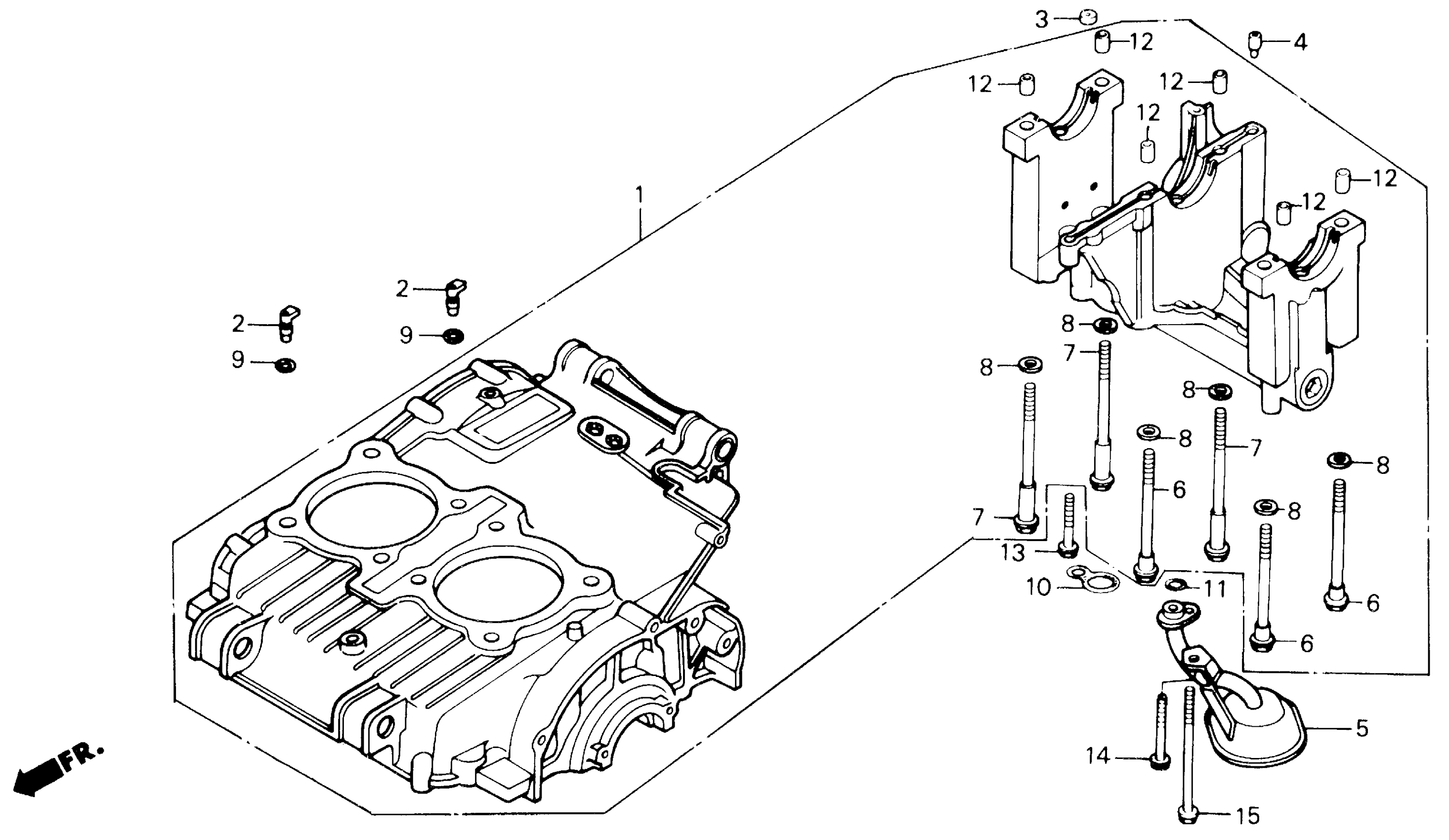

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 UPPER CRANKCASE SET Diagram

CRANKCASE SET (UPPER) (NOT AVAILABLE)

11000-MM2-670

Unavailable

JET, OIL (NOT AVAILABLE)

11146-MC0-000

Unavailable

ORIFICE (2MM) (NOT AVAILABLE)

11901-413-000

Unavailable

ORIFICE, OIL CONTROL (NOT AVAILABLE)

12902-413-000

Unavailable

STRAINER, OIL

15141-ML4-610

Unavailable

BOLT, FLANGE (10X97)

90002-ML4-610

Unavailable

BOLT, FLANGE (10X124)

90009-ML4-610

Unavailable

WASHER, PLAIN (10MM)

90405-ML4-610

Unavailable

O-RING (3.6X1.4) (NOT AVAILABLE)

91301-MC0-000

Unavailable

O-RING (24X1.5)

91307-413-005

Unavailable

O-RING (17.0X2.5) (ARAI)

91333-KE5-003

$2.13

O-RING (17.0X2.5) (ARAI) This part replaces 91333-567-010.

91333-KE5-003

$2.13

PIN A, DOWEL (12X20)

94301-12200

$2.29

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

BOLT, FLANGE (6X115) This part replaces 95700-06115-00.

95701-06115-00

$3.09

BOLT, FLANGE (6X115)

95701-06115-00

$3.09
