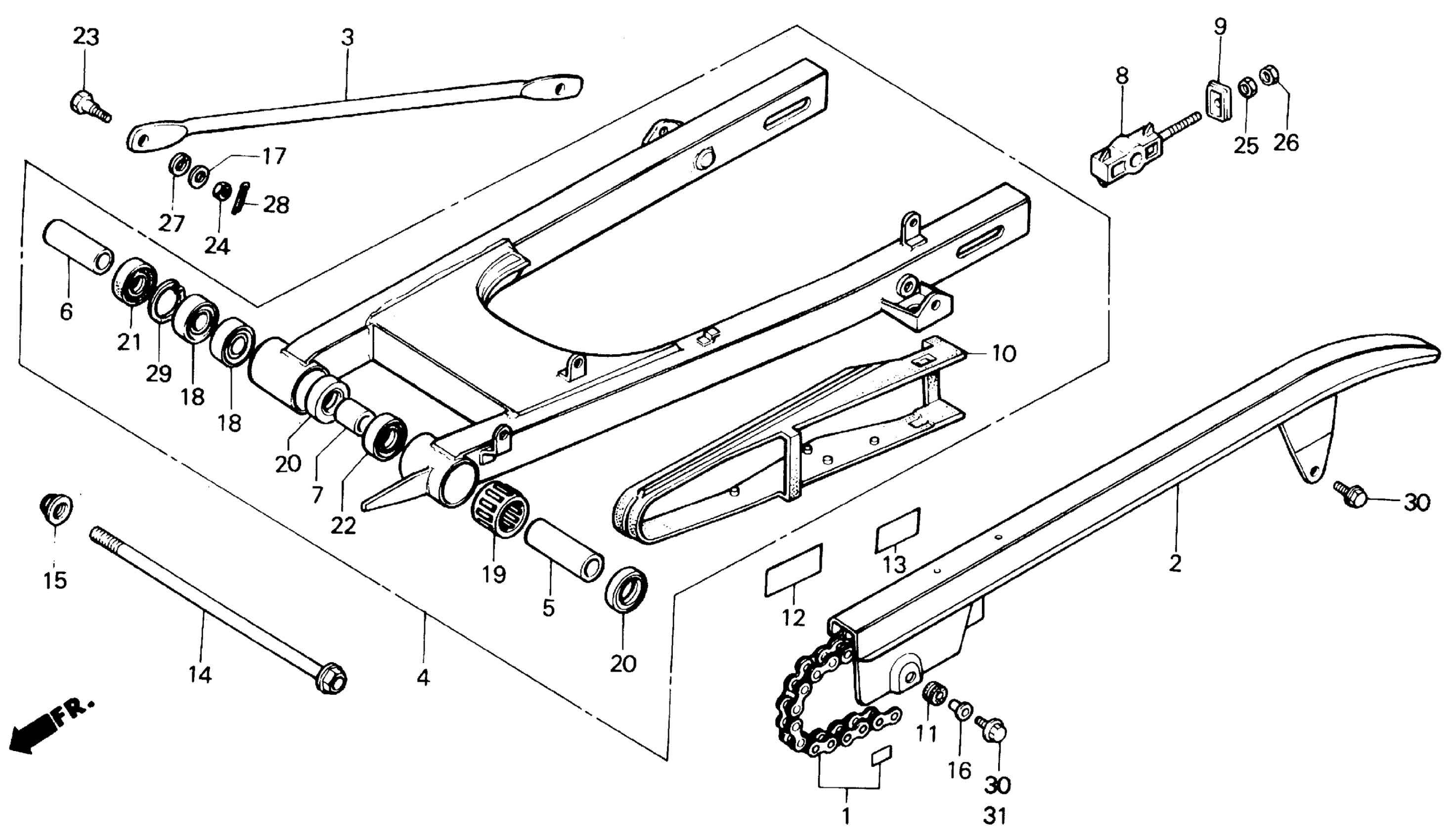

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (DID525V-112L) (DAIDO)

405A3-MM2-671

Unavailable

1

CHAIN SET, DRIVE (RK525SMOX-112L) (TAKASAGO) (NOT AVAILABLE)

405A3-MM2-672

Unavailable

2

CASE, DRIVE CHAIN This part replaces 40500-MM2-000.

40500-MM2-770

Unavailable

2

CASE, DRIVE CHAIN

40500-MM2-770

Unavailable

3

ARM, RR. BRAKE STOPPER | Use from Frame SN GM009699

43431-413-010

$14.98

3

ARM, RR. BRAKE STOPPER | Use up to Frame SN GM009698 This part replaces 43431-413-960ZC.

43431-413-010

$14.98

4

SWINGARM ASSY., RR. This part replaces 52100-MM2-670.

52100-MM2-680

Unavailable

5

COLLAR A, SWINGARM This part replaces 52101-MM2-670.

52101-MM2-680

Unavailable

6

COLLAR C, SWINGARM PIVOT

52103-MM2-670

Unavailable

7

COLLAR B, SWINGARM PIVOT

52105-MM2-670

Unavailable

8

COLLAR, CHAIN TENSIONER

52120-KG4-000

Unavailable

9

PLATE, CHAIN TENSIONER (NOT AVAILABLE)

52121-KG4-000

Unavailable

10

SLIDER, CHAIN (NOT AVAILABLE) This part replaces 52170-MM2-670.

52170-MM2-770

Unavailable

11

GROMMET | Use from Frame SN GM002174

83551-MB9-000

$2.44

12

MARK, TIRE CAUTION

87505-MM2-670

Unavailable

13

MARK This part replaces 87507-MK4-600.

87507-MK4-601

Unavailable

14

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-MM2-670

Unavailable

15

NUT, U (14MM)

90305-GE8-003

$3.86

15

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

16

WASHER (6X20) | Use from Frame SN GM002174

90502-VA4-640

$3.23

17

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

17

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

18

BEARING, RADIAL BALL (6202)

91054-MM2-671

Unavailable

19

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$36.85

19

BEARING, NEEDLE

91071-MJ0-004

$36.85

20

OIL SEAL (22X31X5) (ARAI) This part replaces 91202-402-003.

91205-965-003

$5.80

20

OIL SEAL (22X31X5) (ARAI) This part replaces 91202-402-005.

91205-965-003

$5.80

20

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

21

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.46

21

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.46

22

DUST SEAL (22X29X4)

91283-ML7-003

$5.92

23

BOLT A, BRAKE STOPPER ARM

92812-20000

Unavailable

24

NUT, HEX. (8MM)

94001-08000-0S

$1.49

25

NUT, HEX. (8MM)

94030-08000

$1.49

26

NUT, HEX. (8MM)

94031-08000

$1.49

27

WASHER, SPRING (8MM)

94111-10000

$1.49

28

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

28

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

28

PIN, COTTER (2.0X22)

94201-20220

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

28

PIN, COTTER (2.0X35)

94201-20350

$1.49

28

PIN, COTTER (2.0X22)

94201-29220

$1.49

29

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

30

BOLT, FLANGE (6X8) | Use up to Frame SN GM002173 This part replaces 96000-06008-02.

96001-06008-02

$1.54

30

BOLT, FLANGE (6X8) | Use from Frame SN GM002174 This part replaces 96000-06008-02.

96001-06008-02

$1.54

30

BOLT, FLANGE (6X8) | Use up to Frame SN GM002173

96001-06008-02

$1.54

30

BOLT, FLANGE (6X8) | Use from Frame SN GM002174

96001-06008-02

$1.54

31

BOLT, FLANGE (6X14) | Use from Frame SN GM002174 This part replaces 96000-06014-02.

96001-06014-02

$1.49

31

BOLT, FLANGE (6X14) | Use from Frame SN GM002174

96001-06014-02

$1.49
