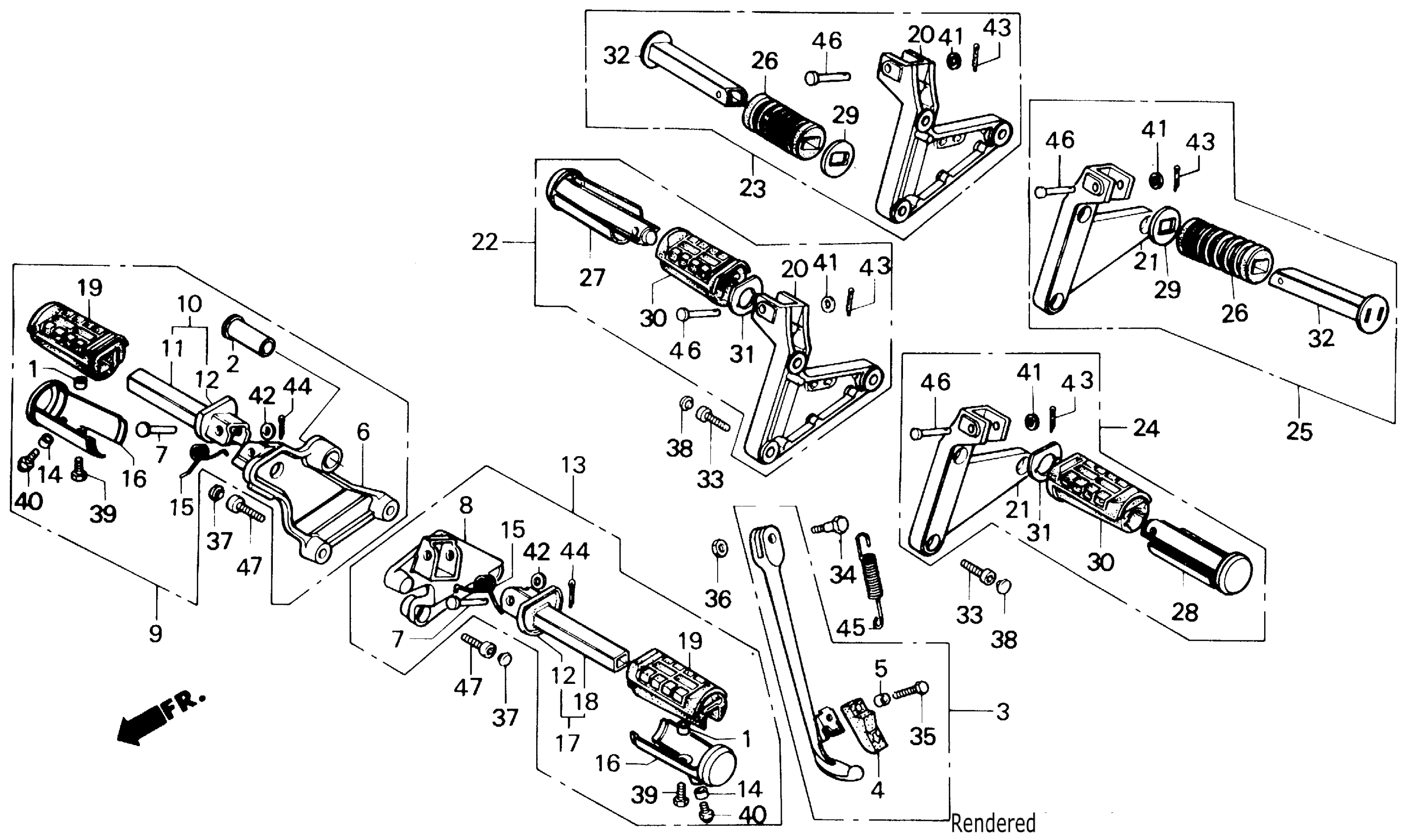

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 STEP Diagram

#

Description
Price

1

COLLAR, CHAIN CASE

40515-413-000

$2.92

2

BUSH A, RR. BRAKE PIVOT

46535-MM2-003

Unavailable

3

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-MM2-000

Unavailable

4

RUBBER, STAND

50548-356-700

$10.50

5

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

6

BRACKET ASSY., R. STEP (NOT AVAILABLE)

50601-MM2-000

Unavailable

7

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

7

PIN, STEP BAR JOINT

50603-033-010

$3.30

8

BRACKET, L. STEP (NOT AVAILABLE)

50605-MM2-000

Unavailable

9

STEP ASSY., R. MAIN (NOT AVAILABLE)

50610-MM2-000

Unavailable

10

BAR, R. STEP (NOT AVAILABLE)

50612-MM2-000

Unavailable

13

STEP ASSY., L. MAIN (NOT AVAILABLE)

50615-MM2-000

Unavailable

14

COLLAR, STEP (NOT AVAILABLE)

50616-MM2-000

Unavailable

15

SPRING, STEP RETURN

50617-195-000

Unavailable

16

STOPPER, STEP RUBBER

50619-MK7-000

Unavailable

17

BAR, L. STEP (COO) This part replaces 50642-MK7-000.

50642-MFR-305

$16.18

17

BAR, L. STEP (COO) This part replaces 50642-MM8-000.

50642-MFR-305

$16.18

19

RUBBER, MAIN STEP (COO) This part replaces 50661-MK7-000.

50661-MFR-305

$9.19

20

BRACKET, R. PILLION STEP (NOT AVAILABLE)

50680-MM2-000

Unavailable

21

BRACKET, L. PILLION STEP

50690-MM2-000

Unavailable

22

STEP ASSY., R. PILLION (NOT AVAILABLE)

50700-MM2-000

Unavailable

24

STEP ASSY., L. PILLION

50705-MM2-000

Unavailable

27

BAR, R. PILLION STEP

50711-MK7-000

$29.11

28

BAR, L. PILLION STEP

50712-MK7-000

Unavailable

30

RUBBER, PILLION STEP

50713-MK7-000

Unavailable

31

WASHER, PILLION STEP

50714-MK7-000

$5.05

33

BOLT, SOCKET (8X28)

90105-MA6-750

$5.43

34

SCREW, SIDE STAND PIVOT

90108-KG0-000

$7.96

34

SCREW, SIDE STAND PIVOT This part replaces 90108-KR3-000.

90108-KG0-000

$7.96

35

BOLT, SIDE STAND RUBBER

90115-MB0-000

Unavailable

36

NUT, U (10MM)

90304-GE8-003

$3.67

37

CAP, SOCKET BOLT (8MM) This part replaces 91455-MB0-000.

91455-MB0-010

$3.77

37

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

38

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$4.15

39

BOLT, HEX. (6X16) This part replaces 92000-06016-0B.

92101-06016-0B

$1.49

39

BOLT, HEX. (6X16)

92101-06016-0B

$1.49

40

BOLT, CAP (8X16) This part replaces 92500-08016-0A.

92501-08016-0A

$2.61

40

BOLT, CAP (8X16)

92501-08016-0A

$2.61

41

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

41

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

41

WASHER, PLAIN (6MM)

94101-06800

$1.49

42

WASHER, PLAIN (8MM)

94101-08000

$1.49

43

PIN, COTTER (1.6X10)

94201-16100

$1.49

44

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

44

PIN, COTTER (1.6X25)

94201-16250

$1.49

45

SPRING D, SIDE STAND

95014-72402

$2.92

46

PIN C, PILLION FOOTPEG

95015-83000

$2.41

47

BOLT, SOCKET (8X25)

96600-08025-00

$2.02

47

BOLT, SOCKET (8X25) This part replaces 96700-08025-00.

96600-08025-00

$2.02
