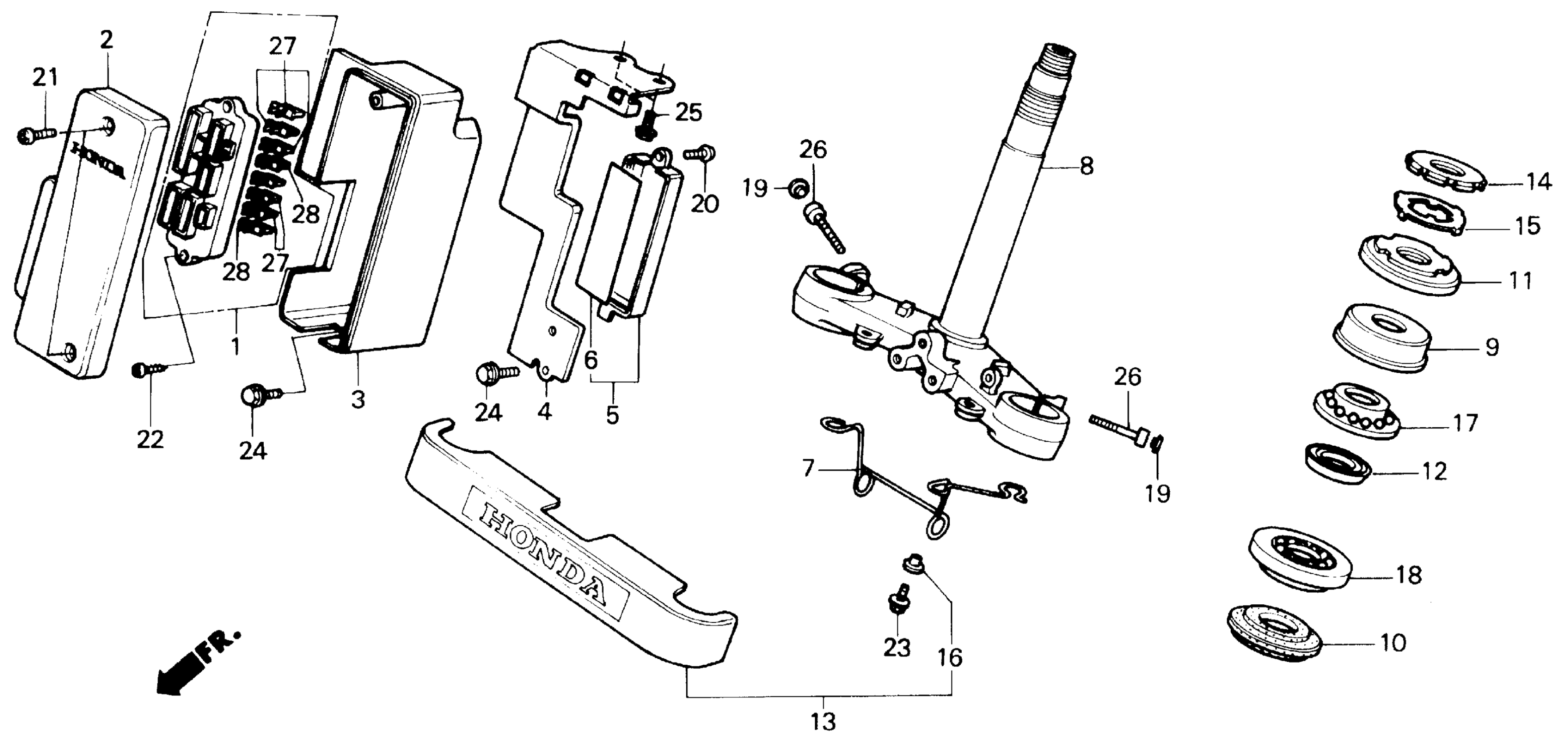

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 STEERING STEM Diagram

BOX ASSY., JOINT (NOT AVAILABLE)

32450-MM2-000

Unavailable

COVER, JOINT BOX (NOT AVAILABLE)

32451-MM2-000

Unavailable

CASE, JOINT BOX (NOT AVAILABLE)

32452-MM2-000

Unavailable

STAY, JOINT BOX

32453-MM2-000

Unavailable

COVER, FUSE

38201-MM2-670

Unavailable

LABEL, FUSE (NOT AVAILABLE)

38215-MM2-670

Unavailable

CLAMP, BRAKE HOSE

45466-MM2-000

Unavailable

STEM, STEERING (NOT AVAILABLE)

53200-MM2-670

Unavailable

DUST SEAL, STEERING HEAD

53213-MB4-771

$12.13

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD (UPPER)

53220-422-000

$32.73

HOLDER, GREASE

53223-371-010

Unavailable

COVER, FR.

61401-MM2-000

Unavailable

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

BEARING, HEAD PIPE (UPPER) This part replaces 91015-MB4-771.

91015-KT8-005

$36.57

BEARING, HEAD PIPE (UPPER)

91015-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER) This part replaces 91016-MB4-771.

91016-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER)

91016-KT8-005

$36.57

CAP, SOCKET BOLT (10MM)

91456-ME1-670

$3.47

SCREW, PAN (4X12)

93500-04012-0A

$1.49

SCREW, PAN (4X16)

93500-04016-0G

$1.49

SCREW, TAPPING (4X12)

93901-34320

$1.49

BOLT, FLANGE (6X16) This part replaces 95700-06016-07.

95701-06016-07

$1.55

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X14) This part replaces 96000-06014-07.

96001-06014-07

$1.49

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

BOLT, SOCKET (10X25)

96700-10025-17

Unavailable

FUSE, BLADE (10A)

98200-31000

$1.49

FUSE, BLADE (15A)

98200-31500

$1.49
