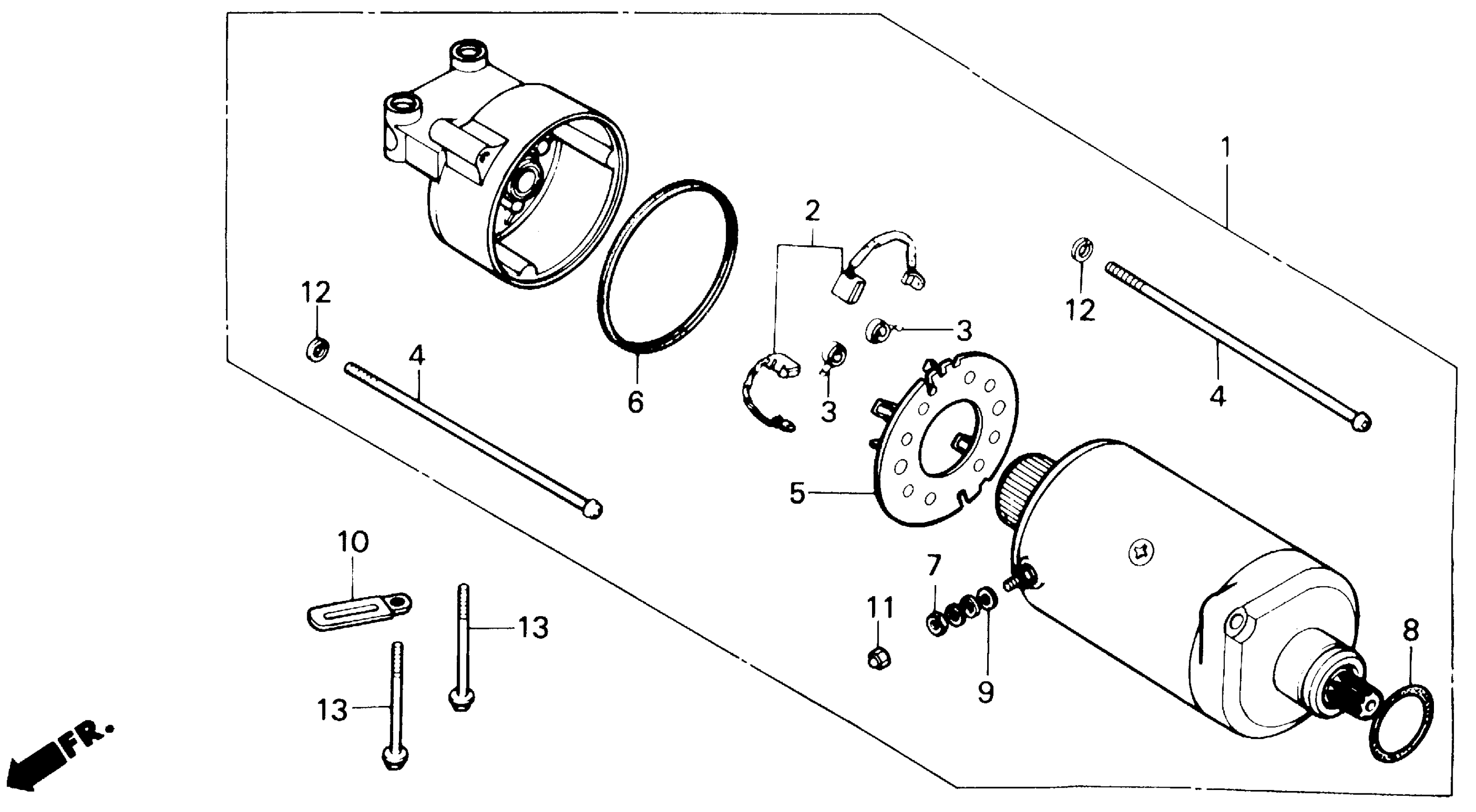

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 STARTER MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY. This part replaces 31200-MM2-008.

31200-MM2-405

Unavailable

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$31.18

2

TERMINAL SET, BRUSH

31201-MG7-000

Unavailable

2

TERMINAL SET, BRUSH This part replaces 31201-MM2-008.

31201-MG7-000

Unavailable

3

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

4

BOLT, SETTING (NOT AVAILABLE)

31205-HA0-000

Unavailable

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-KG7-000.

31206-MM5-008

$19.33

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MM2-008.

31206-MM5-008

$19.33

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

6

RING, SEAL

31207-179-711

$4.22

7

NUT-WASHER (6MM)

90071-MB0-000

$1.97

8

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

8

O-RING (24.4X3.1)

91312-MG7-003

$6.34

9

O-RING

91320-MB0-000

$2.43

10

CLIP, CABLE

91405-671-000

$9.00

11

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

11

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

11

NUT, CAP (6MM)

94021-06020

$1.73

11

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

11

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

12

WASHER, SPRING (5MM)

94111-05000

$1.49

13

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

13

BOLT, FLANGE (6X60)

95701-06060-00

$1.49
