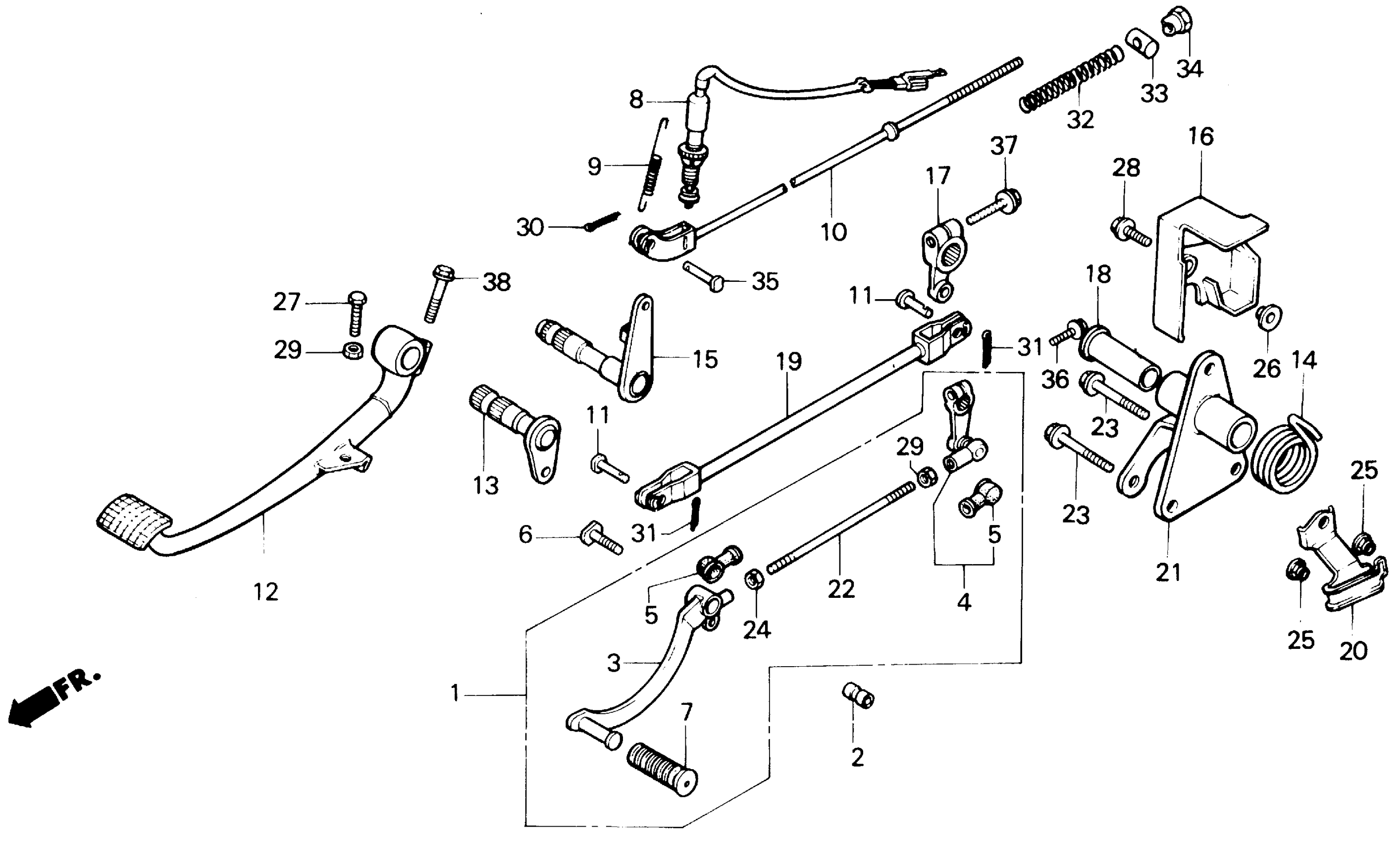

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 PEDAL Diagram

#

Description
Price

1

PEDAL ASSY., CHANGE (NOT AVAILABLE)

24700-MM2-000

Unavailable

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MB0-000

$12.16

3

PEDAL B, GEARSHIFT

24705-MM2-000

Unavailable

4

ARM, CHANGE (NOT AVAILABLE)

24710-MM2-000

Unavailable

5

COVER, DUST

24724-422-000

$6.68

6

BOLT, CHANGE PEDAL PIVOT

24725-MK3-000

Unavailable

7

RUBBER, CHANGE PEDAL

24781-KR3-770

$3.39

8

SWITCH ASSY., RR. STOP This part replaces 35350-KR3-670.

35350-KR3-672

$15.03

8

SWITCH ASSY., RR. STOP This part replaces 35350-KR3-671.

35350-KR3-672

$15.03

9

SPRING, STOP SWITCH This part replaces 35357-MG3-640.

35357-MM9-000

Unavailable

9

SPRING, STOP SWITCH

35357-MM9-000

Unavailable

10

ROD, RR. BRAKE

43451-MM2-670

Unavailable

11

PIN, MIDDLE ROD JOINT

43456-MK7-000

Unavailable

12

PEDAL, BRAKE (NOT AVAILABLE)

46500-MM2-000

Unavailable

13

SPINDLE, RR. BRAKE

46510-MM2-000

Unavailable

14

SPRING, BRAKE RETURN (NOT AVAILABLE)

46514-MM2-000

Unavailable

15

ARM, MIDDLE

46515-MM2-000

Unavailable

16

COVER, RR. BRAKE ARM

46516-MM2-000

Unavailable

17

ARM, RR. BRAKE PEDAL LINK (NOT AVAILABLE)

46520-MK7-000

Unavailable

18

BUSH B, RR. BRAKE PIVOT (NOT AVAILABLE)

46536-MM2-003

Unavailable

19

ROD, RR. BRAKE MIDDLE This part replaces 46540-MM2-670.

46540-MM2-671

Unavailable

19

ROD, RR. BRAKE MIDDLE

46540-MM2-671

Unavailable

20

CLAMP, DRAIN TUBE

50324-MM2-000

Unavailable

21

BRACKET ASSY., RR. BRAKE PIVOT

50359-MM2-000

Unavailable

22

BOLT, TIE ROD

90065-MF2-000

Unavailable

23

BOLT, FLANGE (8X65)

90127-KC1-730

Unavailable

23

BOLT, FLANGE (8X65) This part replaces 90127-MM2-000.

90127-KC1-730

Unavailable

24

NUT, GOVERNOR ARM FIXING

90201-700-000

$1.49

25

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

25

NUT, FLANGE (8MM)

90309-428-731

$3.35

26

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

27

BOLT, HEX. (6X20) This part replaces 92000-06020-0B.

92101-06020-0B

Unavailable

27

BOLT, HEX. (6X20) This part replaces 92000-06020-02.

92101-06020-0B

Unavailable

27

BOLT, HEX. (6X20) This part replaces 92018-06020-02.

92101-06020-0B

Unavailable

27

BOLT, HEX. (6X20)

92101-06020-0B

Unavailable

28

SCREW-WASHER (6X15)

93893-06015-07

Unavailable

29

NUT, HEX. (6MM)

94002-06020-0S

$1.49

30

PIN, COTTER (1.6X12)

94201-16120

$1.49

31

PIN, COTTER (2.0X15)

94201-20150

$1.49

32

SPRING A, BRAKE ROD

95014-73100

$1.49

32

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

33

JOINT, BRAKE ARM

95015-32001

$1.49

34

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

35

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

36

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

36

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

37

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

37

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

38

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

38

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
