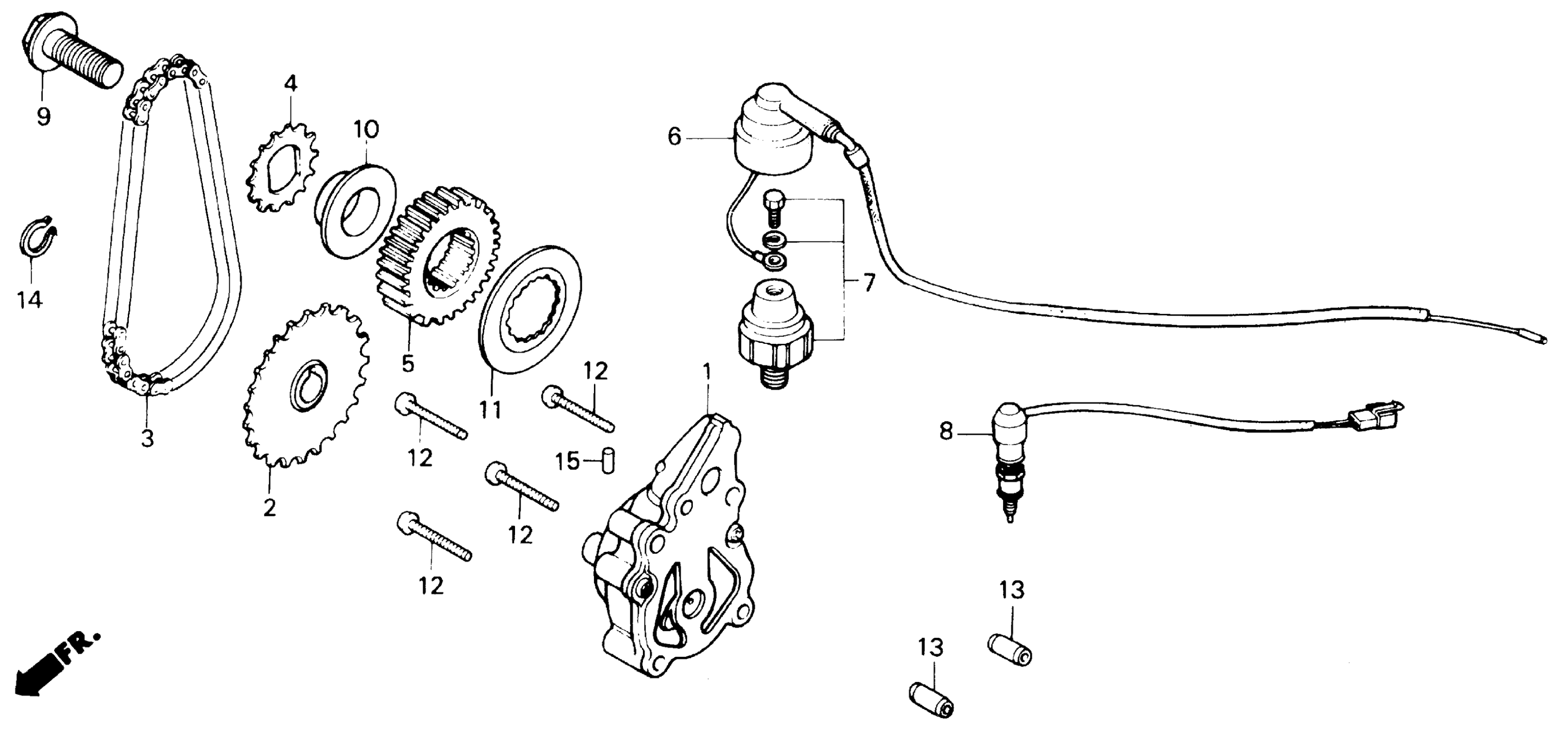

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 OIL PUMP Diagram

PUMP ASSY., OIL This part replaces 15100-ML4-610.

15100-MR4-900

Unavailable

PUMP ASSY., OIL

15100-MR4-900

Unavailable

SPROCKET, OIL PUMP (29T) This part replaces 15110-ML4-610.

15110-ML4-611

Unavailable

SPROCKET, OIL PUMP (29T)

15110-ML4-611

Unavailable

CHAIN, OIL PUMP This part replaces 15140-MC0-003.

15141-KJ9-003

Unavailable

SPROCKET, OIL PUMP DRIVE (17T) (NOT AVAILABLE)

15151-413-000

Unavailable

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

23121-MC0-000

Unavailable

SUB-CABLE, OIL PRESSURE

32111-MM2-000

Unavailable

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

SWITCH, CHANGE | Use up to Engine SN 2002457 This part replaces 35752-MM2-000.

35752-MM2-010

Unavailable

SWITCH ASSY., CHANGE (NOT AVAILABLE) | Use from Engine SN 2002458

35752-MM2-003

Unavailable

BOLT, FLANGE (12X25)

90019-413-000

$5.89

COLLAR, DISTANCE

90406-MC0-000

$9.93

WASHER, SPLINE

90407-413-020

Unavailable

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

SCREW, PAN (6X40)

93500-06040-0A

$1.49

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

CIRCLIP (OUTER) (11MM)

94510-11000

$1.49

ROLLER (4X10)

96220-40100

$1.49
