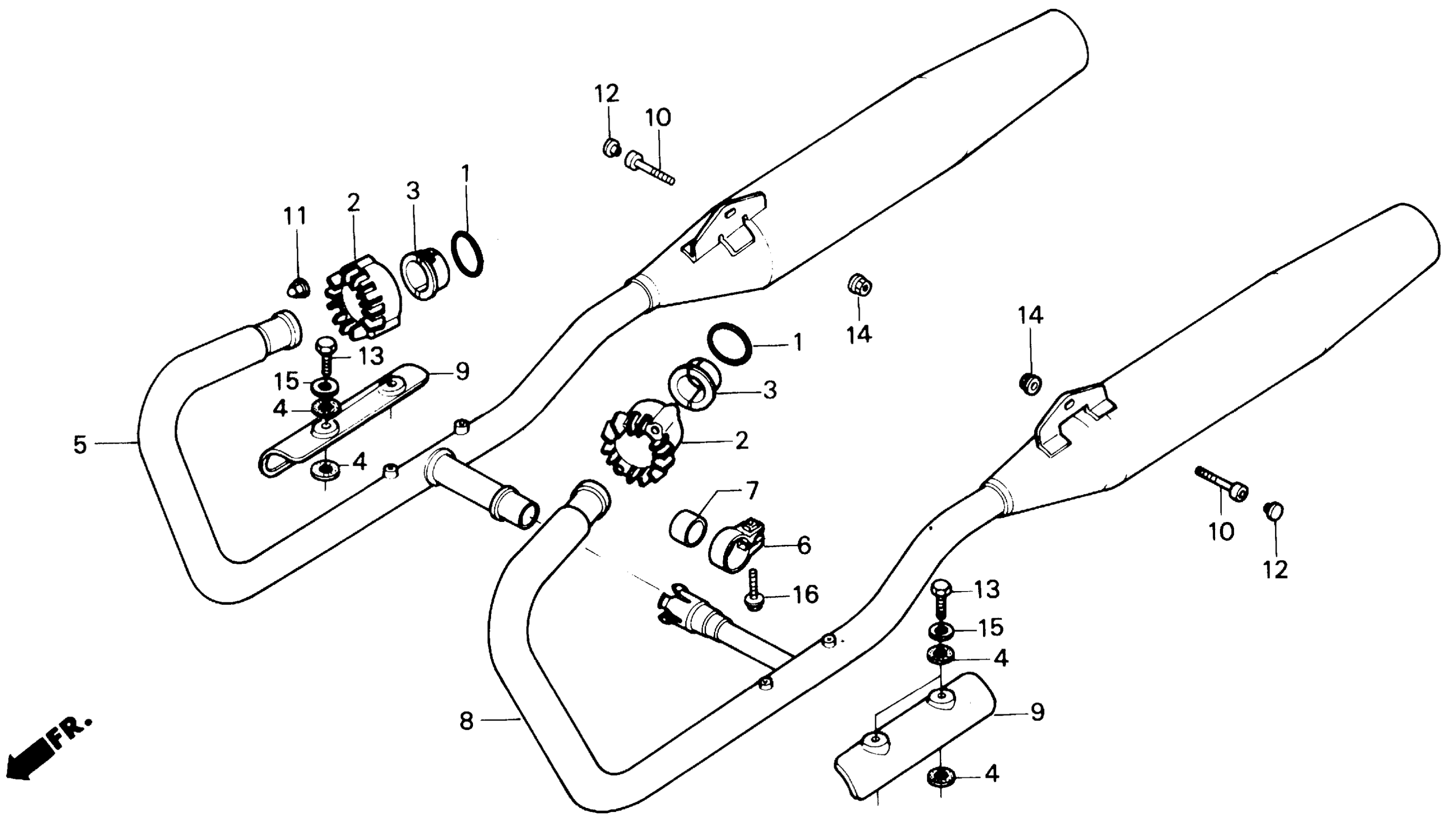

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 MUFFLER Diagram

GASKET, EX. PIPE This part replaces 18212-634-S00.

18212-634-010

Unavailable

GASKET, EX. PIPE This part replaces 18212-634-000.

18212-634-010

Unavailable

GASKET, EX. PIPE

18212-634-010

Unavailable

JOINT, EX. PIPE | Use up to Frame SN GM006574 This part replaces 18231-ML4-000.

18231-413-010

Unavailable

JOINT, EX. PIPE

18231-413-010

Unavailable

COLLAR, EX. PIPE JOINT (NOT AVAILABLE)

18233-ML4-000

Unavailable

MUFFLER, R. EX. (NOT AVAILABLE)

18300-MM2-671

Unavailable

BAND, R. EX.

18373-MB0-003

Unavailable

GASKET, MUFFLER

18391-MB0-891

$17.92

MUFFLER, L. EX. (NOT AVAILABLE)

18400-MM2-671

Unavailable

COVER, EX. PIPE (NOT AVAILABLE)

18415-MM2-000

Unavailable

BOLT, SOCKET (8X20)

90157-MF5-000

$6.31

NUT, CAP (6MM)

90304-438-000

$7.14

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$4.15

BOLT, HEX. (5X12) This part replaces 92000-05012-0B.

92101-05012-0B

$1.49

BOLT, HEX. (5X12)

92101-05012-0B

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

WASHER, PLAIN (5MM)

94101-05200

$1.49

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
