- CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321
LEFT CRANKCASE COVER

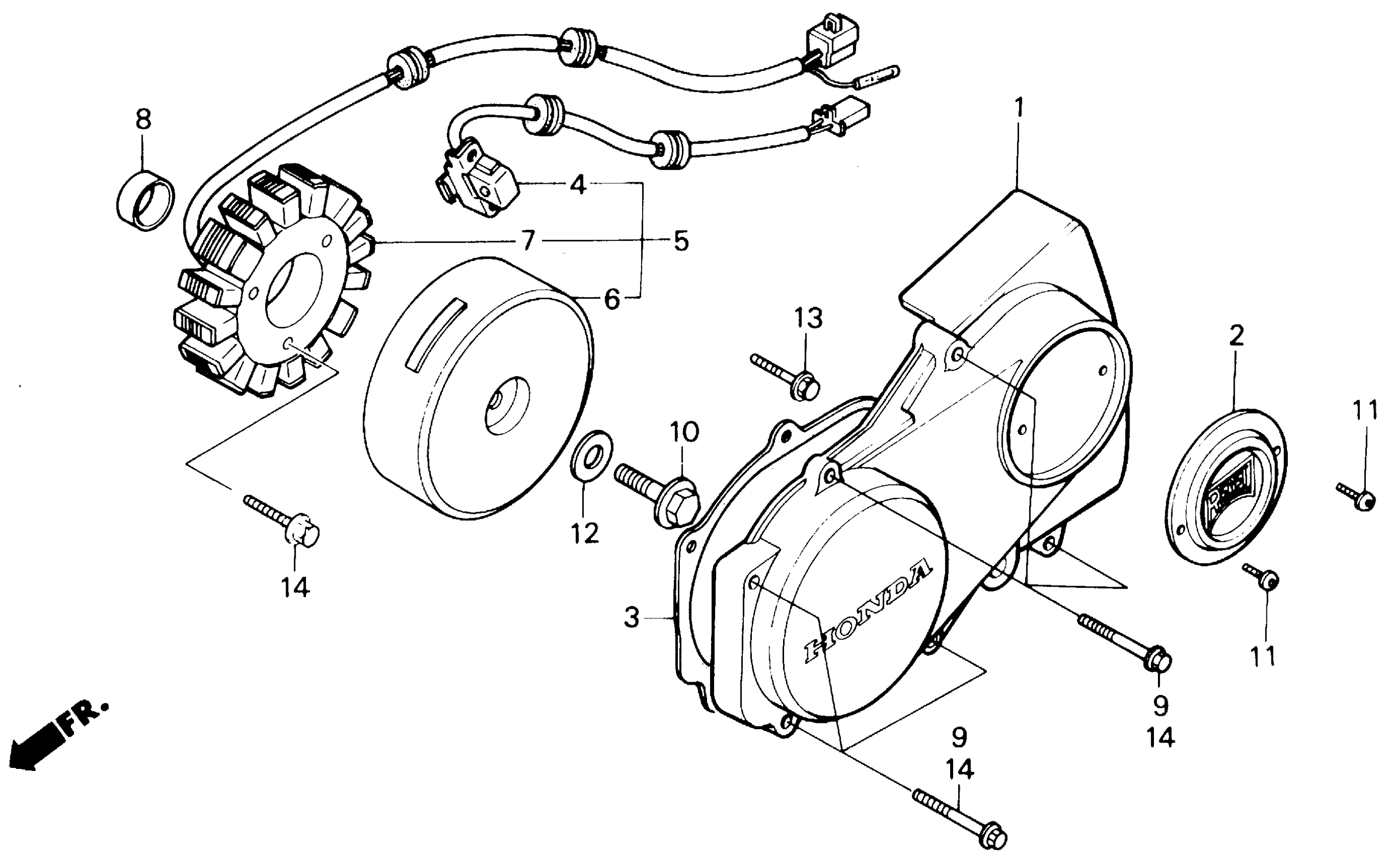

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 LEFT CRANKCASE COVER Diagram
#
Description
Price
1
COVER, L. CRANKCASE (NOT AVAILABLE) | Use up to Engine SN 2003738 This part replaces 11360-MM2-670.
11360-MM2-671
Unavailable
1
COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 2003739
11360-MM2-671
Unavailable
2
PLATE, L. COVER (NOT AVAILABLE)
11365-MM2-670
Unavailable
3
GASKET, L. COVER
11492-ML4-306
Unavailable
3
GASKET, L. COVER This part replaces 11492-ML4-610.
11492-ML4-306
Unavailable
4
GENERATOR ASSY., PULSE (HITACHI) (NOT AVAILABLE) This part replaces 30300-MM2-000.
30300-MM2-005
Unavailable
5
ALTERNATOR ASSY. This part replaces 31100-MM2-000.
31100-MM2-415
Unavailable
6
FLYWHEEL (HITACHI) This part replaces 31110-MM2-000.
31110-MM2-015
Unavailable
6
FLYWHEEL (HITACHI) This part replaces 31110-MM2-005.
31110-MM2-015
Unavailable
6
FLYWHEEL (HITACHI)
31110-MM2-015
Unavailable
7
STATOR (HITACHI) This part replaces 31120-MM2-000.
31120-MM2-415
Unavailable
7
STATOR (HITACHI) This part replaces 31120-MM2-005.
31120-MM2-415
Unavailable
7
STATOR (HITACHI) This part replaces 31120-MM2-015.
31120-MM2-415
Unavailable
7
STATOR (HITACHI) This part replaces 31120-MM2-405.
31120-MM2-415
Unavailable
7
STATOR (HITACHI)
31120-MM2-415
Unavailable
8
COLLAR, STATOR
31210-ML4-610
Unavailable
9
BOLT, FLANGE (6X35) | Use from Engine SN 2010225 This part replaces 90001-MM2-670.
96001-06035-00
$1.49
10
BOLT, FLANGE (12X50)
90025-ML4-610
Unavailable
11
BOLT (3X10)
90090-MM2-670
Unavailable
12
WASHER (12X30X4.5)
90401-KK9-960
Unavailable
14
BOLT, FLANGE (6X35) | Use up to Engine SN 2010224 This part replaces 96000-06035-00.
96001-06035-00
$1.49
14
BOLT, FLANGE (6X35) | Use from Engine SN 2010225 This part replaces 96000-06035-00.
96001-06035-00
$1.49
