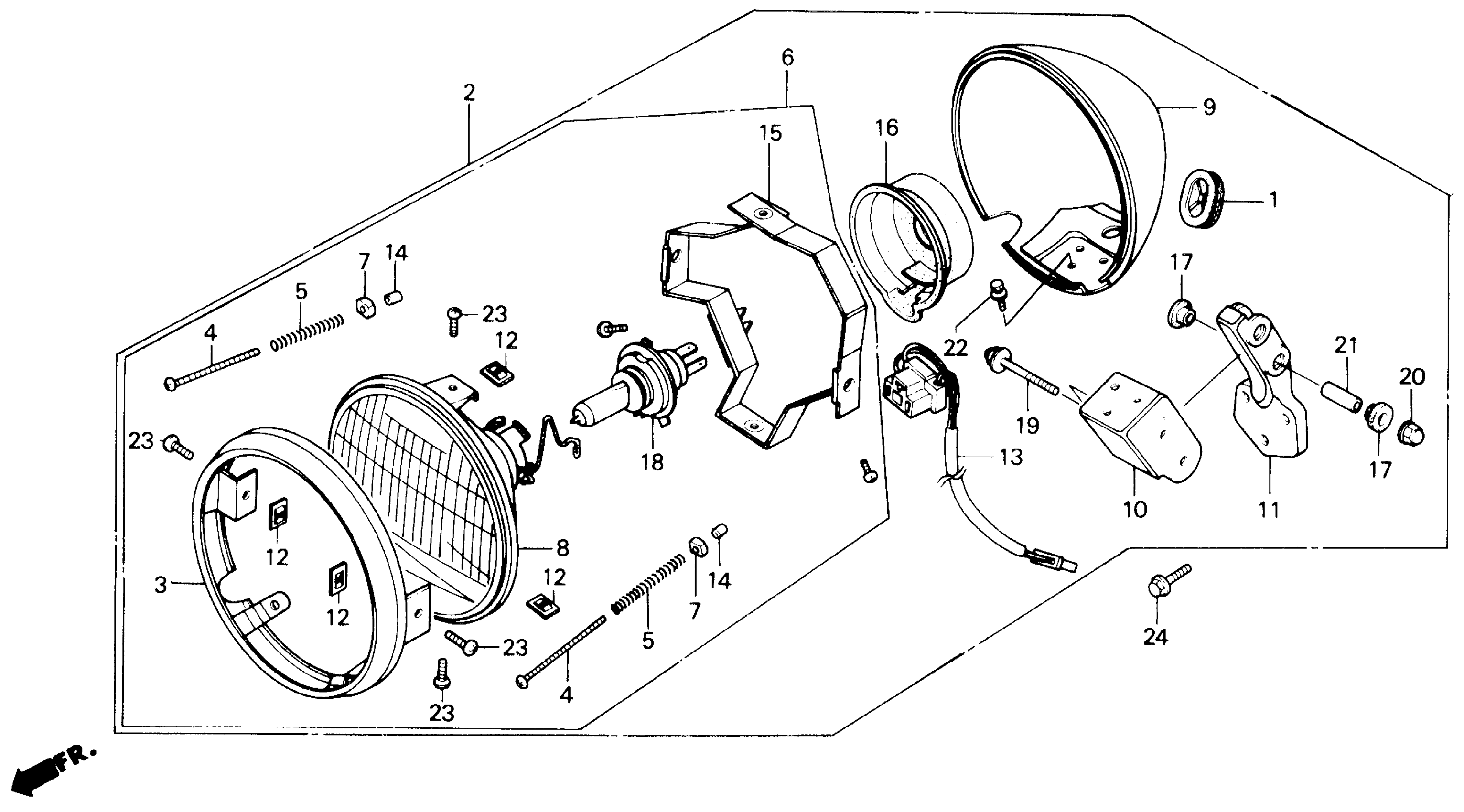

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 HEADLIGHT Diagram

GROMMET, WIRE

32983-MM2-000

Unavailable

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-MM2-671

Unavailable

RIM, HEADLIGHT

33101-MM2-003

Unavailable

SCREW, BEAM ADJ.

33103-MM2-003

$2.74

SPRING, BEAM ADJ.

33108-MM2-003

$3.26

HEADLIGHT SET

33110-MM2-671

Unavailable

NUT, BEAM ADJ.

33118-438-841

$2.23

HEADLIGHT UNIT

33120-MM2-671

Unavailable

CASE, HEADLIGHT (NOT AVAILABLE)

33121-MM2-003

Unavailable

BRACKET A, HEADLIGHT (NOT AVAILABLE)

33123-MM2-003

Unavailable

BRACKET B, HEADLIGHT (NOT AVAILABLE)

33124-MM2-003

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

SOCKET, HEADLIGHT (NOT AVAILABLE)

33130-MM2-671

$13.67

COVER, SCREW

33136-426-830

$1.89

RING, HEADLIGHT

33153-MM2-003

Unavailable

COVER, RUBBER This part replaces 33180-MJ0-000.

33180-MJ0-010

$15.62

COVER, RUBBER

33180-MJ0-010

$15.62

RUBBER, TAILLIGHT SETTING

33718-MM2-000

$4.74

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

BOLT, FLANGE (6X40) This part replaces 90007-MM2-000.

95701-06040-00

$1.80

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

NUT, CAP (6MM)

90201-415-000

$2.05

COLLAR (8X29)

91104-MM2-000

Unavailable

BOLT-WASHER (6X12)

93402-06012-00

$1.69

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

93402-06012-00

$1.69

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

93402-06012-00

$1.69

SCREW, PAN (5X8)

93500-05008-0A

$1.49

SCREW, PAN (5X8) This part replaces 93500-05008-1A.

93500-05008-0A

$1.49

BOLT, FLANGE (8X20)

95701-08020-02

Unavailable

BOLT, FLANGE (8X20) This part replaces 95800-08020-02.

95701-08020-02

Unavailable
