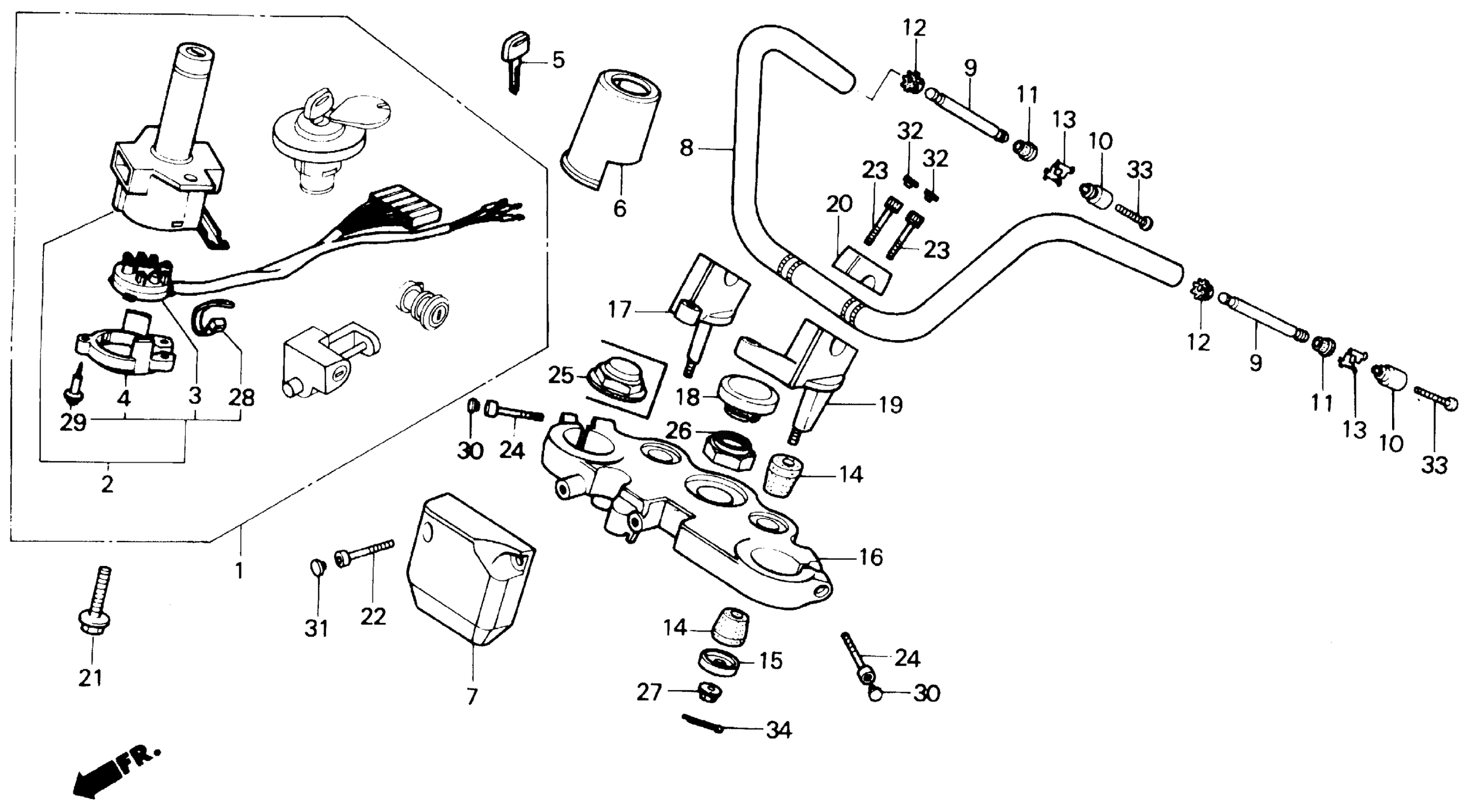

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 HANDLEBAR Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE)

35010-MM2-000

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE)

35100-MM2-000

Unavailable

3

BASE, CONTACT This part replaces 35101-KM9-007.

35101-MM2-000

Unavailable

4

COVER, SWITCH

35105-MG9-681

Unavailable

5

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MM2-000.

35121-KW3-771

$10.10

5

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MM2-000.

35122-KW3-771

$10.10

6

CASE, COMBINATION SWITCH (UPPER) (NOT AVAILABLE)

50321-MM2-000

Unavailable

7

CASE, COMBINATION SWITCH (LOWER) (NOT AVAILABLE)

50322-MM2-000

Unavailable

8

HANDLEBAR (NOT AVAILABLE)

53100-MM2-000

Unavailable

9

WEIGHT, HANDLE (B)

53104-MJ0-000

Unavailable

10

WEIGHT A, HANDLEBAR (NOT AVAILABLE)

53104-MM2-000

Unavailable

11

RUBBER A, HANDLE WEIGHT

53106-KR3-770

$3.92

12

RUBBER, HANDLE WEIGHT (A)

53106-MJ0-000

$3.92

13

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$6.22

14

RUBBER, HANDLEBAR

53133-ML4-010

$2.87

15

WASHER, HANDLE RUBBER

53137-ML4-000

Unavailable

16

BRIDGE, FORK TOP

53230-MM2-670

Unavailable

17

HOLDER, R. (LOWER) (NOT AVAILABLE)

53231-MM2-000

Unavailable

18

CAP, STEERING STEM | Use from Frame SN GM009699

53232-MJ4-670

$13.43

19

HOLDER, L. (LOWER) (NOT AVAILABLE)

53232-MM2-000

Unavailable

20

HOLDER (UPPER)

53235-MM2-000

Unavailable

21

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

22

BOLT, SOCKET (6X10)

90115-MG8-000

Unavailable

23

BOLT, SOCKET (8X35)

90116-443-760

Unavailable

24

BOLT, SOCKET (7X32)

90151-MB1-000

$6.52

25

NUT, STEERING STEM | Use from Frame SN GM009699

90304-MK3-000

$16.34

26

NUT, STEERING STEM | Use up to Frame SN GM009698

90304-MK4-000

$19.56

27

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

27

NUT, FLANGE (8MM)

90309-428-731

$3.35

28

BAND, SELF-LOCK

91058-MG9-681

$2.21

29

SCREW, TAPPING (3X16)

91059-MG9-681

$2.39

30

CAP, SOCKET BOLT (8MM) This part replaces 91455-MB0-000.

91455-MB0-010

$3.77

30

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

31

CAP, SOCKET BOLT (6MM)

91455-MG8-000

Unavailable

32

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$4.15

33

SCREW, OVAL (6X40)

93700-06040-0B

$1.54

34

PIN, COTTER (1.6X25) This part replaces 94201-15150.

94201-16250

$1.49

34

PIN, COTTER (1.6X25) This part replaces 94201-15200.

94201-16250

$1.49

34

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

34

PIN, COTTER (1.6X25) This part replaces 94201-16180.

94201-16250

$1.49

34

PIN, COTTER (1.6X25) This part replaces 94201-16200.

94201-16250

$1.49

34

PIN, COTTER (1.6X25)

94201-16250

$1.49
