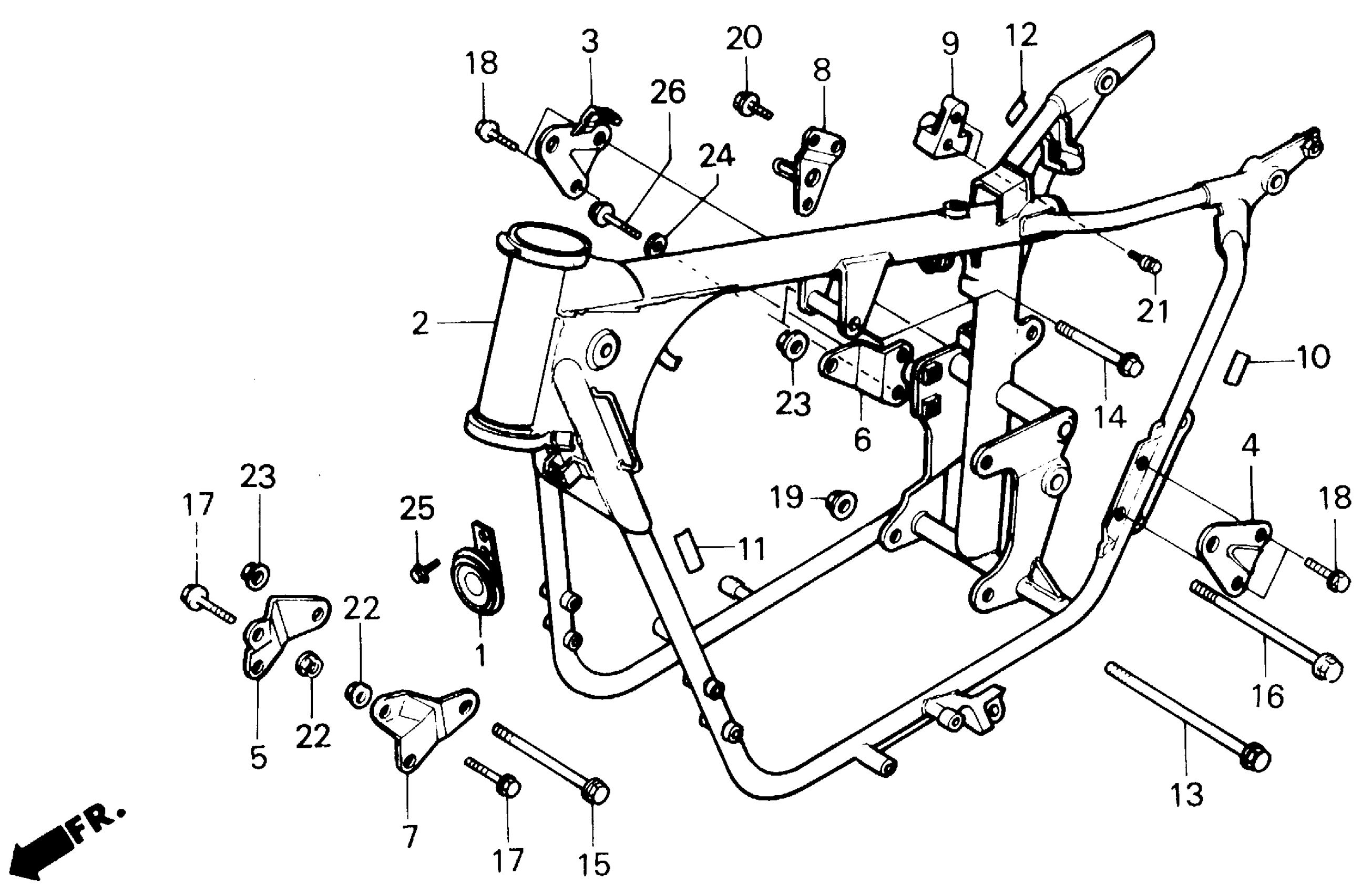

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 FRAME Diagram

#

Description
Price

1

HORN ASSY. (HIGH) This part replaces 38110-KR3-660.

38110-KR3-662

Unavailable

1

HORN ASSY. (HIGH) This part replaces 38110-KR3-661.

38110-KR3-662

Unavailable

1

HORN ASSY. (HIGH)

38110-KR3-662

Unavailable

1

HORN ASSY. (HIGH) This part replaces 38110-KR3-670.

38110-KR3-662

Unavailable

2

FRAME

50100-MM2-000

Unavailable

3

PLATE, R. PIVOT (NOT AVAILABLE)

50341-MM2-000

Unavailable

4

PLATE, L. PIVOT (NOT AVAILABLE)

50351-MM2-000

Unavailable

5

PLATE, FR. ENGINE HANGER (NOT AVAILABLE)

50353-MM2-000

Unavailable

6

STAY, R. RR. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50354-MM2-000

Unavailable

7

PLATE, L. FR. ENGINE HANGER (NOT AVAILABLE)

50355-MM2-000

Unavailable

8

PLATE, R. ENGINE HANGER (UPPER)

50358-MM2-000

Unavailable

9

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

9

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

11

LABEL, HIGH ALTITUDE

87139-463-670

$7.08

12

LABEL, HELMET HOLDER

87511-KR3-670

Unavailable

13

BOLT A, ENGINE HANGER (NOT AVAILABLE)

90103-187-000

Unavailable

14

BOLT, ENGINE HANGER (10X70)

90124-MM2-000

Unavailable

15

BOLT, FLG (12X182) This part replaces 90125-MM2-000.

90125-MM2-680

Unavailable

16

BOLT, ENGINE HANGER (12X165)

90126-MM2-000

Unavailable

17

BOLT, FLANGE (8X65)

90127-KC1-730

Unavailable

17

BOLT, FLANGE (8X65) This part replaces 90127-MM2-000.

90127-KC1-730

Unavailable

18

BOLT, SPECIAL FLANGE (10X22)

90130-MM2-000

Unavailable

19

NUT, FLANGE (10MM)

90308-382-670

$4.07

20

BOLT, CAP (8X12) This part replaces 92500-08012-0A.

92501-08012-0A

$3.05

20

BOLT, CAP (8X12)

92501-08012-0A

$3.05

21

SCREW-WASHER (6X12)

93891-06012-08

$1.49

22

NUT, FLANGE (8MM)

94050-08000

$1.49

23

NUT, FLANGE (12MM)

94050-12000

$1.49

25

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

25

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

26

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

26

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
