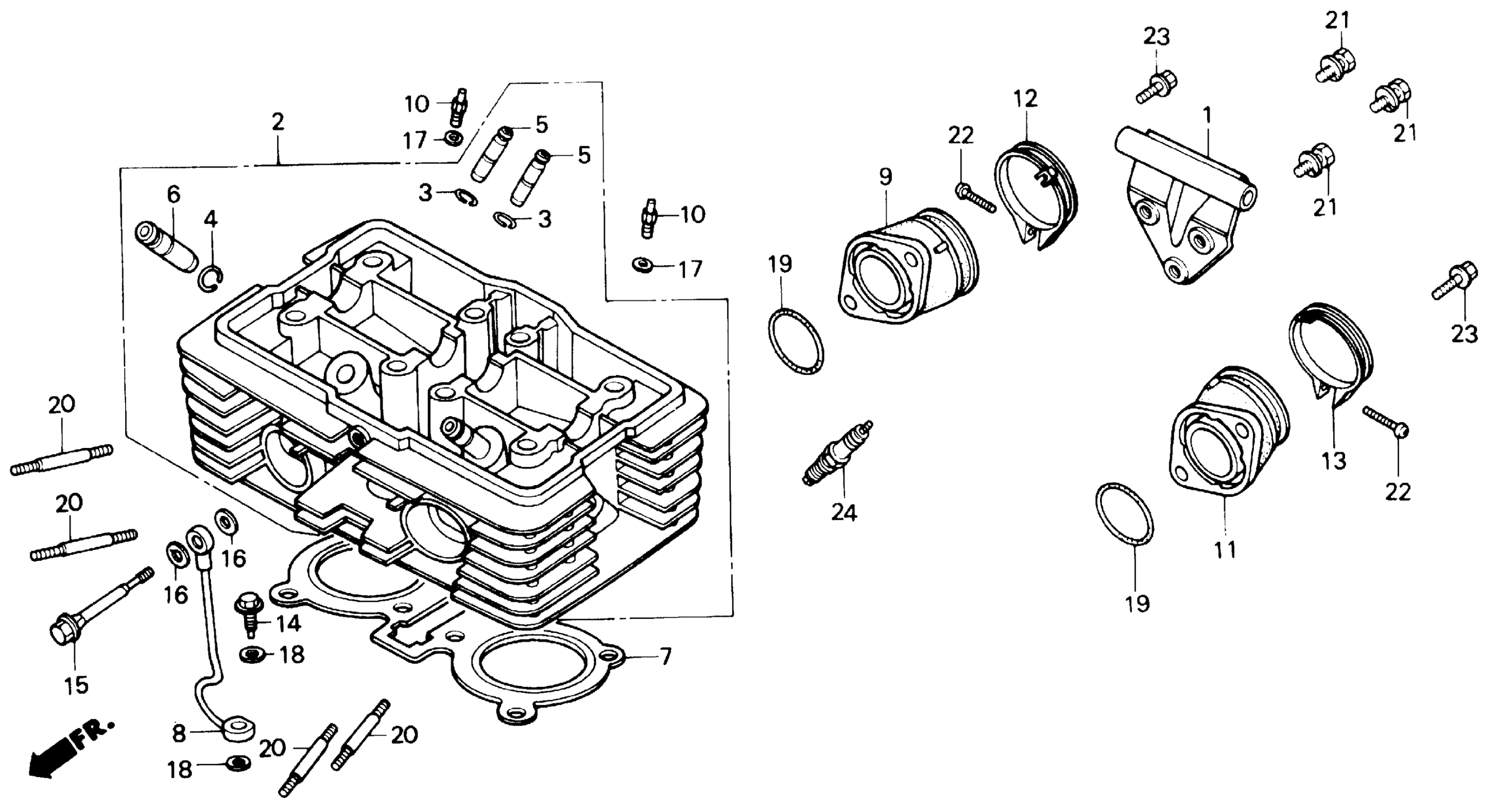

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 CYLINDER HEAD Diagram

#

Description
Price

1

PLATE, ENGINE HANGER

11851-MM2-670

Unavailable

2

CYLINDER HEAD | Use up to Engine SN 2004738

12200-MM2-670

Unavailable

2

CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 2004739

12200-MM2-671

Unavailable

3

CLIP, VALVE GUIDE

12211-ML4-610

Unavailable

4

CLIP, VALVE GUIDE

12211-250-310

$4.39

5

GUIDE, VALVE

12231-ML4-305

Unavailable

6

GUIDE, EX. VALVE (NOT AVAILABLE)

12241-ML4-305

Unavailable

7

GASKET, CYLINDER HEAD | Use up to Engine SN 2007527 This part replaces 12251-ML4-611.

12251-MR4-901

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-ML4-612.

12251-MR4-901

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-ML4-613.

12251-MR4-901

Unavailable

7

GASKET, CYLINDER HEAD

12251-MR4-901

Unavailable

8

PIPE B, OIL

15520-MM2-670

Unavailable

9

INSULATOR, R. CARBURETOR

16211-MM2-670

Unavailable

10

JOINT, BOOSTER | Use from Engine SN 2014116

16214-MB0-000

$4.76

10

JOINT, PB | Use up to Engine SN 2014115

16221-MA6-000

$13.38

11

INSULATOR, L. CARBURETOR

16221-MM2-670

Unavailable

12

BAND, R. INSULATOR | Use up to Engine SN 2003905

16223-KT6-000

Unavailable

12

BAND, R. INSULATOR | Use from Engine SN 2003906

16223-MM2-670

Unavailable

13

BAND, L. INSULATOR

16224-KT6-000

Unavailable

14

BOLT, OIL CONTROL (NOT AVAILABLE) | Use up to Engine SN 2014115

90045-MC0-000

Unavailable

14

BOLT, OIL CONTROL | Use from Engine SN 2014116

90045-MM2-670

Unavailable

15

BOLT, SPECIAL (6MM)

90130-ML4-610

Unavailable

16

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

17

WASHER, SEALING (5MM)

90452-323-000

$1.59

18

WASHER, OIL BOLT (10.2X15X1.4)

90545-MC0-000

$3.39

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

O-RING (40X2.4)

91325-413-830

$8.72

20

BOLT, STUD (6X65) | Use up to Engine SN 2002230

92700-06065-0E

Unavailable

20

BOLT 2, STUD (6X50) | Use from Engine SN 2002231

92900-06050-0E

Unavailable

21

BOLT-WASHER (8X20) This part replaces 93482-08020-07.

93402-08020-07

$1.86

22

SCREW, PAN (5X20)

93500-05020-0G

$1.49

23

BOLT, FLANGE (6X18) This part replaces 96000-06018-07.

96001-06018-07

$1.49

23

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

24

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

24

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

24

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

24

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

24

SPARK PLUG (DPR9EA-9) (NGK)

98069-59916

$2.62

24

SPARK PLUG (X27EPR-U9) (DENSO)

98069-59926

$2.54
