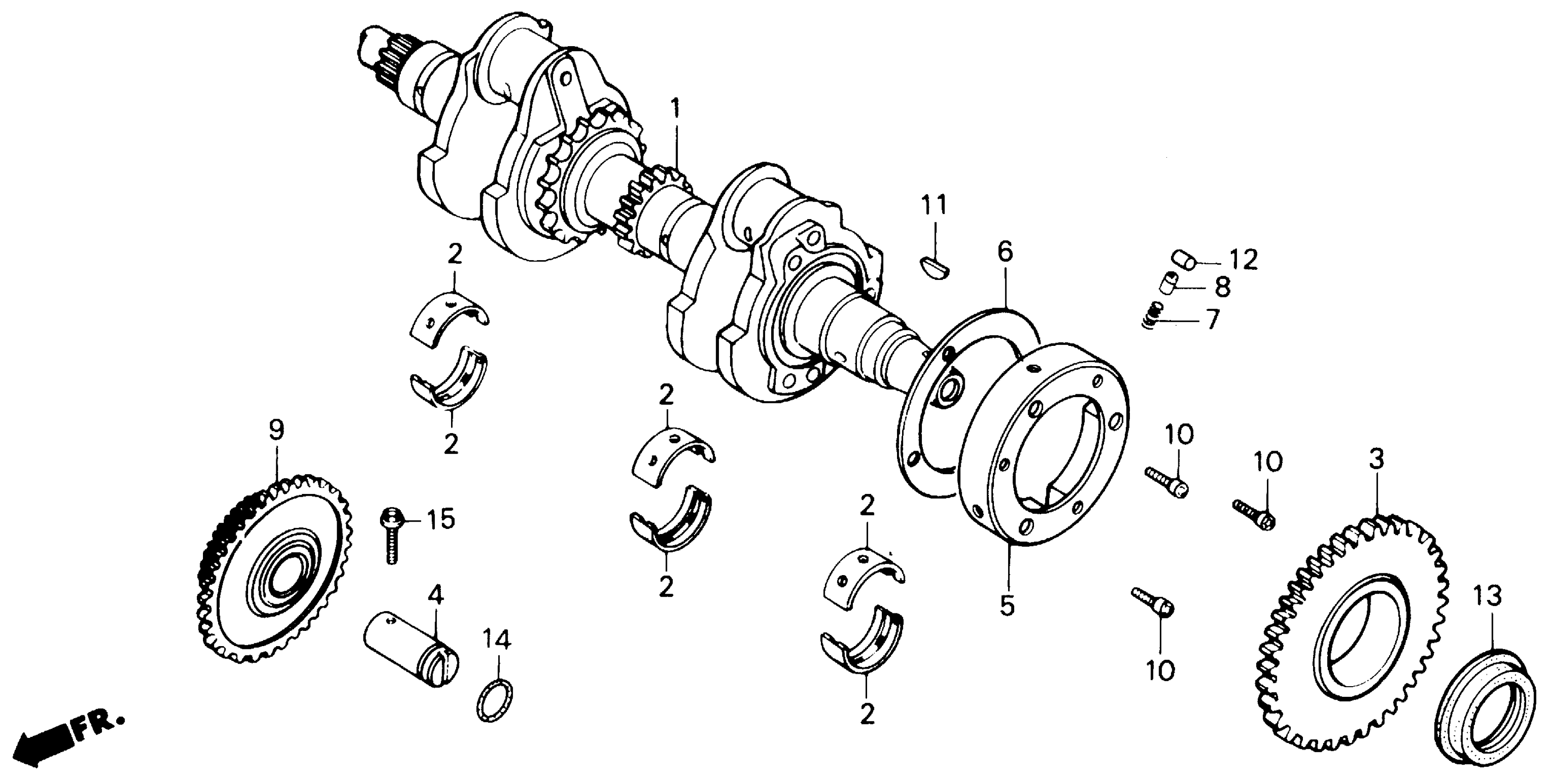

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 CRANKSHAFT Diagram

CRANKSHAFT

13300-ML4-610

Unavailable

BEARING A, MAIN (BLUE) (NIPPON DIA CLEVITE)

13314-MC0-005

Unavailable

BEARING B, MAIN (BLACK) (NIPPON DIA CLEVITE)

13315-MC0-005

Unavailable

BEARING C, MAIN (BROWN) (NIPPON DIA CLEVITE)

13316-MC0-005

Unavailable

BEARING D, MAIN (GREEN) (NIPPON DIA CLEVITE)

13317-MC0-005

Unavailable

BEARING E, MAIN (YELLOW) (NIPPON DIA CLEVITE)

13318-MC0-005

Unavailable

GEAR, STARTING DRIVEN (41T)

28110-ML4-610

Unavailable

SHAFT, STARTING IDLE GEAR (NOT AVAILABLE)

28114-413-780

Unavailable

CLUTCH, STARTING (OUTER) | Use up to Engine SN 2001070 This part replaces 28120-ML4-610.

28120-ML4-611

Unavailable

CLUTCH, STARTING (OUTER)

28120-ML4-611

Unavailable

WASHER (68MM)

28124-ML4-610

Unavailable

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

CAP, STARTER CLUTCH ROLLER SPRING

28126-415-000

$18.84

GEAR, STARTING IDLE (78T/16T) (NOT AVAILABLE)

28130-ML4-610

Unavailable

BOLT, SOCKET (8MM) This part replaces 90010-415-000.

90010-KCJ-690

$4.78

KEY, WOODRUFF

90741-413-000

$2.56

ROLLER (15X12.5)

91101-443-900

Unavailable

OIL SEAL (30X45X8)

91201-323-005

$14.97

O-RING (11.5X2)

91304-216-000

$2.11

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
