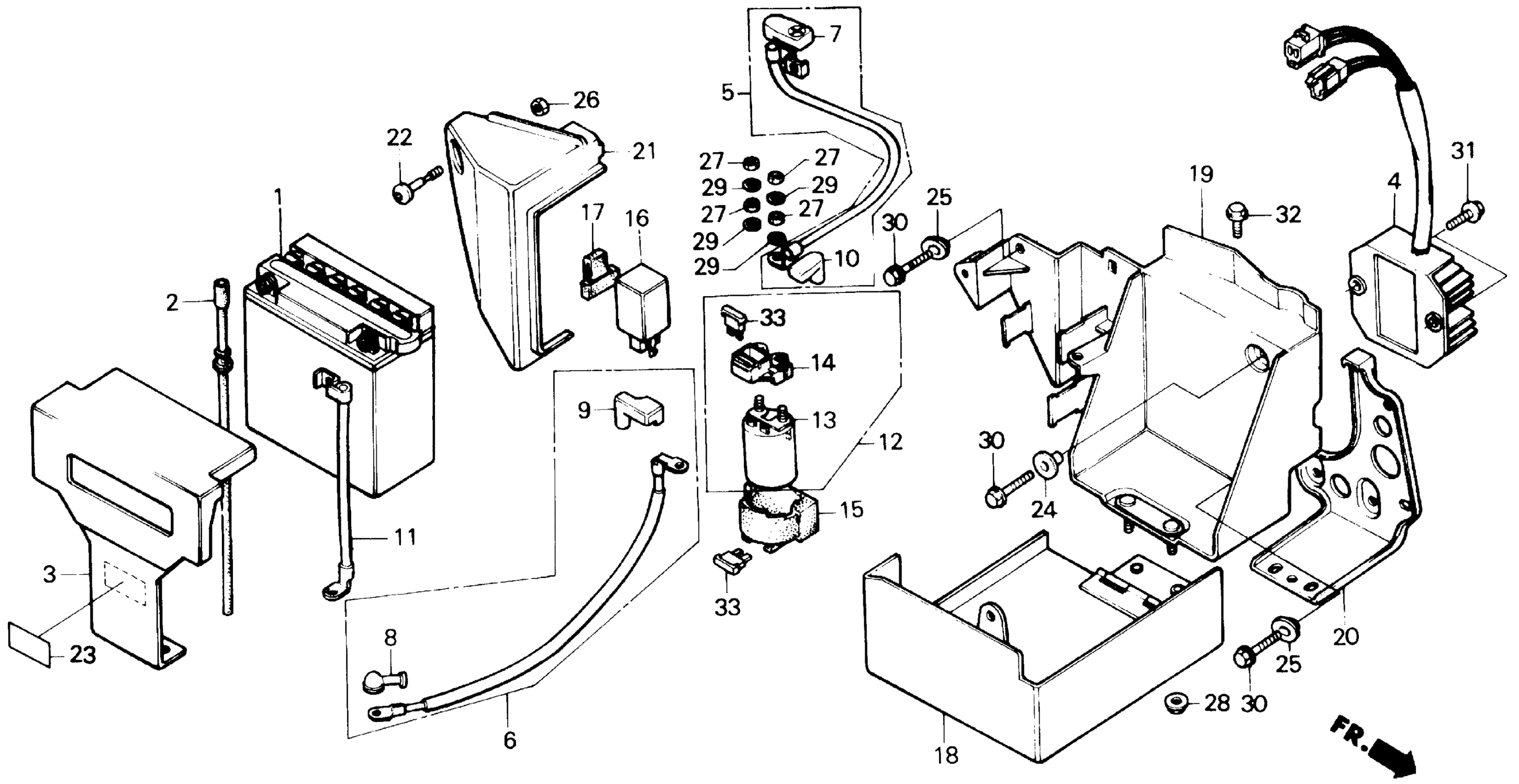

Honda CMX450CA (86) REBEL 450, JPN, VIN# JH2PC170-GM000010 TO JH2PC170-GM012321 BATTERY Diagram

#

Description
Price

1

BATTERY (12V12) This part replaces 31500-413-601.

31500-460-672AH

Unavailable

1

BATTERY (12V12) This part replaces 31500-413-721.

31500-460-672AH

Unavailable

1

BATTERY (12V12) This part replaces 31500-413-771.

31500-460-672AH

Unavailable

1

BATTERY (12V12) This part replaces 31500-413-941.

31500-460-672AH

Unavailable

1

BATTERY (12V12) This part replaces 31500-426-771.

31500-460-672AH

Unavailable

1

BATTERY (12V12) This part replaces 31500-447-771.

31500-460-672AH

Unavailable

1

BATTERY (12V12) This part replaces 31500-460-671.

31500-460-672AH

Unavailable

1

BATTERY (12V12)

31500-MN2-672

Unavailable

1

BATTERY (12V12) This part replaces 31500-413-722.

31500-460-672AH

Unavailable

1

BATTERY (12V12) This part replaces 31500-413-942.

31500-460-672AH

Unavailable

1

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

1

BATTERY (12V12) This part replaces 31500-460-677.

31500-460-672AH

Unavailable

1

BATTERY (12V12) This part replaces 35100-MN2-673.

31500-460-672AH

Unavailable

2

TUBE, BATTERY BREATHER

31502-MK5-405

Unavailable

2

TUBE, BATTERY BREATHER This part replaces 31502-ML7-000.

31502-MK5-405

Unavailable

3

COVER, BATTERY (INNER)

31506-MM2-000

Unavailable

4

RECTIFIER ASSY., REG This part replaces 31600-MM2-000.

31600-MM2-405

Unavailable

5

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-MM2-000

Unavailable

6

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-MM2-000

Unavailable

7

COVER, BATTERY TERMINAL

32411-ML4-000

Unavailable

8

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

8

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

9

COVER A, MAGNETIC SWITCH

32416-MC9-740

Unavailable

10

COVER B, MAGNETIC SWITCH

32417-MM2-000

Unavailable

11

CABLE ASSY., GROUND (NOT AVAILABLE)

32610-MM2-000

Unavailable

12

SWITCH ASSY., STARTER MAGNETIC

35850-KR0-007

$77.64

13

SWITCH, STARTER MAGNETIC

35851-MF5-751

$106.43

14

HOLDER ASSY., FUSE

35855-MF5-751

$35.11

15

RUBBER, SHOCK ABSORBER

35856-MF5-751

$10.03

16

RELAY, TURN SIGNAL (TATEISHI)

38301-MF8-771

$103.03

16

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MF8-773.

38301-KK9-952

$67.94

16

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$67.94

17

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

17

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.77

18

COVER, BATTERY (WOL) (NOT AVAILABLE) This part replaces 50320-MM2-000.

50320-MM2-770

Unavailable

19

TRAY, BATTERY

50325-MM2-000

Unavailable

20

PLATE, BATTERY TRAY

50327-MM2-000

Unavailable

21

COVER, ELECTRIC (NOT AVAILABLE)

83540-MM2-000

Unavailable

22

LATCH, ELECTRIC COVER

83551-MM2-000

Unavailable

23

MARK, BATTERY CAUTION

87506-MM2-670

Unavailable

24

WASHER (6X20)

90512-300-000

$3.08

25

WASHER (6X9)

90513-323-000

$1.84

26

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

26

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94002-06080-0S

$1.49

28

NUT, FLANGE (6MM)

94050-06000

$1.49

29

WASHER, SPRING (6MM)

94111-06800

$1.49

30

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

30

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

31

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

31

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

32

BOLT, FLANGE (6X10) This part replaces 96000-06010-02.

96001-06010-02

$1.54

32

BOLT, FLANGE (6X10)

96001-06010-02

$1.54

33

FUSE, BLADE (20A)

98200-32000

$1.49
