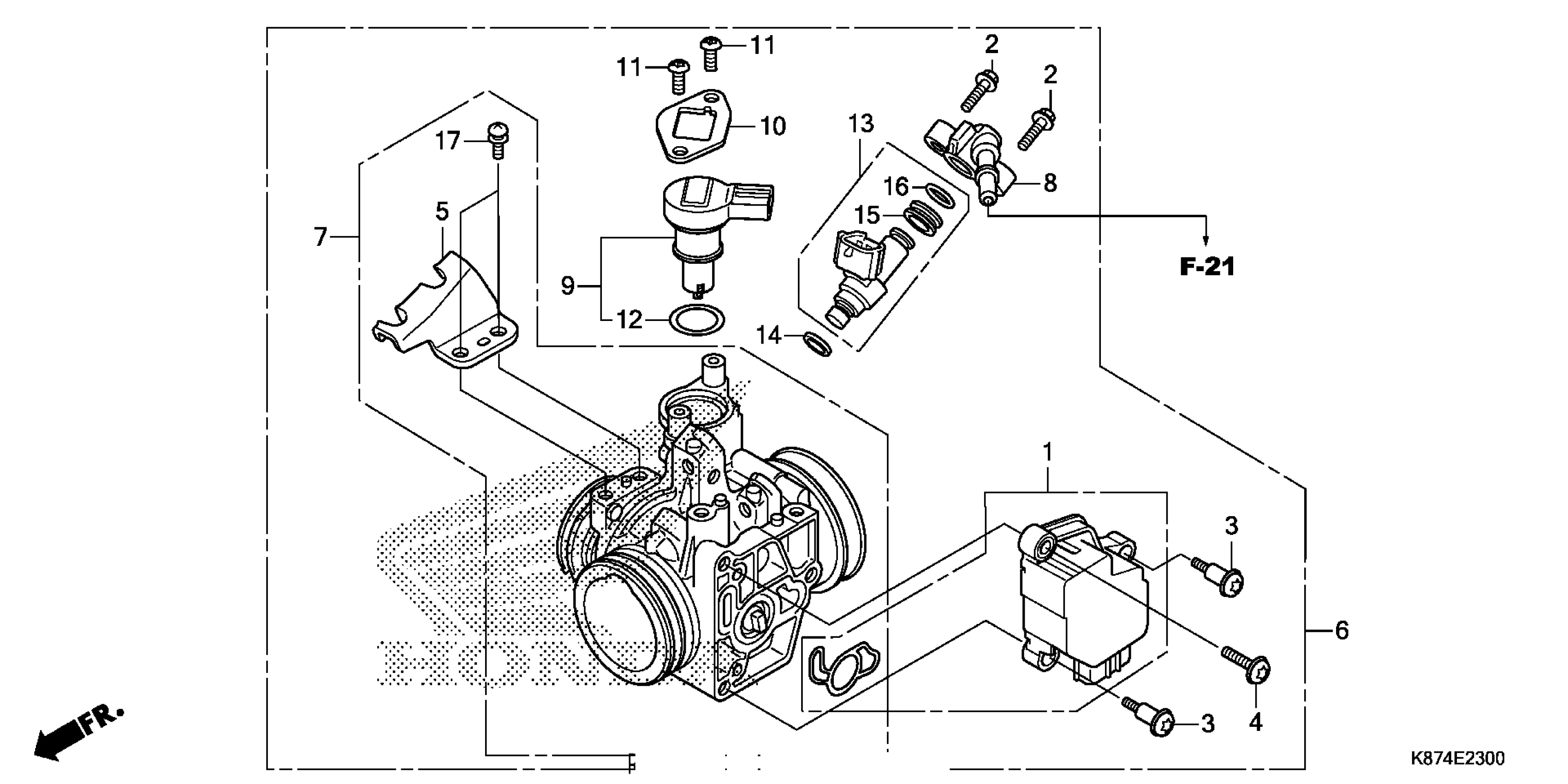

Honda CMX300AC (19) MOTORCYCLE, THA, VIN# MLHNC531-K5200001 TO MLHNC531-K5299999 THROTTLE BODY Diagram

SENSOR SET

16060-KZZ-D21

$72.41

BOLT, FLANGE (5X20)

16080-KPH-701

$4.19

SCREW, TORX (5X8.7)

16081-KYJ-901

$2.49

SCREW, TORX (5X17)

16082-KYJ-901

$1.97

STAY, WIRE

16169-MFR-671

$15.58

BODY ASSY., THROTTLE (9RA A)

16400-K87-A01

$329.52

BODY SET

16410-KZZ-D21

$62.28

JOINT, INJECTOR

16422-HP5-602

$4.85

VALVE SET, IDLE AIR CONTROL

16430-KYJ-901

$140.14

PLATE, IDLE AIR CONTROL VALVE

16432-HP5-601

$3.28

SCREW, TORX

16433-HN8-A61

$0.33

O-RING (17.8X1.9)

16435-HN8-A61

$7.95

INJECTOR ASSY., FUEL

16450-MFE-641

$154.01

SEAL RING, INJECTOR

16472-MCW-000

$2.17

CUSHION RING, INJECTOR

16473-P7A-004

$6.41

O-RING (7.8X1.9)

91301-P7A-004

$3.13

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.04

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.04
