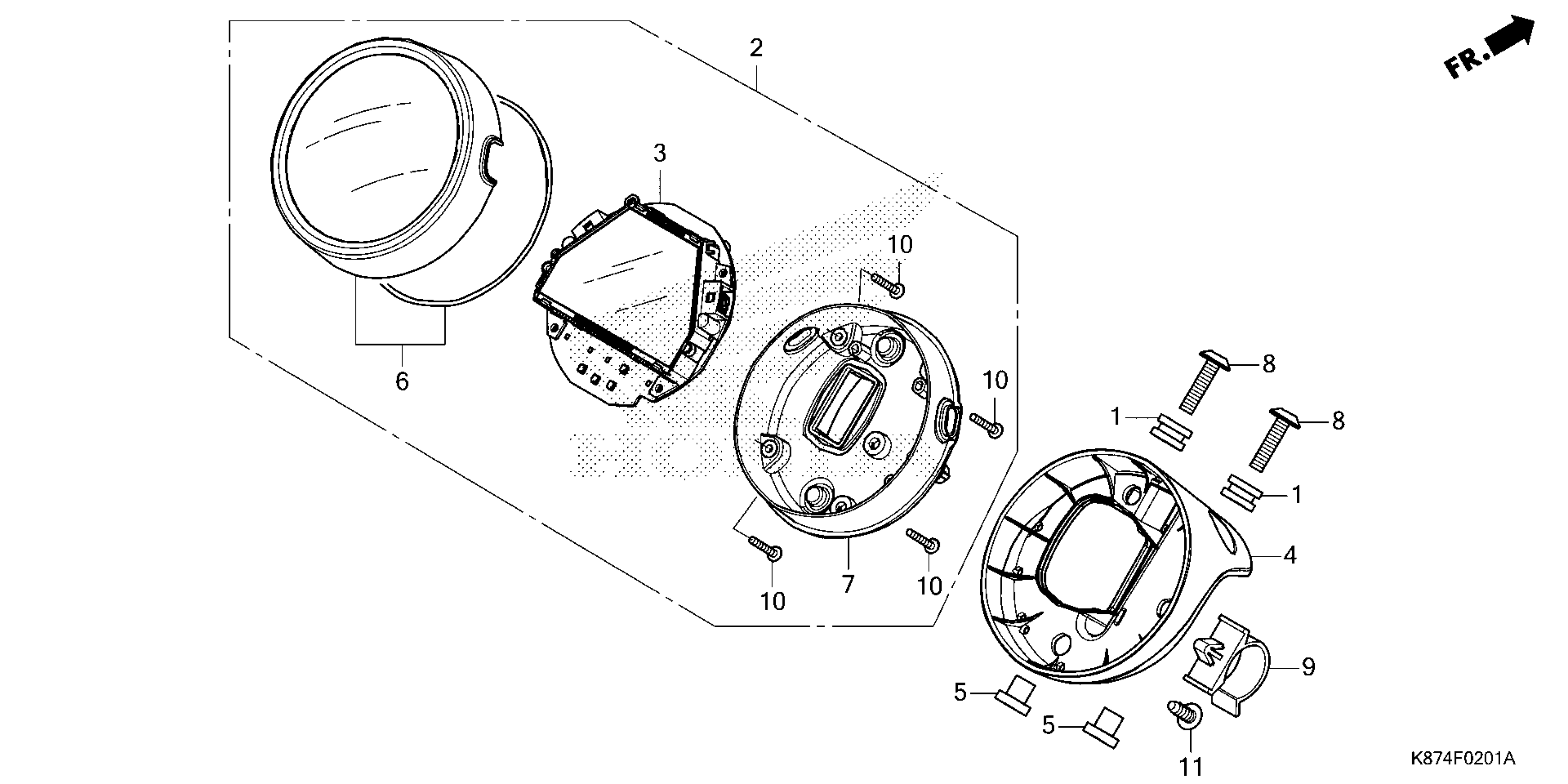

Honda CMX300AAC (20) MOTORCYCLE, THA, VIN# MLHNC535-L5300001 METER (2) Diagram

#

Description

Price

1

RUBBER, L. SIDE COVER (OUTER)

11356-KWN-700

Unavailable

2

METER ASSY., COMB This part replaces 37100-K87-A81.

37100-K87-A83

$199.06

2

METER ASSY., COMB This part replaces 37100-K87-A82.

37100-K87-A83

$199.06

2

METER ASSY., COMB

37100-K87-A83

$199.06

3

METER, LCD (MPH/KPH)

37130-K87-A81

$231.96

4

STAY, METER

37210-K87-A30

$8.08

5

COLLAR, METER STAY

37211-K87-A00

$1.66

6

CASE UPPER ASSY. This part replaces 37610-K87-A81.

37610-K87-A82

$62.93

6

CASE UPPER ASSY.

37610-K87-A82

$62.93

7

CASE ASSY. (LOWER) This part replaces 37620-MKG-A31.

37620-MKG-A32

$17.97

7

CASE ASSY. (LOWER)

37620-MKG-A32

$17.97

8

SCREW, PAN (6X25)

90135-K87-A00

$0.66

9

HOLDER (26MM)

90617-RGH-003

$7.08

10

SCREW,TAPPING 3X2

93903-22580

$0.51

11

SCREW, TAPPING (5X16)

93903-25380

$0.90
