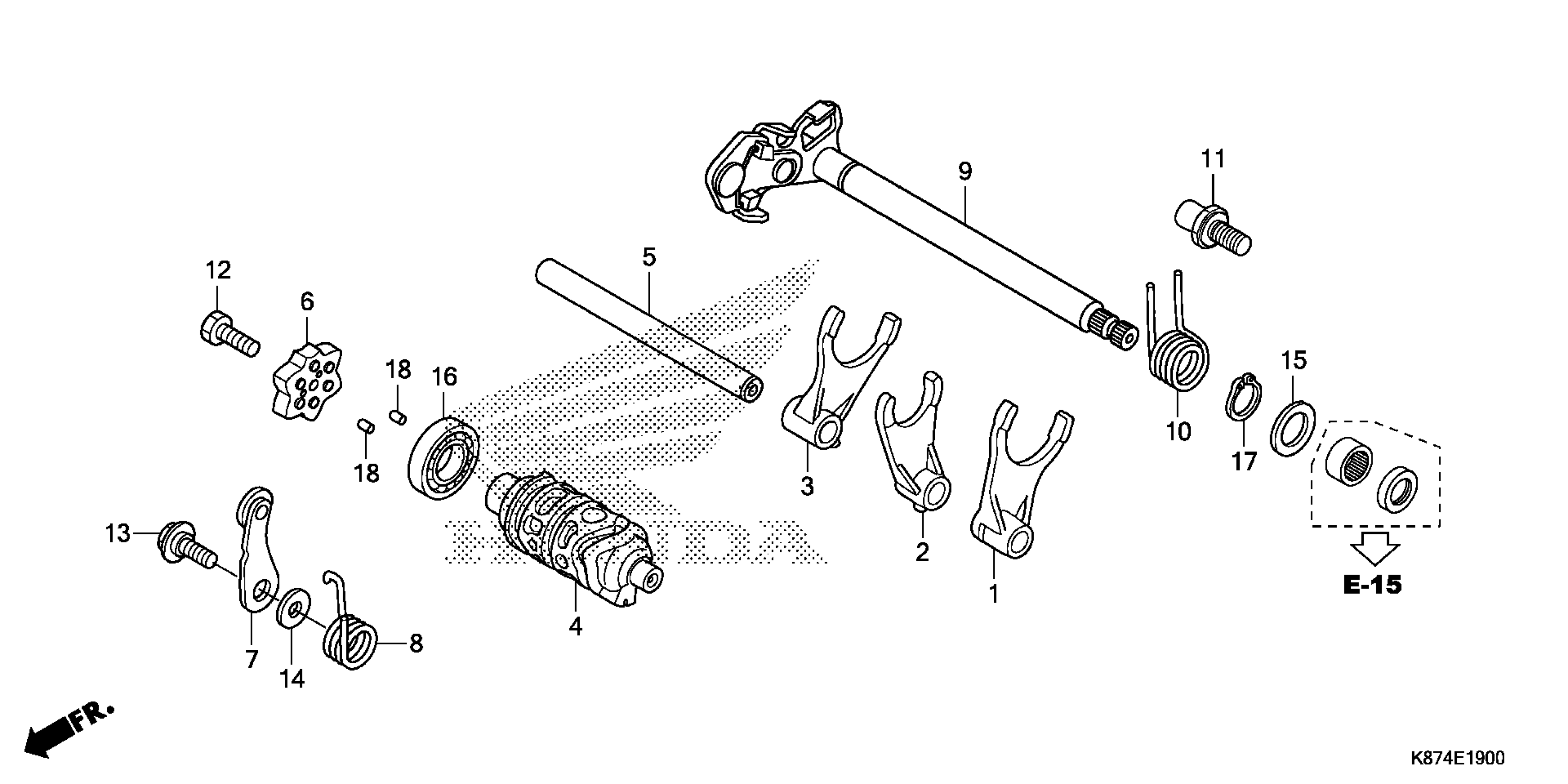

Honda CMX300AAC (20) MOTORCYCLE, THA, VIN# MLHNC535-L5300001 GEARSHIFT DRUM Diagram

FORK, L. GEARSHIFT

24211-KZZ-900

$24.79

FORK, CENTER GEARSHIFT

24212-KZZ-900

$24.46

FORK, R. GEARSHIFT

24213-KZZ-900

$24.79

DRUM, GEARSHIFT

24301-K87-A30

$32.51

SHAFT, GEARSHIFT FORK

24321-KYJ-900

$10.84

PLATE, GEARSHIFT DRUM STOPPER

24410-KYJ-900

$71.89

STOPPER, GEARSHIFT DRUM

24430-KGH-901

$11.56

SPRING, DRUM STOPPER

24435-KYJ-900

$1.49

SPINDLE, GEARSHIFT

24610-KYJ-900

$44.48

SPRING, GEARSHIFT RETURN

24651-KRM-840

$2.59

PIN, SHIFT RETURN SPRING

24652-KRM-840

$6.50

BOLT, HEX. (6X20)

90003-KVS-900

$2.10

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

WASHER (6.1MM)

90435-HB3-000

$2.92

WASHER (14MM)

90457-KRM-840

$1.49

BEARING, RADIAL BALL (6905)

91015-MCA-003

$10.36

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

ROLLER (3X8.5)

96220-30085

$1.49
