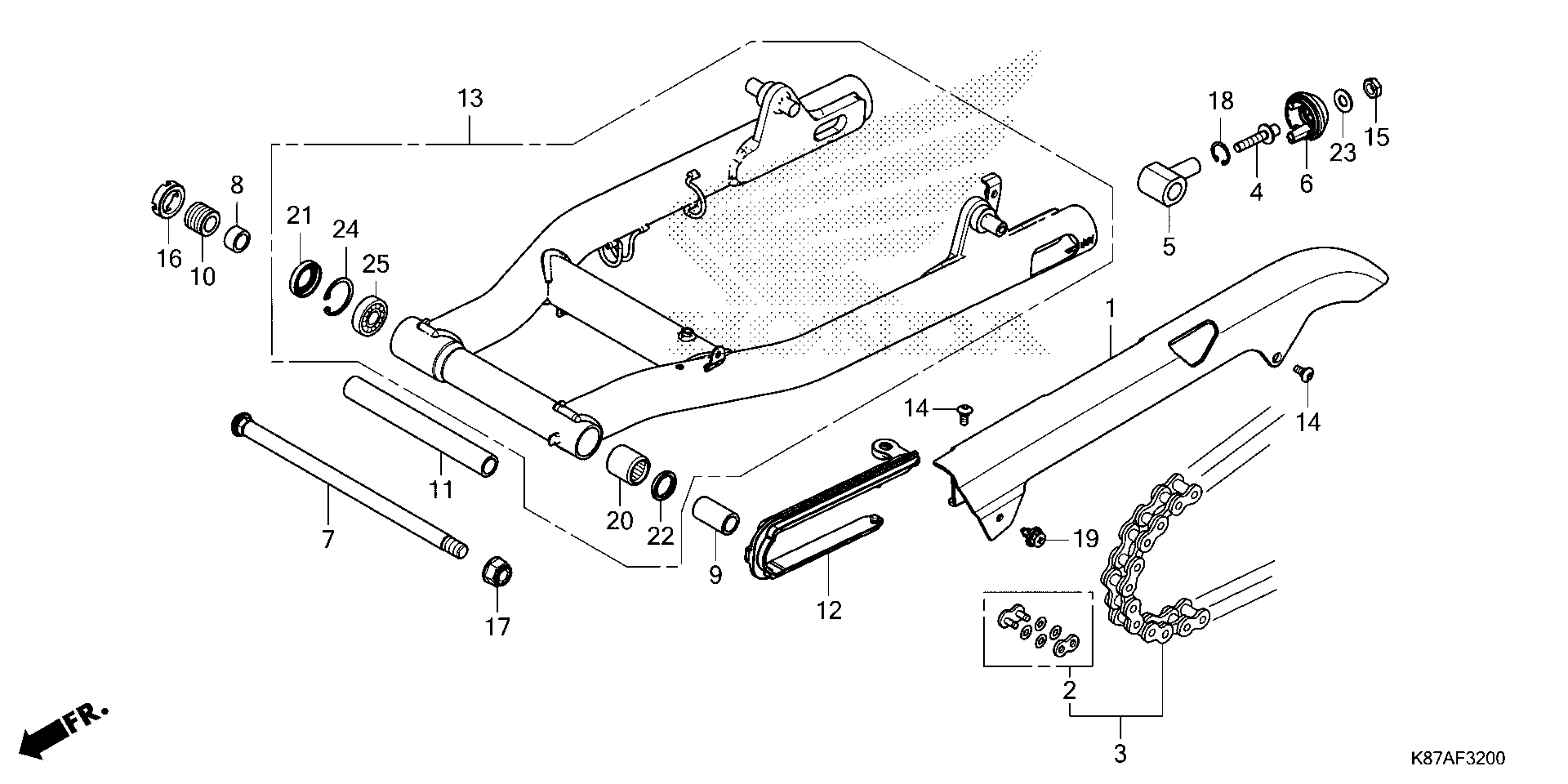

Honda CMX300AA (23) MOTORCYCLE, THA, VIN# MLHNC534-P5000001 TO MLHNC534-P5099999 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-K87-A01

$11.79

2

MASTER LINK (DAIDO)

40545-KYJ-902

$13.26

2

MASTER LINK

40545-MKP-DN2

$20.53

3

CHAIN, DRIVE

40540-K0A-EB1

Unavailable

3

CHAIN, DRIVE

40540-MKP-DN2

$238.44

4

BOLT, CHAIN ADJ.

40542-K2Y-A00

$1.46

5

ADJUSTER, CHAIN

40543-K87-A00

$13.47

6

CAP, SWINGARM END

40546-K87-A00

$11.38

7

BOLT, SWINGARM PIVOT

52101-K87-A00

$9.35

8

COLLAR B, SWINGARM PIVOT

52105-K87-A00

$4.59

9

COLLAR, PIVOT

52106-KYJ-900

$11.63

10

BOLT, PIVOT ADJUSTING

52109-K87-A00

$6.75

11

COLLAR, PIVOT DISTANCE

52141-K87-A00

$9.63

12

SLIDER, CHAIN

52170-K87-A00

$6.72

13

SWINGARM SUB-ASSY., RR.

52200-K87-A00

$616.31

14

SCREW, SPECIAL (6X14)

90115-MGZ-J00

$0.99

15

NUT, U (10MM)

90301-K87-A01

$1.88

16

NUT, LOCK (26X1.5)

90302-K87-A00

$8.06

17

NUT, U (14MM) (FUJI SEIMITSU)

90305-KCJ-951

$5.43

18

CIRCLIP (INNER) (20)

90651-K87-A00

Unavailable

19

CLIP, BODY

90683-MBW-003

$1.93

20

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$33.83

20

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$33.83

21

DUST SEAL (22X35X7) (ARAI)

91213-MB2-003

$7.12

21

DUST SEAL (22X35X7) (ARAI) This part replaces 91213-MB2-006.

91213-MB2-003

$7.12

22

DUST SEAL (22X29X4) (ARAI)

91283-ML7-003

$5.65

23

WASHER, PLAIN (10MM)

94101-10700

$0.99

24

CIRCLIP (INNER) (35MM)

94520-35000

$2.32

25

BEARING, RADIAL BALL (6202)

96100-62020-10

$13.36
