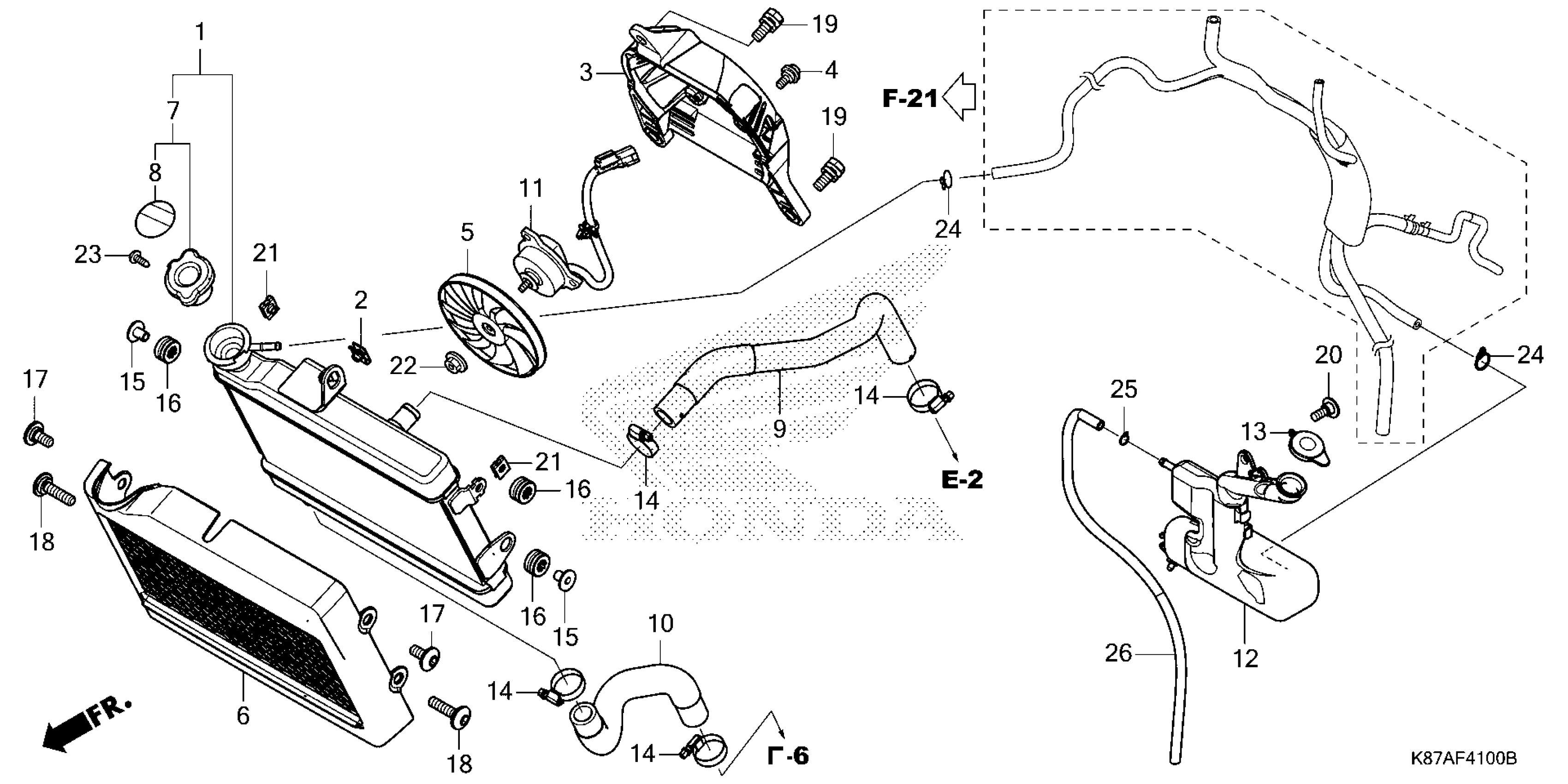

Honda CMX300AA (23) MOTORCYCLE, THA, VIN# MLHNC534-P5000001 TO MLHNC534-P5099999 RADIATOR Diagram

#

Description
Price

1

RADIATOR (TOYO)

19010-K87-A31

$150.18

2

NUT, SETTING (6MM)

19014-KEA-003

$2.95

3

SHROUD

19015-K87-A01

$11.46

4

SCREW, PAN (4X8.5)

19016-KEA-003

$1.50

5

FAN, COOLING

19020-KVZ-631

$26.91

6

GRILLE, RADIATOR

19032-K87-A31

$14.57

7

CAP, RADIATOR (TOYO)

19037-KZZ-D11

$24.35

8

LABEL, RADIATOR CAP

19046-PAA-A00

$3.40

9

HOSE, RADIATOR (UPPER)

19062-K87-A00

$29.49

10

HOSE, RADIATOR (LOWER)

19067-K87-A00

$22.50

11

MOTOR ASSY., FAN

19080-K87-A01

$98.01

12

TANK, RADIATOR RESERVE

19101-K87-A00

$10.37

13

CAP, RESERVE TANK

19109-KBP-900

Unavailable

14

CLAMP, HOSE (22-29MM)

19517-ML7-691

$10.68

15

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.83

16

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.31

17

SCREW, SPECIAL (6X14)

90111-K87-A00

$0.85

18

SCREW, SPECIAL (6X25)

90112-K87-A00

$0.49

19

BOLT-WASHER (6X16)

90120-KCR-003

$4.19

20

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

21

NUT, CLIP (6MM)

90303-MGZ-J40

Unavailable

22

NUT, FLANGE (3MM)

90315-MFL-003

$2.15

23

SCREW, TAPPING (3X6)

93901-22020

$0.90

24

CLIP, TUBE (B10)

95002-02100

$1.75

25

CLIP, TUBE (C9)

95002-50000

$1.16

26

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

Unavailable
