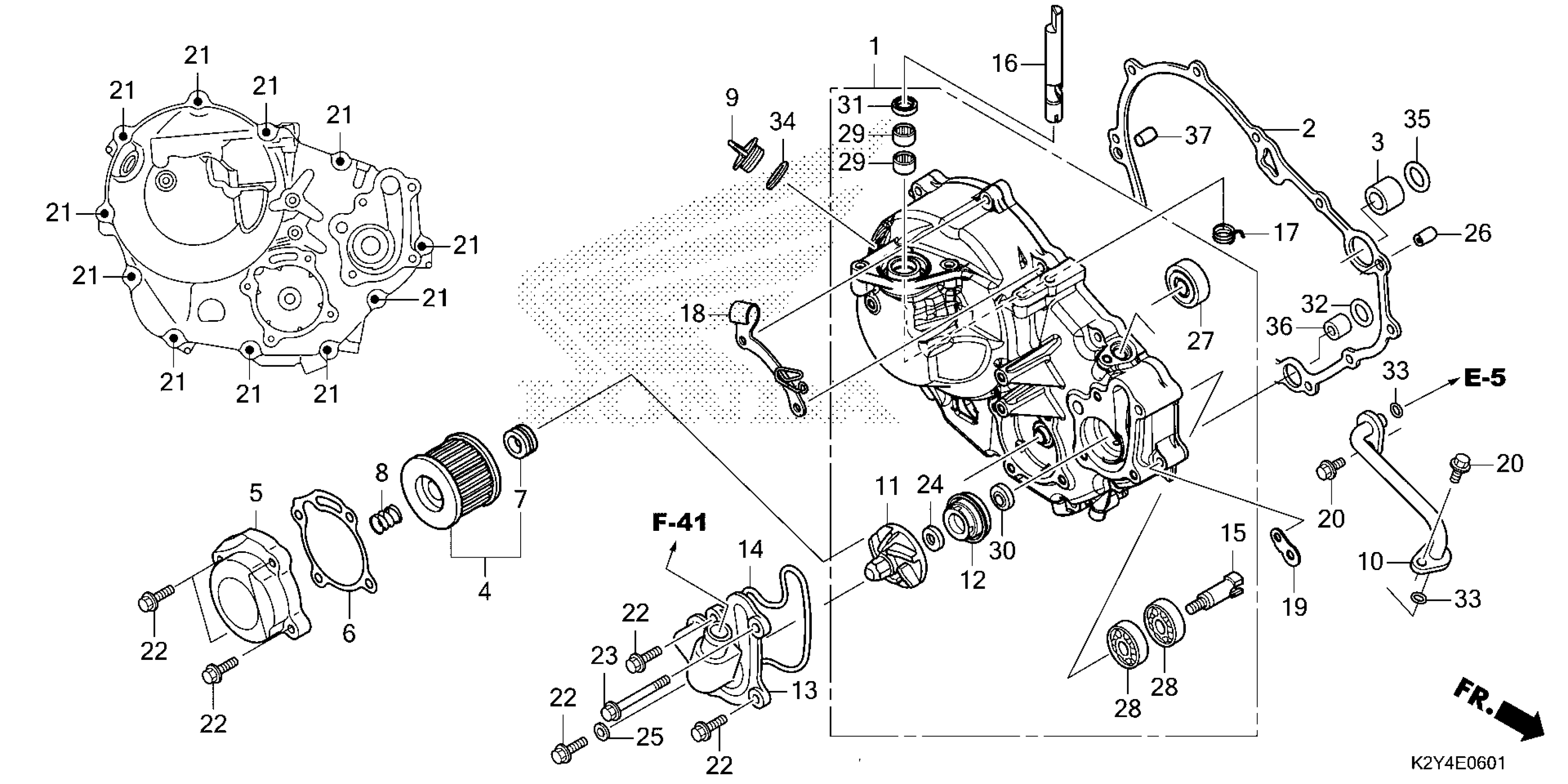

Honda CMX300A3AC (25) MOTORCYCLE, THA, VIN# MLHNC535-S5800001 TO MLHNC535-S5999999 RIGHT CRANKCASE COVER (E-CLUTCH) Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11300-K2Y-J70

Unavailable

2

GASKET, R. CRANKCASE COVER

11394-K87-A30

$10.20

3

COLLAR, OIL PASSAGE (18MM)

15326-KT7-000

$2.97

4

ELEMENT, OIL FILTER

15410-K0A-DB1

$2.92

5

COVER, OIL FILTER

15411-K0A-EB0

$5.33

6

GASKET, OIL FILTER COVER

15412-KYJ-901

$5.65

7

RUBBER, FILTER

15413-MC8-000

$3.35

8

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

9

CAP, OIL FILLER

15611-KA4-710

$14.40

10

PIPE, WATER

19120-K0A-DB0

$3.03

11

IMPELLER, WATER PUMP

19215-KGH-900

$5.19

12

SEAL, MECHANICAL

19217-P72-013

$40.65

13

COVER, WATER PUMP

19220-K0A-EB0

$6.13

14

GASKET

19226-KYJ-710

$1.49

15

SHAFT, WATER PUMP

19241-KZZ-D20

$12.41

16

LEVER (LOWER)

22814-K2Y-J70

Unavailable

17

SPRING, CLUTCH LEVER (LOWER)

22815-K2Y-J70

Unavailable

18

RECEIVER, CLUTCH CABLE

22820-K2Y-J70

Unavailable

19

STAY, HARNESS CLIP

32157-K2Y-J00

Unavailable

20

BOLT, FLANGE (6X16) (NSHF)

90010-KYJ-900

$1.49

21

BOLT, FLANGE (6X35)

90012-K64-N00

$1.49

22

BOLT, FLANGE (6X25) (NSHF)

90012-KYJ-900

$1.49

23

BOLT, FLANGE (6X65) (NSHF)

90015-KYJ-900

$1.49

24

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.34

24

WASHER (7.2X13X1.2) This part replaces 90423-KW6-900.

90423-KJ9-000

$2.34

25

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

26

PIN, DOWEL (8X12)

90702-KFM-900

$1.49

27

BRG,BALL RADIAL 6

91009-KYJ-711

$25.26

28

BEARING (6001)

91015-KYJ-711

$2.84

28

BEARING, RADIAL BALL (6001) | (Optional).

96100-60013-00

$11.99

29

BEARING, NEEDLE (12X16X10) | (Optional).

91021-MKS-E01

$9.70

29

BEARING, NEEDLE (12X16X10) This part replaces 91022-KYJ-711.

91101-PZ9-000

$8.68

29

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$8.68

29

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$8.68

30

OIL SEAL (12X26X5)

91202-KTW-901

$10.46

31

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

32

O-RING (11.8X1.9)

91301-KYJ-710

$1.49

33

O-RING (9.8X2.4)

91302-KYJ-710

$1.49

34

O-RING (18X3)

91307-035-000

$2.92

35

O-RING (17.8X1.9)

91322-K0A-DB0

$1.49

36

PIN A, DOWEL (12X16)

94301-12160

$2.27

37

PIN B, DOWEL (8X14)

94302-08140

$2.25
