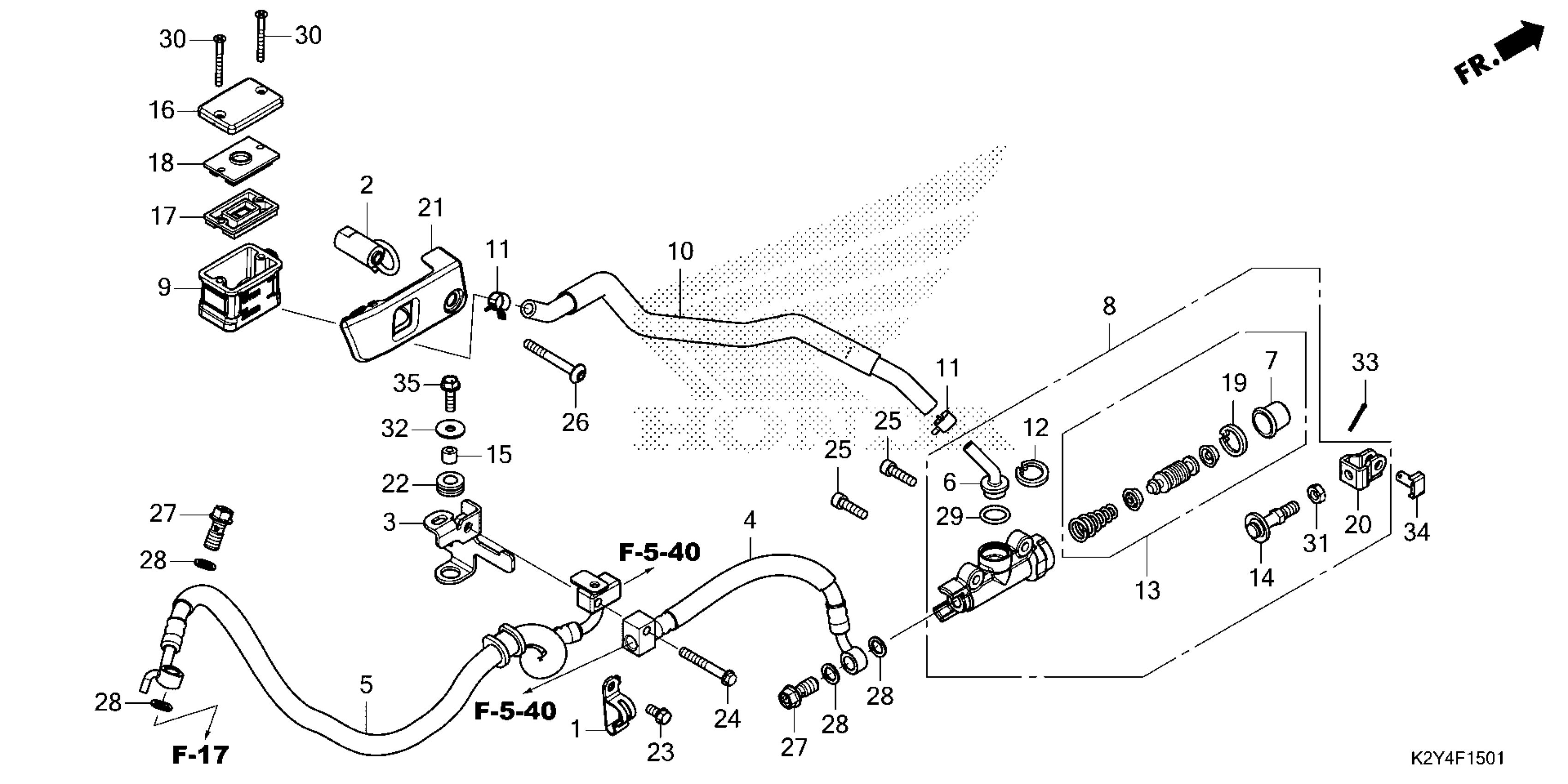

Honda CMX300A3AC (25) MOTORCYCLE, THA, VIN# MLHNC535-S5800001 TO MLHNC535-S5999999 REAR BRAKE MASTER CYLINDER (CMX300A3) Diagram

CLAMP, BRAKE HOSE

43155-K2Y-A00

$1.59

COLLAR, OIL CUP

43156-K87-A00

$7.03

STAY, RR. BRAKE HOSE

43160-K87-L50

$9.16

HOSE A, RR. BRAKE

43314-K2Y-J41

Unavailable

HOSE D, RR. BRAKE

43317-K2Y-A01

$30.95

CONNECTOR

43503-KCY-671

$11.13

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. (NISSIN)

43510-K87-A01

$114.72

CUP, OIL

43511-KV3-831

$23.70

HOSE, RR. MASTER CYLINDER

43512-K87-A01

$17.79

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.81

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

ROD, PUSH

43530-KZZ-901

$11.69

COLLAR, BRAKE HOSE STAY

45161-K87-L50

$1.69

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

CIRCLIP

46182-MEL-D21

$1.93

JOINT, BRAKE ROD

46504-KV6-702

$7.84

COVER, OIL CUP

50328-K87-A00

$3.64

GROMMET, MAIN PIPE COVER

64312-KWW-640

$1.49

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

BOLT, FLANGE (6X45)

90013-GHB-720

$1.49

BOLT, SOCKET (6X22)

90111-GHB-660

$1.49

BOLT, SOCKET SPECIAL (6X50)

90113-K87-A00

$1.49

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW, FLAT (4X40)

93600-04040-1G

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

PIN D, JOINT

95015-54000

$4.24

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55
