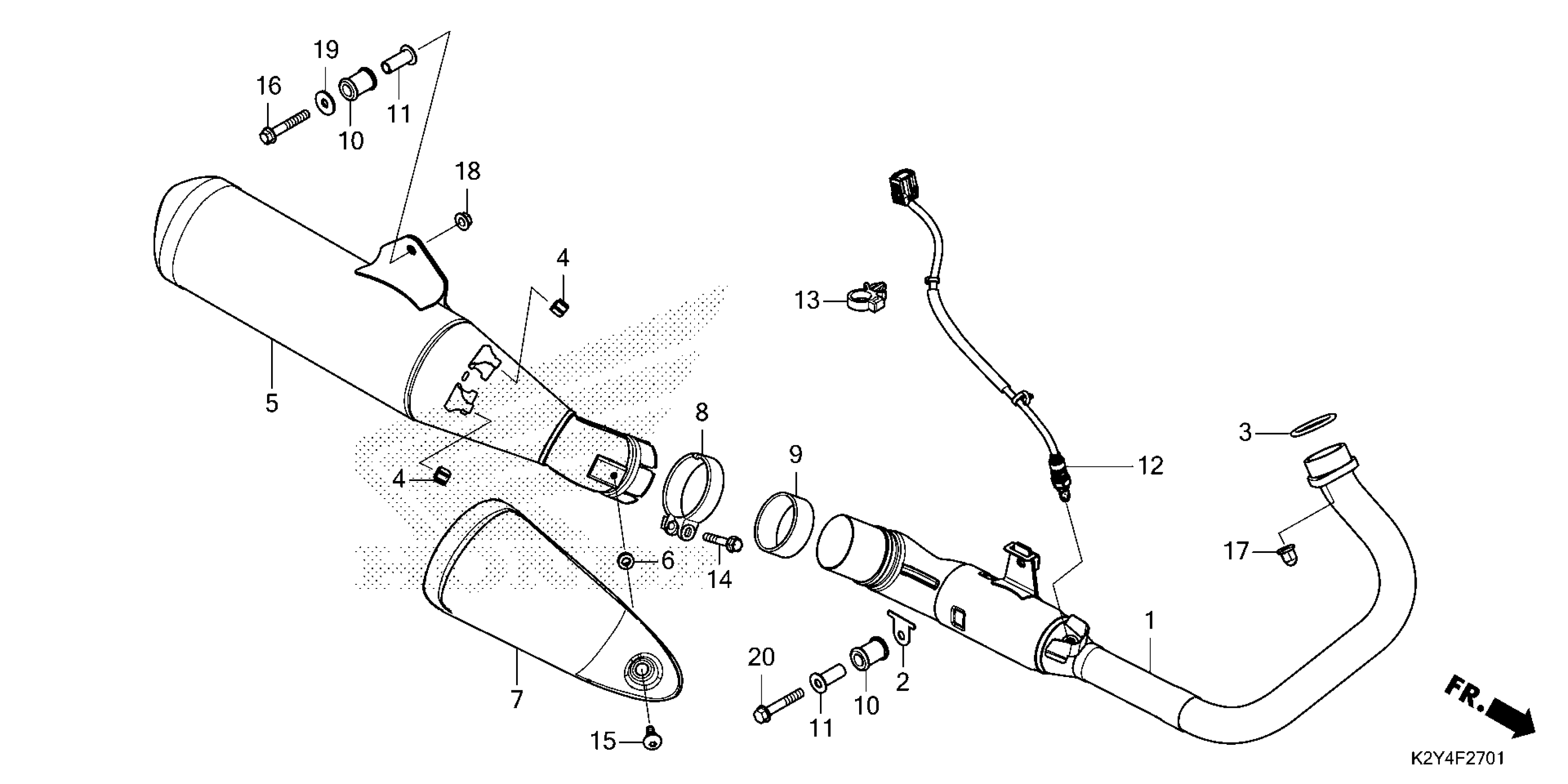

Honda CMX300A3AC (25) MOTORCYCLE, THA, VIN# MLHNC535-S5800001 TO MLHNC535-S5999999 MUFFLER (CMX300A3) Diagram

PIPE, EX.

18150-K2Y-J40

Unavailable

PLATE, EX.

18155-K87-A00

$4.66

GASKET, EX. PIPE

18291-MEB-670

$4.92

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

MUFFLER

18310-K2Y-J40

Unavailable

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

COVER, MUFFLER

18355-K87-A00

$26.66

BAND, MUFFLER

18371-K2Y-J00

Unavailable

GASKET, MUFFLER

18391-MGP-D60

$29.66

RUBBER, MUFFLER MOUNTING

18421-MB0-000

$6.34

COLLAR, MUFFLER MOUNTING This part replaces 18422-KAF-700.

18422-MAL-600

$5.92

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.92

SENSOR

36533-K2Y-J41

Unavailable

CLIP, RETURN HOSE

53781-SE0-952

$7.57

BOLT, FLANGE (8X35)

90103-KCM-620

$1.57

SCREW, PAN (6X12)

90115-K87-A00

$1.49

BOLT, FLANGE (8X50)

90163-GHB-730

$1.49

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.75

NUT, FLANGE (8MM)

94050-08070

$1.49

WASHER, PLAIN (8MM)

94103-08700

$1.49

BOLT, FLANGE (8X50)

95701-08050-00

$2.28
