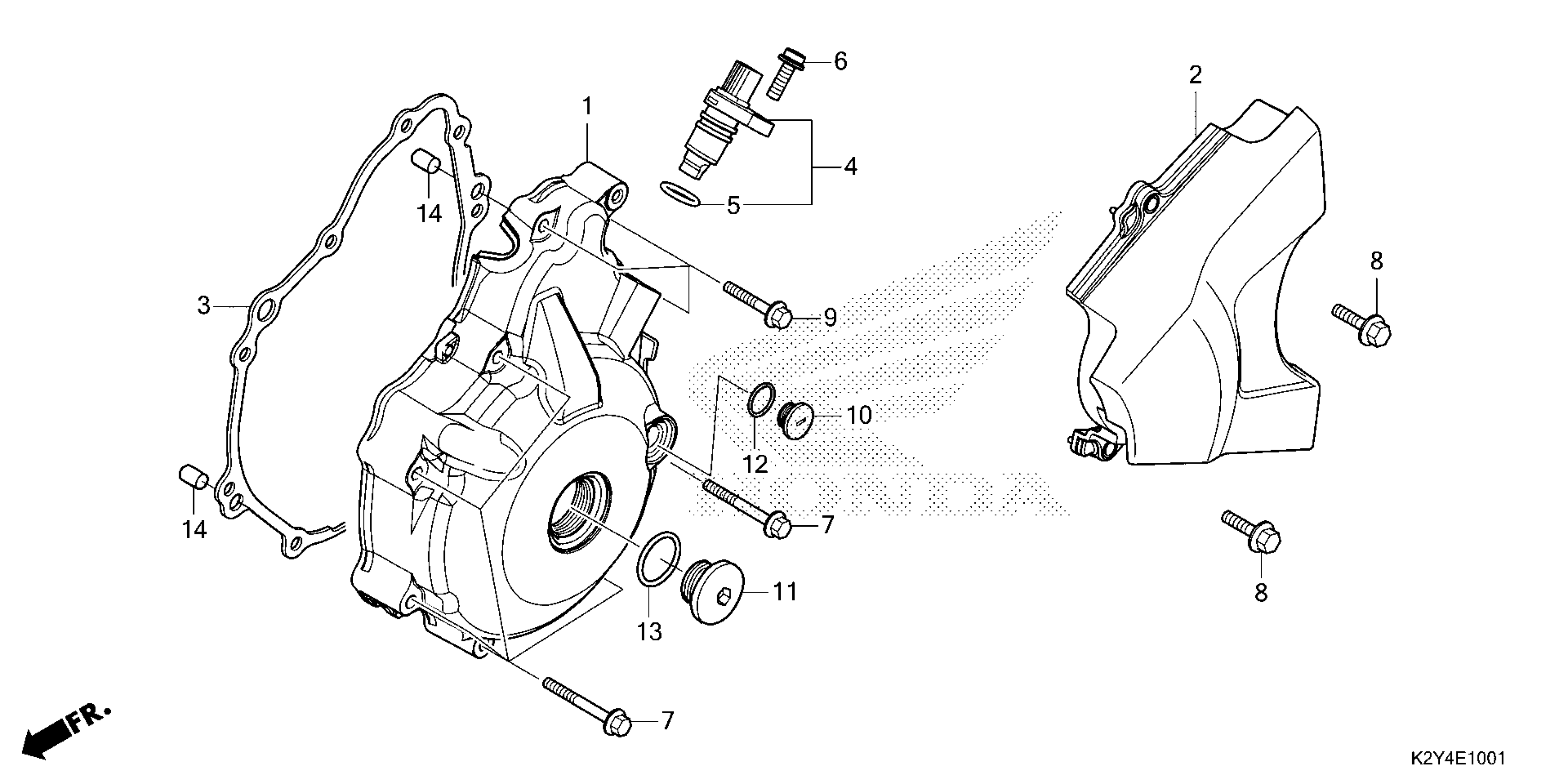

Honda CMX300A3AC (25) MOTORCYCLE, THA, VIN# MLHNC535-S5800001 TO MLHNC535-S5999999 LEFT CRANKCASE COVER (CMX300A3) Diagram

COVER, L. CRANKCASE

11341-K2Y-J00

Unavailable

COVER, L. RR.

11360-K2Y-J70

$12.41

GASKET, L. CRANKCASE COVER

11395-K87-A30

$3.90

SENSOR ASSY., CRANK (PANASONIC)

37500-K2Y-J01

Unavailable

O-RING

37501-K2Y-J01

$0.91

BOLT, FLANGE SOCKET (6X18)

90002-MJP-G50

$2.19

BOLT, FLANGE (6X45) (NSHF)

90010-K1T-E10

Unavailable

BOLT, FLANGE (6X25) (NSHF)

90012-KYJ-900

Unavailable

BOLT, FLANGE (6X30) (NSHF)

90013-KYJ-900

Unavailable

CAP, ALTERNATOR

90084-KPP-860

$2.71

CAP (30MM)

90087-KYJ-710

$1.34

O-RING (13.8X2.5)

91303-377-000

$3.26

O-RING (30MM)

91356-KWV-000

$1.28

PIN B, DOWEL (8X14)

94302-08140

$2.76
