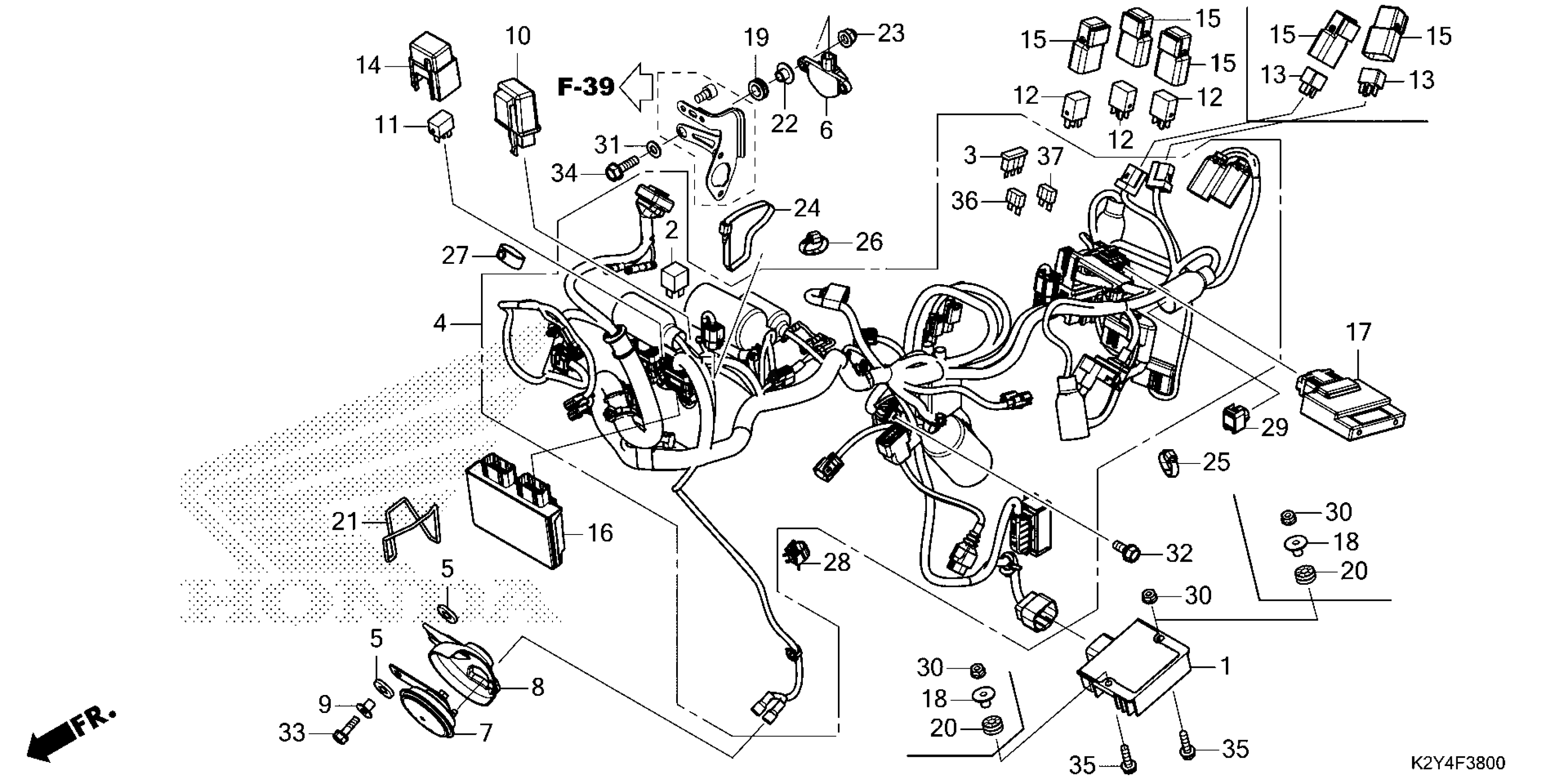

Honda CMX300A (25) MOTORCYCLE, THA, VIN# MLHNC530-S5800001 TO MLHNC530-S5999999 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER, REGULATOR

31600-K2Y-A01

$68.99

2

RECTIFIER, SILICON

31700-MM8-610

$22.75

3

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

4

WIRE HARNESS

32100-K2Y-A50

$544.42

5

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.29

6

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$98.77

7

HORN (HIGH)

38110-MGZ-J01

$25.30

8

HEAT GUARD, HORN

38111-MGZ-J00

$3.81

9

COLLAR, HORN SETTING

38117-MGZ-J00

$1.58

10

RELAY, TURN SIGNAL

38301-KZZ-J01

$51.80

11

RELAY ASSY., POWER (MICRO ISO 4P) (MITSUBA)

38501-KVZ-631

$9.65

12

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$9.66

14

COVER, RELAY (2P)

38506-KZZ-900

$3.29

15

SUSPENSION, POWER RELAY

38506-MCS-G00

$5.59

16

PGM-FI UNIT

38770-K2Y-A51

$115.04

18

COLLAR

61104-MKN-D50

$1.38

19

RUBBER, SIDE COVER

64535-MFJ-D00

$1.77

20

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.05

21

BAND, TOOL

83606-KWS-901

$3.16

22

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.09

23

NUT, CAP (6MM)

90202-KCW-870

$2.65

24

BAND, WIRE HARNESS

90620-SB2-003

$23.54

25

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.90

27

BAND, RUBBER (50)

90652-MKH-D20

$2.67

28

CLIP, CABLE (8MM)

90690-GHB-631

$1.99

29

CONNECTOR, DUMMY (6P 025M)

91771-MKG-D81

$7.75

30

NUT, FLANGE (6MM)

94050-06070

$1.32

31

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

32

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

33

BOLT, FLANGE (6X20)

95701-06020-07

$1.48

34

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

35

BOLT, FLANGE (6X35)

95701-06035-07

$1.71

36

FUSE, MINI (10A)

98200-41000

$1.20

37

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.59
