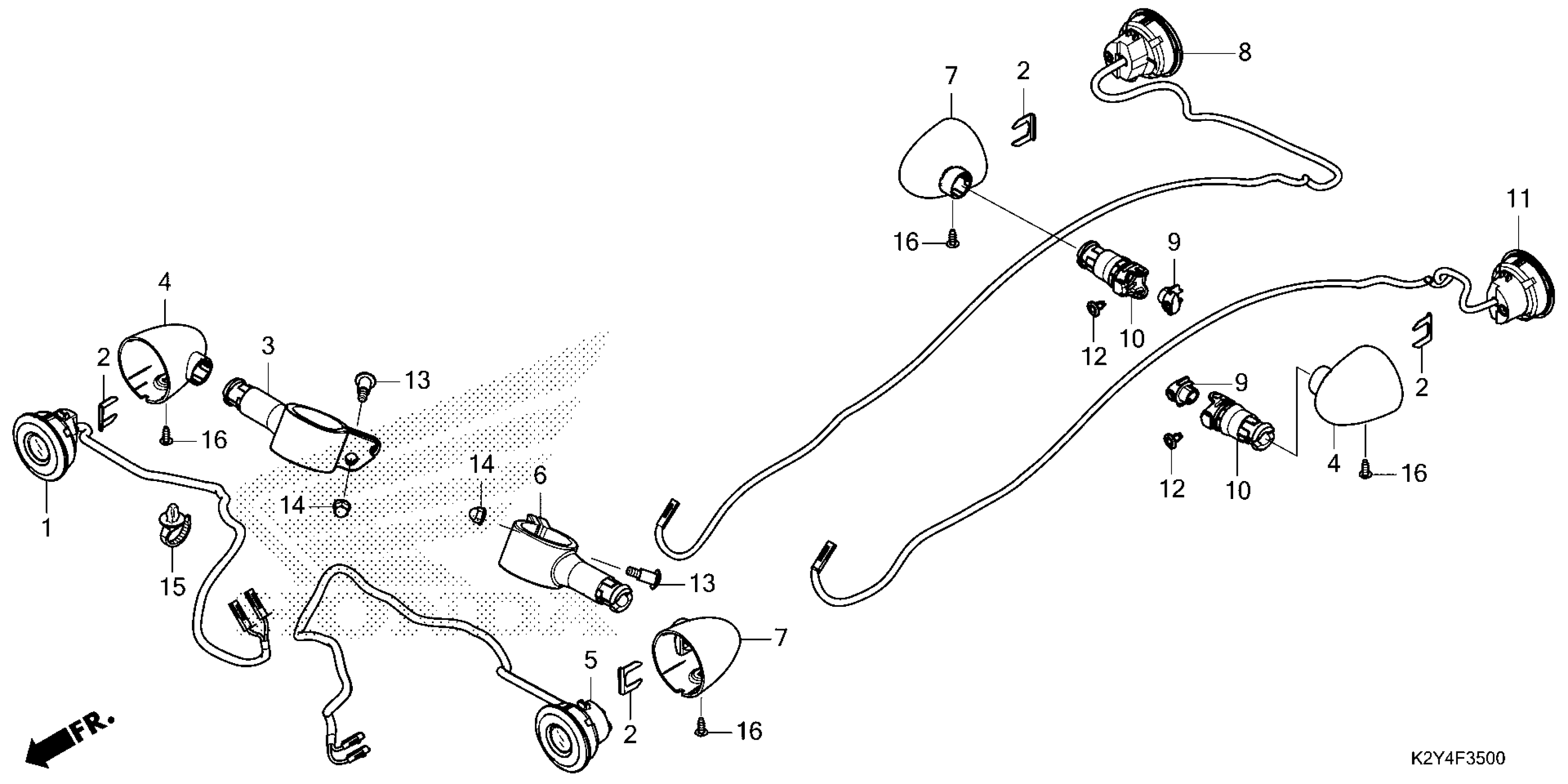

Honda CMX300A (25) MOTORCYCLE, THA, VIN# MLHNC530-S5800001 TO MLHNC530-S5999999 TURN SIGNAL Diagram

TURN SIGNAL UNIT, R. FR. (MITSUBA)

33400-K87-A31

$74.41

STAY, TURN SIGNAL

33411-K87-A30

$2.41

RUBBER, R. FR. TURN SIGNAL

33412-K87-A30

$11.84

COVER A, TURN SIGNAL (R. FR./L. RR.)

33413-K87-A30

$4.12

TURN SIGNAL UNIT, L. FR. (MITSUBA)

33450-K87-A31

$68.93

RUBBER, L. FR. TURN SIGNAL

33452-K87-A30

$11.84

COVER B, TURN SIGNAL (L. FR./R. RR.)

33453-K87-A30

$4.12

TURN SIGNAL UNIT, R.

33600-K2Y-J41

$37.23

HOLDER, TURN SIGNAL

33609-K87-A30

$1.59

RUBBER, RR. TURN SIGNAL MOUNTING

33612-K87-A30

$4.64

TURN SIGNAL UNIT, L.

33650-K2Y-J41

$37.00

RIVET, PUSH (6MM)

90116-K0A-E11

$1.17

BOLT, SOCKET (6X22)

90119-K87-A00

$1.14

NUT, CAP (L. SIDE ONLY)

90201-428-900

$2.03

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.08

SCREW, TAPPING (4X12)

93903-24380

Unavailable
