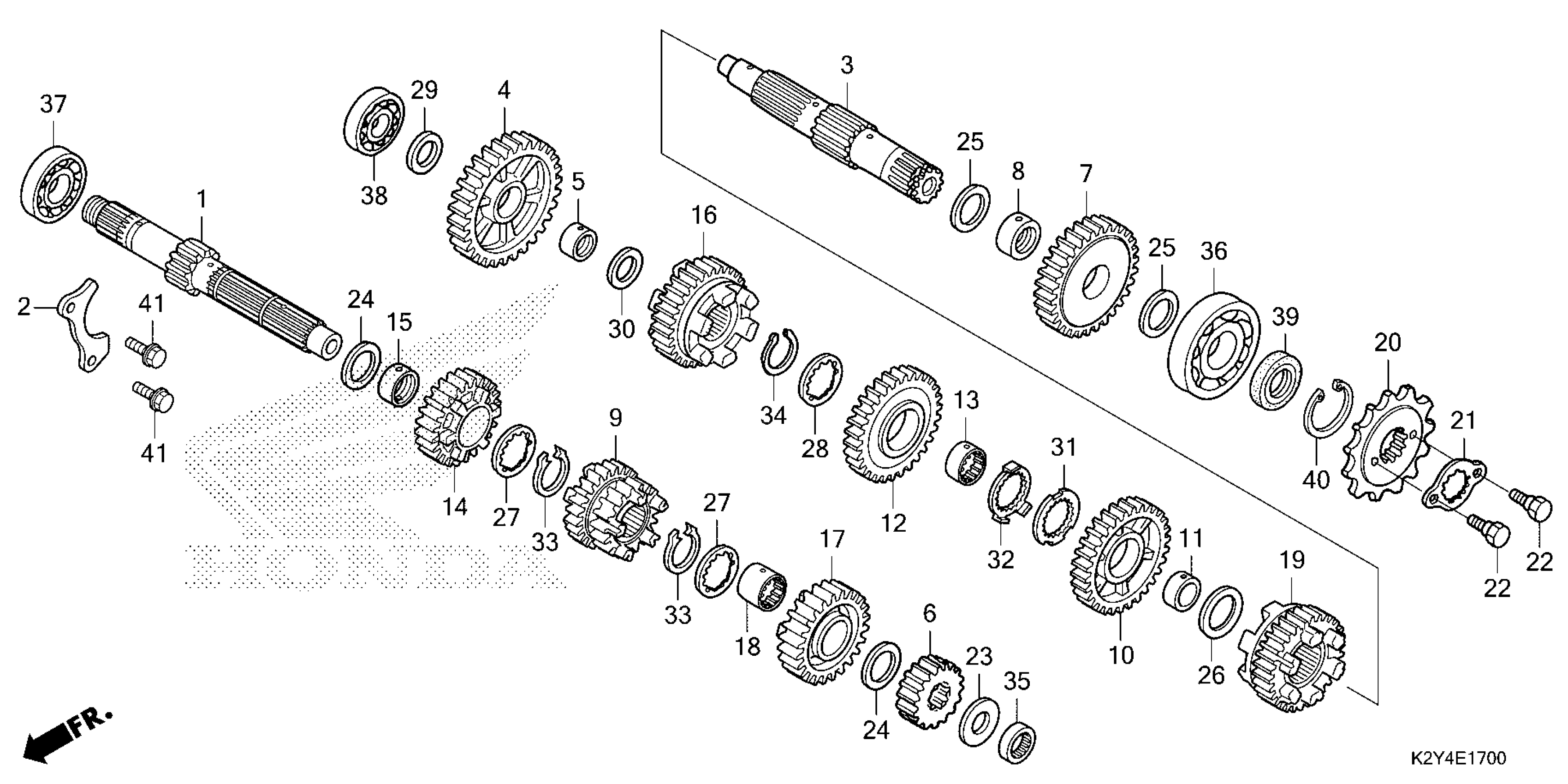

Honda CMX300A (25) MOTORCYCLE, THA, VIN# MLHNC530-S5800001 TO MLHNC530-S5999999 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (12T)

23211-K0A-DB0

$8.91

1

MAINSHAFT (12T)

23212-K0A-DB0

$12.06

2

PLATE

23213-K0A-DB0

$2.04

3

COUNTERSHAFT

23221-K0A-DB0

$16.32

4

GEAR (41T)

23411-K0A-DB0

$13.72

5

COLLAR (20X23X10.5)

23412-KYJ-900

$12.16

6

GEAR (16T)

23421-K0A-DB0

$7.34

7

GEAR (36T)

23431-K0A-DB0

$13.72

8

COLLAR (22X25X11)

23432-KYJ-900

$9.19

9

GEAR (20T/20T)

23441-K0A-DB0

$21.51

10

GEAR (33T)

23451-K0A-DB0

$14.31

11

COLLAR (25X28X10)

23452-KYJ-900

$9.76

12

GEAR (27T)

23471-K0A-DB0

$13.84

13

COLR, SPLINE (25X10)

23472-K0A-DB0

$0.99

14

GEAR (24T)

23481-K0A-DB0

$14.37

15

BUSH (20X23X17.4)

23482-KYJ-900

$27.94

16

GEAR (28T)

23491-K0A-DB0

$15.26

17

GEAR (26T)

23501-K0A-DB0

$14.53

18

COLLAR, SPLINE (23MM)

23502-KYJ-900

$19.37

19

GEAR (27T)

23511-K0A-DB0

$19.88

20

SPROCKET, DRIVE (14T)

23801-KYJ-901

$11.33

21

PLATE, FIXING

23802-KYJ-900

Unavailable

22

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.41

23

WASHER (17X26X1.0)

90405-KYJ-900

$1.15

24

WASHER (20X27X1.0)

90406-KYJ-900

$1.18

25

WASHER (22X29X1.0)

90407-KYJ-900

$1.15

26

WASHER (25X32X1.0)

90408-KYJ-900

$1.18

27

WASHER, SPLINE (20X26X1.6)

90451-KYJ-900

$0.97

28

WASHER, SPLINE (25X31X1.0)

90452-KYJ-900

$0.99

29

WASHER (17X28X1.0)

90453-KYJ-900

$1.18

30

WASHER B, THRUST (20MM)

90454-KPS-900

$0.74

31

WASHER, SPLINE (25X42X1.6)

90454-KYJ-900

$1.37

32

WASHER, LOCK (25MM)

90455-KYJ-900

$28.97

33

CIRCLIP (OUTER) (20MM)

90601-KYJ-900

$7.56

34

CIRCLIP (OUTER) (25MM)

90602-KYJ-900

$6.35

35

BEARING (17X27X13)

91003-KYJ-711

Unavailable

35

BEARING, NEEDLE (17X27X13) | (Optional).

91003-KYJ-901

$19.12

36

BEARING (63/22)

91005-KYJ-711

$6.40

36

BEARING, RADIAL BALL (63/22) | (Optional).

91005-KYJ-901

$19.35

37

BEARING (6304)

91013-KYJ-711

$5.09

37

BEARING, RADIAL BALL (6304) | (Optional).

96100-63040-00

$13.22

38

BEARING (6203U)

91014-KYJ-711

$3.38

38

BEARING, RADIAL BALL (6203U) | (Optional).

96140-62030-00

$17.12

39

OIL SEAL (22X36X5)

91207-KYJ-711

$4.85

40

CIRCLIP (INNER) (37MM)

94520-37000

$2.57

41

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93
