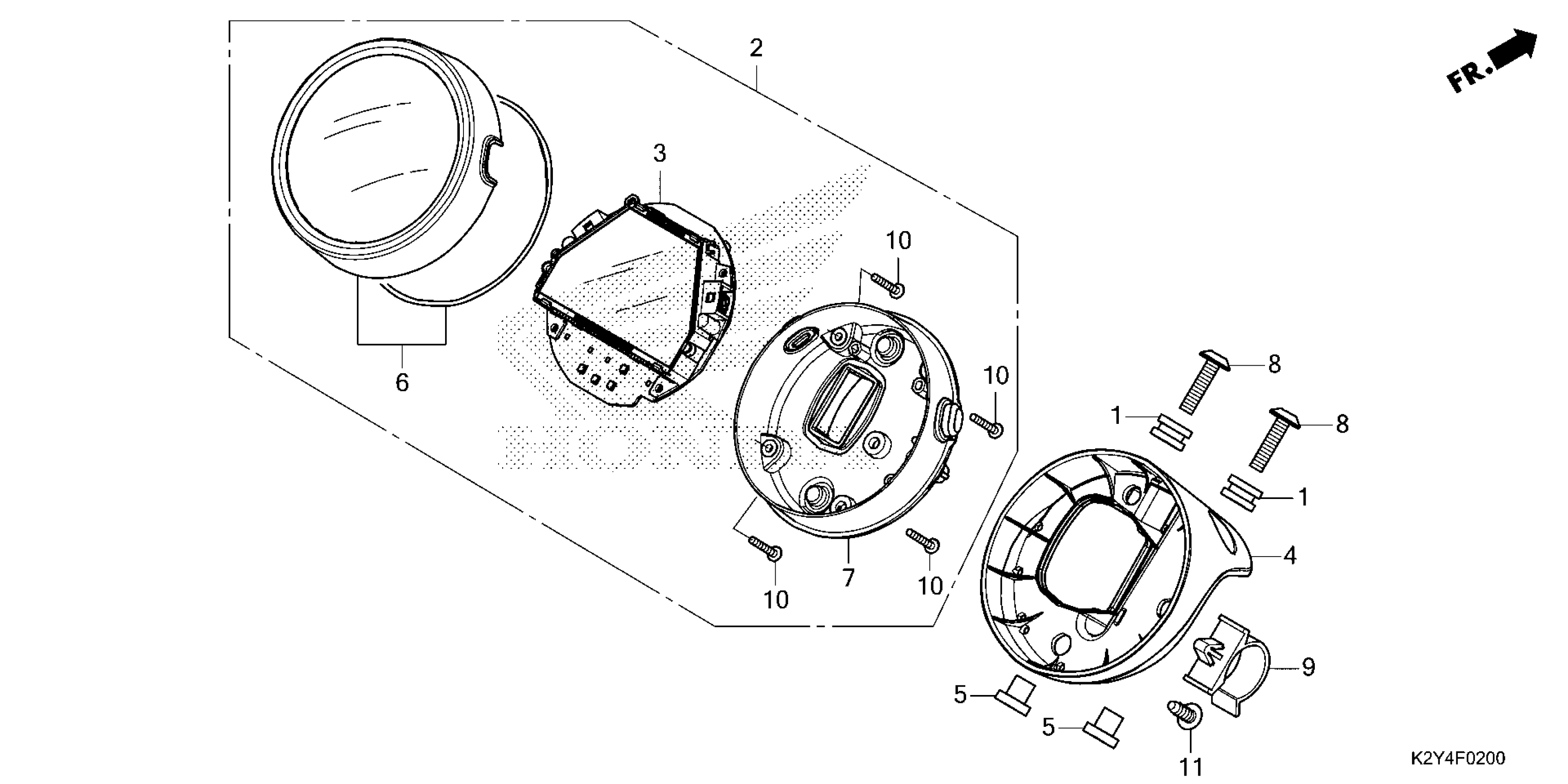

Honda CMX300A (25) MOTORCYCLE, THA, VIN# MLHNC530-S5800001 TO MLHNC530-S5999999 SPEEDOMETER Diagram

#

Description
Price

1

RUBBER, L. SIDE COVER (OUTER)

11356-KWN-700

Unavailable

2

METER, COMBINATION

37100-K2Y-A51

$178.60

3

METER, LCD

37130-K2Y-A51

$173.97

4

STAY, METER

37210-K87-A30

$8.08

5

COLLAR, METER STAY

37211-K87-A00

$1.66

6

CASE UPPER ASSY.

37610-K87-A32

$50.75

7

CASE ASSY. (LOWER)

37620-MKG-A32

$17.97

8

SCREW, PAN (6X25)

90135-K87-A00

$0.66

9

HOLDER (26MM)

90617-RGH-003

$7.08

10

SCREW,TAPPING 3X2

93903-22580

$0.51

11

SCREW, TAPPING (5X16)

93903-25380

$0.90
