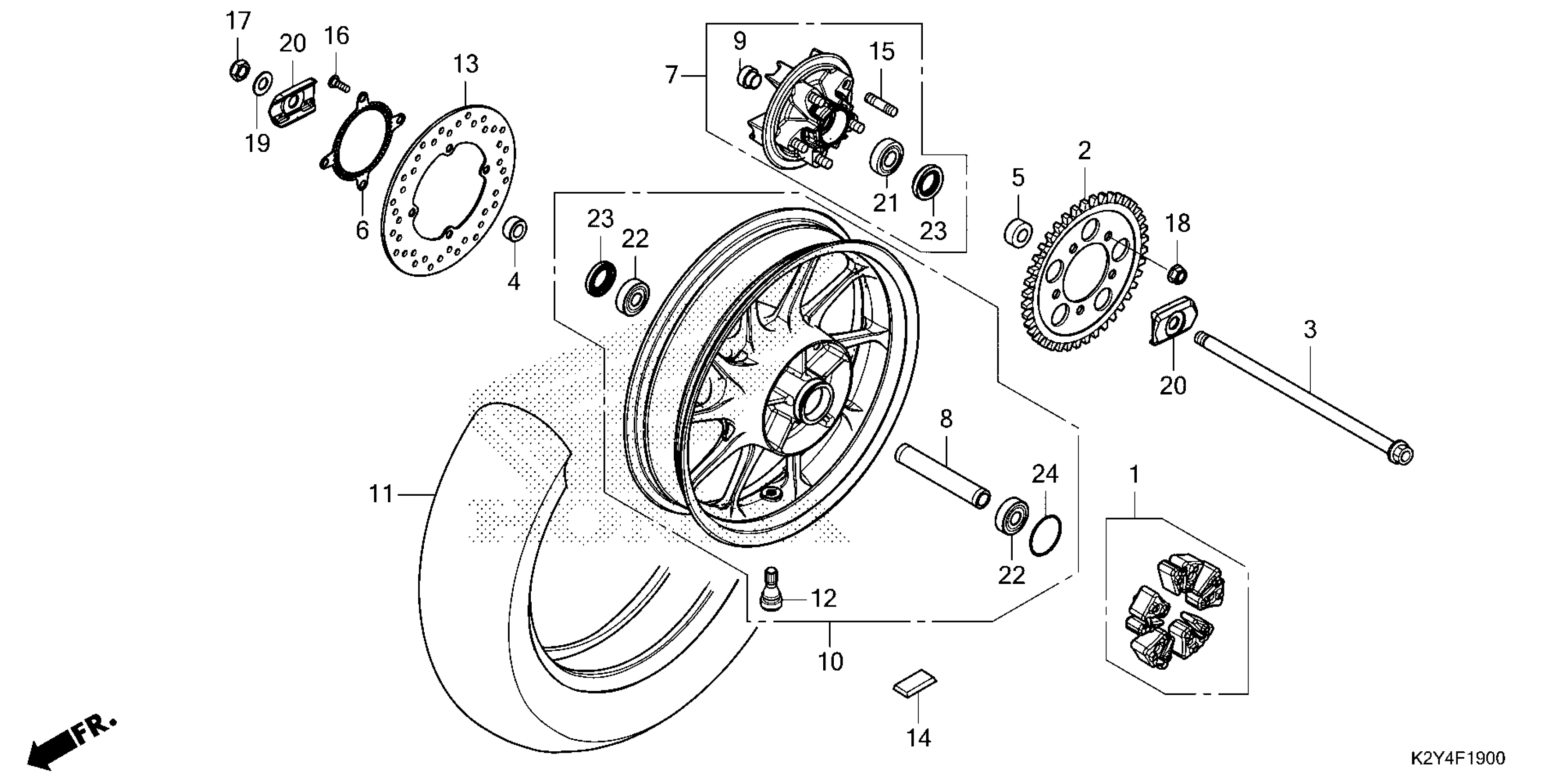

Honda CMX300A (25) MOTORCYCLE, THA, VIN# MLHNC530-S5800001 TO MLHNC530-S5999999 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MGS-D30

$51.58

2

SPROCKET, FINAL DRIVEN (36T)

41201-K87-A00

$33.46

3

AXLE, RR. WHEEL

42301-K3S-JA0

$15.07

4

COLLAR, RR. BRAKE SIDE

42312-MGZ-J00

$12.03

5

COLLAR, L. RR. WHEEL SIDE

42313-K87-A00

$10.33

7

FLANGE SUB-ASSY.

42615-MKP-DN0

$231.09

8

COLLAR, RR. AXLE DISTANCE

42620-K87-A00

$14.54

9

COLLAR B, RR. AXLE DISTANCE

42625-K87-A00

$5.00

10

WHEEL SUB-ASSY., RR.

42650-K2Y-J40

$232.46

11

TIRE, RR. (150/80-16 M/C 71H) (IRC)

42711-K2Y-J41

Unavailable

12

VALVE, RIM (IRC)

42753-GM9-743

$7.79

13

DISK, RR. BRAKE

43251-MKY-D51

$75.84

14

WEIGHT, BALANCE (10G)

44721-MLN-EQ1

Unavailable

14

WEIGHT, BALANCE (15G)

44722-MLN-EQ1

Unavailable

14

WEIGHT, BALANCE (20G)

44723-MLN-EQ1

$3.70

15

BOLT 2, STUD (12X25)

90102-MAS-000

$3.73

16

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.74

17

NUT, U (16MM)

90305-GW2-711

$14.71

18

NUT, U (12MM) (FUJI SEIMITSU)

90306-KGH-901

$2.33

19

WASHER, PLAIN (16.4X32X2)

90501-K87-A00

$1.36

20

PLATE, SWINGARM SIDE

90559-K87-A00

$24.19

21

BEARING (6204UU)

91053-MKP-DN1

$13.48

22

BEARING, RADIAL BALL (6303UU) (NSK)

91054-MT6-831

$34.41

23

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$10.89

23

DUST SEAL (30X47X8) (NOK)

91253-443-762

$10.89

24

O-RING (55X2)

91351-MGS-D30

$2.80
