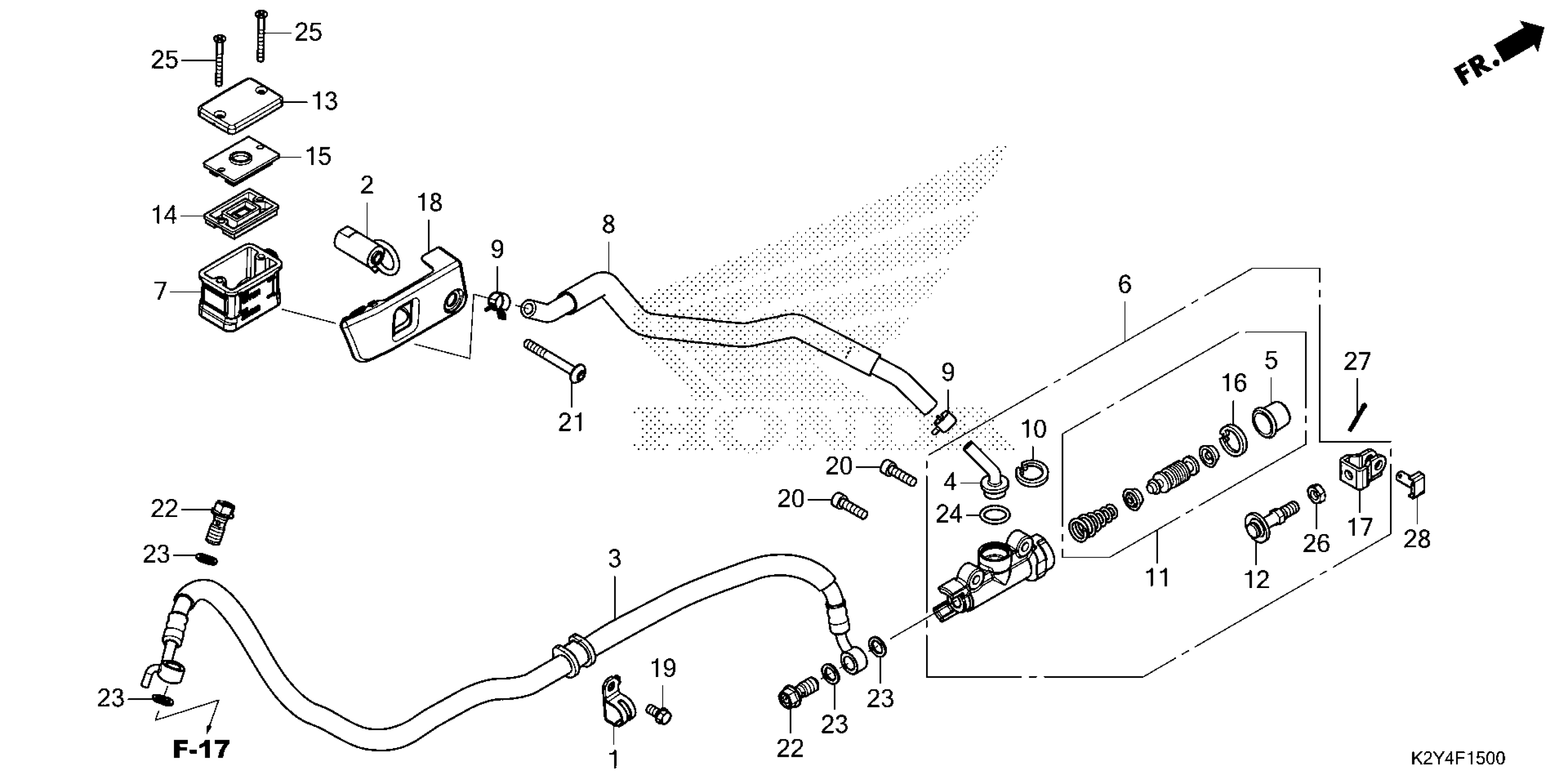

Honda CMX300A (25) MOTORCYCLE, THA, VIN# MLHNC530-S5800001 TO MLHNC530-S5999999 REAR BRAKE MASTER CYLINDER (CMX300) Diagram

CLAMP, BRAKE HOSE

43155-K87-A00

$3.70

COLLAR, OIL CUP

43156-K87-A00

$6.22

HOSE, RR. BRAKE

43314-K87-A01

$28.77

CONNECTOR

43503-KCY-671

$10.13

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. (NISSIN)

43510-K87-A01

$101.42

CUP, OIL

43511-KV3-831

$21.29

HOSE, RR. MASTER CYLINDER

43512-K87-A01

$15.72

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.55

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

ROD, PUSH

43530-KZZ-901

$10.33

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

DIAPHRAGM

45520-MG7-006

$9.52

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

CIRCLIP

46182-MEL-D21

$1.77

JOINT, BRAKE ROD

46504-KV6-702

$7.30

COVER, OIL CUP

50328-K87-A00

$3.54

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.12

BOLT, SOCKET (6X22)

90111-GHB-660

$0.90

BOLT, SOCKET SPECIAL (6X50)

90113-K87-A00

$0.52

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, COTTER (2.0X15)

94201-20150

$0.94

PIN D, JOINT

95015-54000

$3.95
