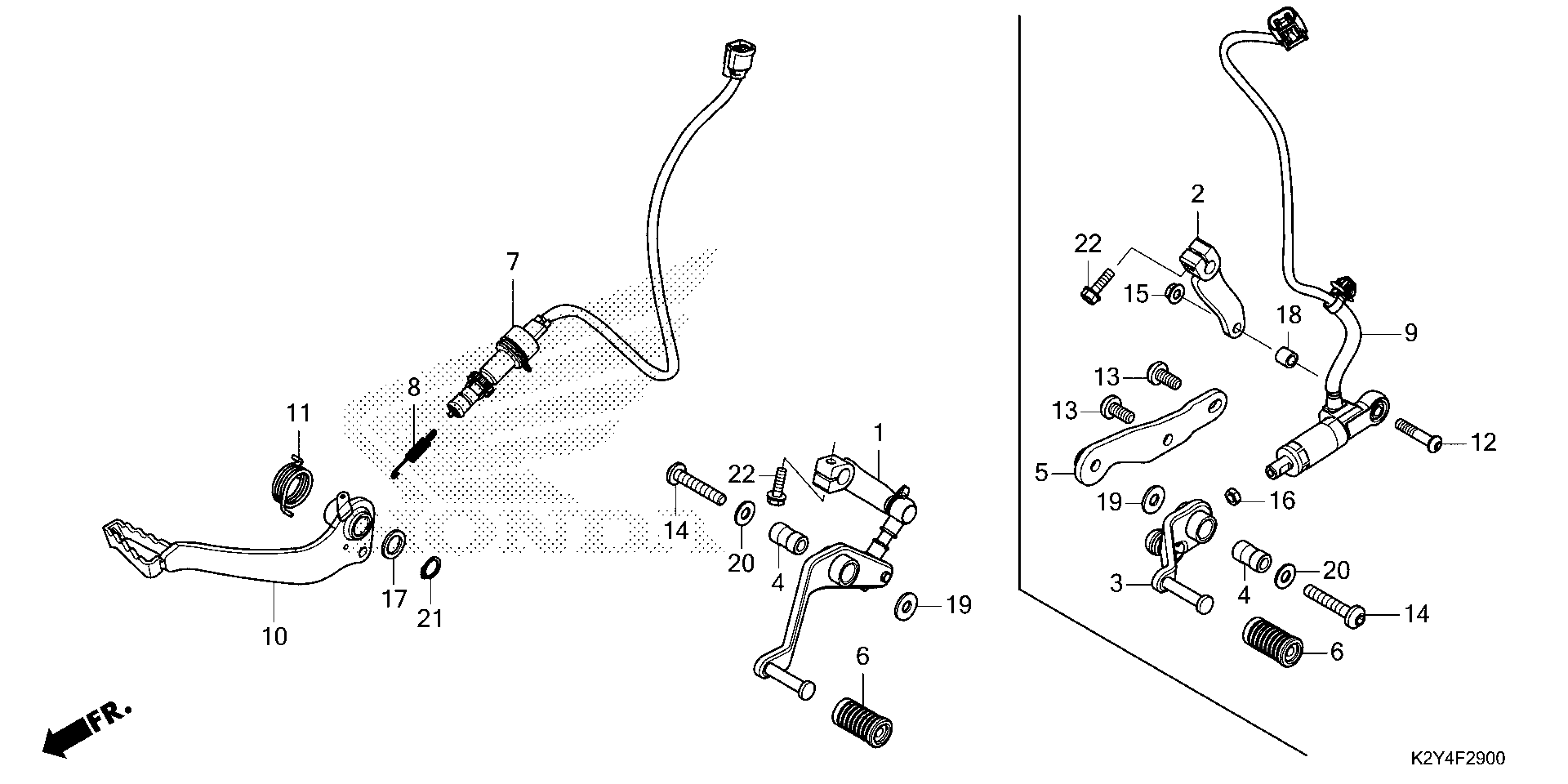

Honda CMX300A (25) MOTORCYCLE, THA, VIN# MLHNC530-S5800001 TO MLHNC530-S5999999 PEDAL Diagram

PEDAL, GEARSHIFT

24705-K87-A00

$23.93

COLLAR, GEARSHIFT PEDAL PIVOT

24731-K87-A00

$2.85

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.15

SWITCH, RR. STOP

35350-K2Y-J41

$20.19

SPRING, STOP SWITCH

35357-K26-900

$0.74

PEDAL, RR. BRAKE

46501-K87-A30

$15.88

SPRING, BRAKE PEDAL

46514-K87-A00

$2.80

BOLT, SOCKET SPECIAL (8X45)

90110-K87-A00

$0.90

WASHER (14MM)

90451-GBL-870

$2.80

WASHER (8.5X20)

90526-K87-A00

$0.99

WASHER, PLAIN (8MM)

94101-08000

$0.75

CIRCLIP (OUTER) (14MM)

94511-14000

$0.78

BOLT, FLANGE (6X20)

95701-06020-07

$1.48
