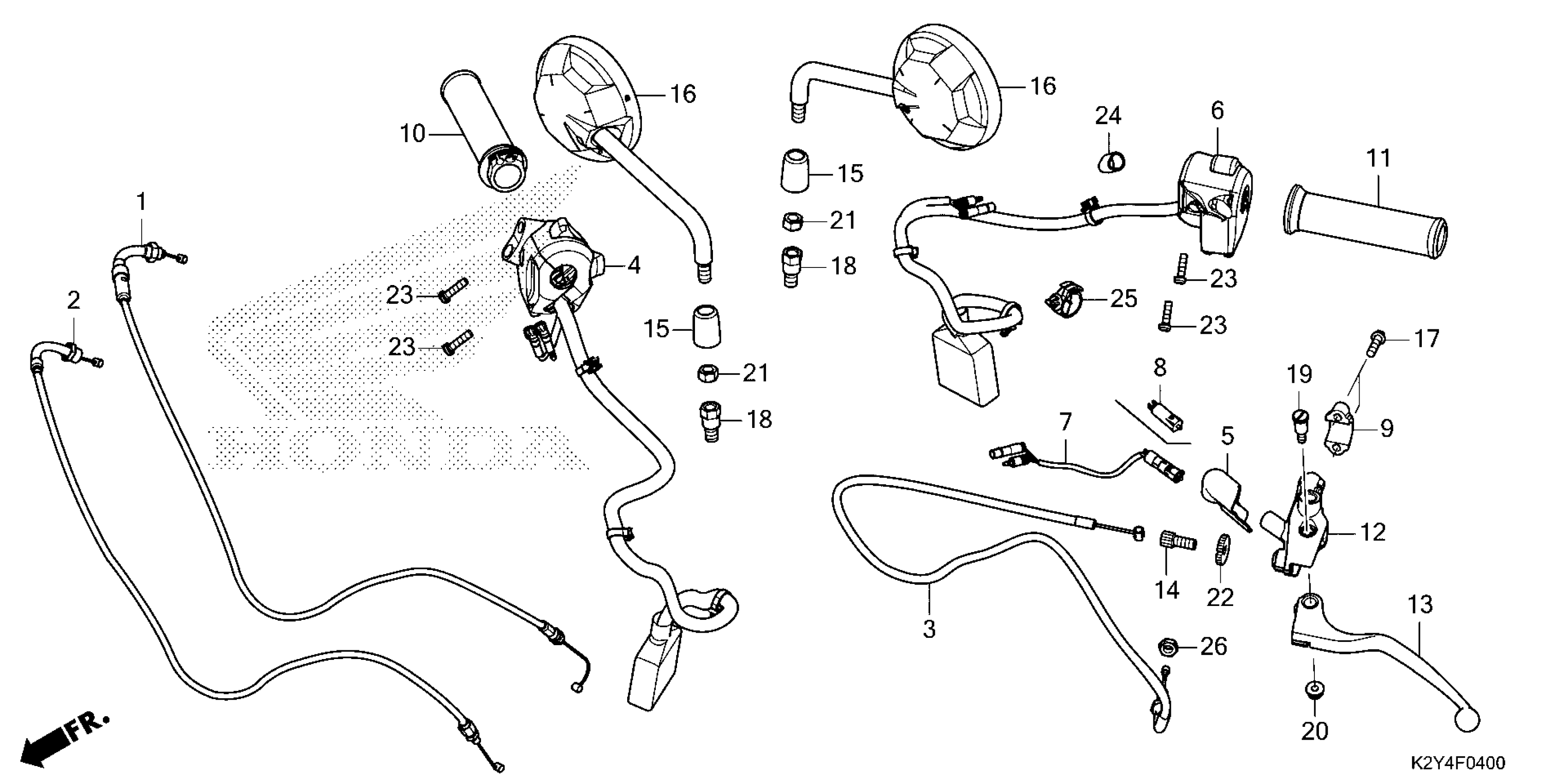

Honda CMX300A (25) MOTORCYCLE, THA, VIN# MLHNC530-S5800001 TO MLHNC530-S5999999 HANDLE LEVER@SWITCH@CABLE@MIRROR Diagram

CABLE A, THROTTLE

17910-K2Y-J40

$7.79

CABLE B, THROTTLE

17920-K2Y-J40

$7.28

CABLE, CLUTCH

22870-K2Y-J40

$6.22

SWITCH ASSY.

35130-K2Y-J41

$58.16

COVER, CLUTCH SWITCH

35152-MGZ-J00

$1.79

SWITCH, TURN SIGNAL

35200-K2Y-J41

$60.40

SWITCH, FR. LEVER

35330-KYJ-901

$6.30

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

GRIP, THROTTLE

53140-K2Y-J40

$6.88

GRIP, L. HANDLE

53165-K2Y-J40

$3.79

BRACKET, HANDLE LEVER

53172-KYJ-900

$12.76

LEVER, L. HANDLE

53178-K2Y-J40

Unavailable

BOLT, CLUTCH CABLE ADJUSTING

53192-349-690

$6.72

CAP, LOCK NUT

88119-K87-A00

$2.00

MIRROR

88210-K2Y-J40

$8.28

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

BOLT, ADAPTER (10MM)

90101-KWW-640

$2.07

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

NUT, HEX. (10MM) (LEFT HAND THREAD)

90301-KWW-640

$1.00

NUT, FIXING

90321-KT7-760

$9.59

SCREW-WASHER (5X20)

90507-MGZ-J00

$0.46

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

$7.22

NUT, HEX. (8MM)

94002-08070-0S

$1.31
