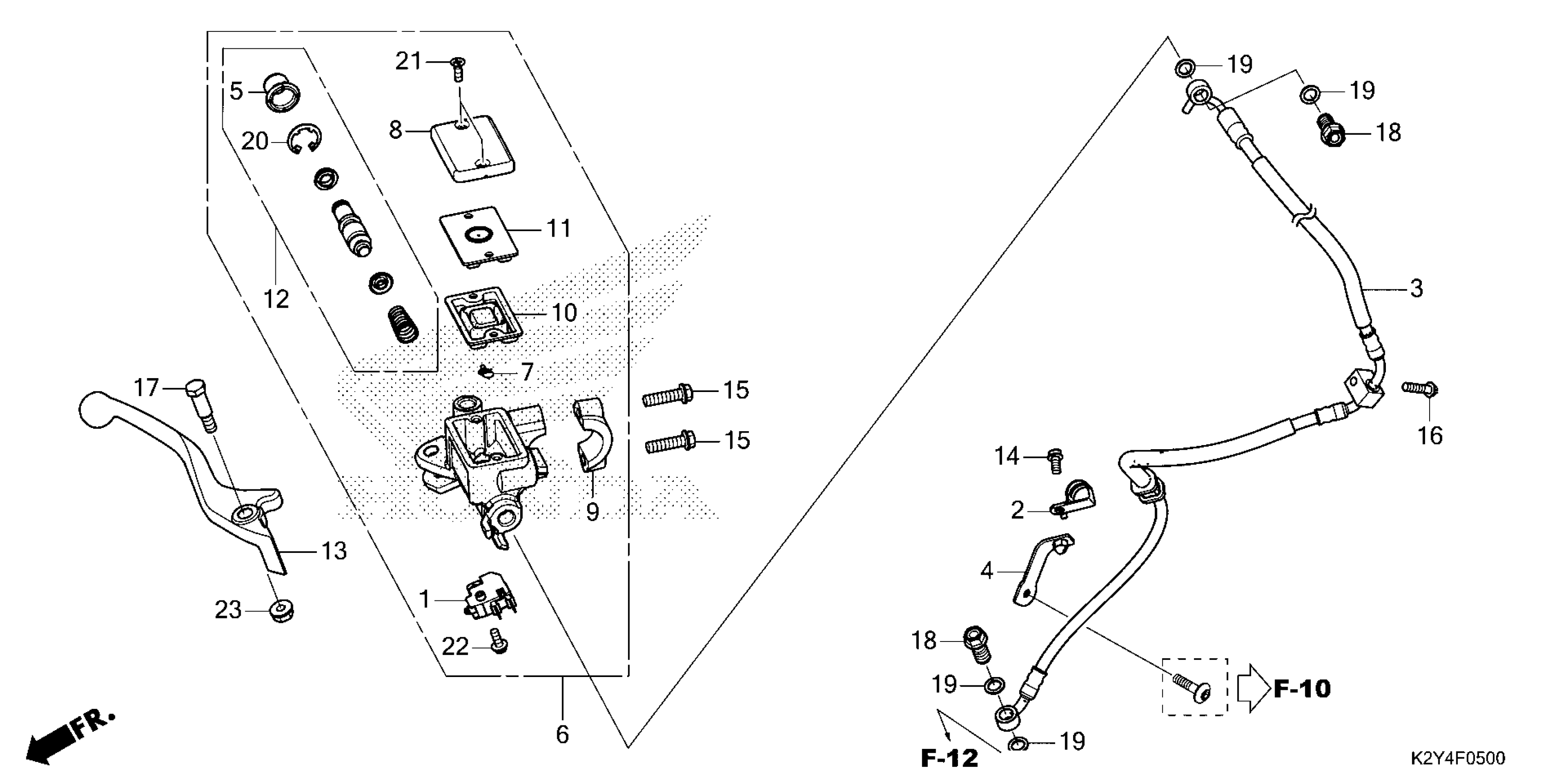

Honda CMX300A (25) MOTORCYCLE, THA, VIN# MLHNC530-S5800001 TO MLHNC530-S5999999 FRONT BRAKE MASTER CYLINDER (CMX300) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

CLAMP, BRAKE HOSE

43155-K87-A00

$4.18

HOSE, FR. BRAKE

45125-K2Y-A51

$34.51

STAY, FR. BRAKE HOSE

45155-K87-A00

$3.92

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-MGZ-D02.

45510-MGZ-315

$125.70

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-MGZ-315

$125.70

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$4.28

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$4.28

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

DIAPHRAGM

45520-GE2-006

$9.58

PLATE, DIAPHRAGM

45521-K21-901

$2.34

MASTER CYLINDER SET

45530-471-831

$40.86

LEVER, R. HANDLEBAR

53175-K2Y-J41

$11.84

BOLT, FLANGE (6X10)

90013-GHB-600

$4.48

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, FLANGE (6X28)

90013-GHB-680

$1.49

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
