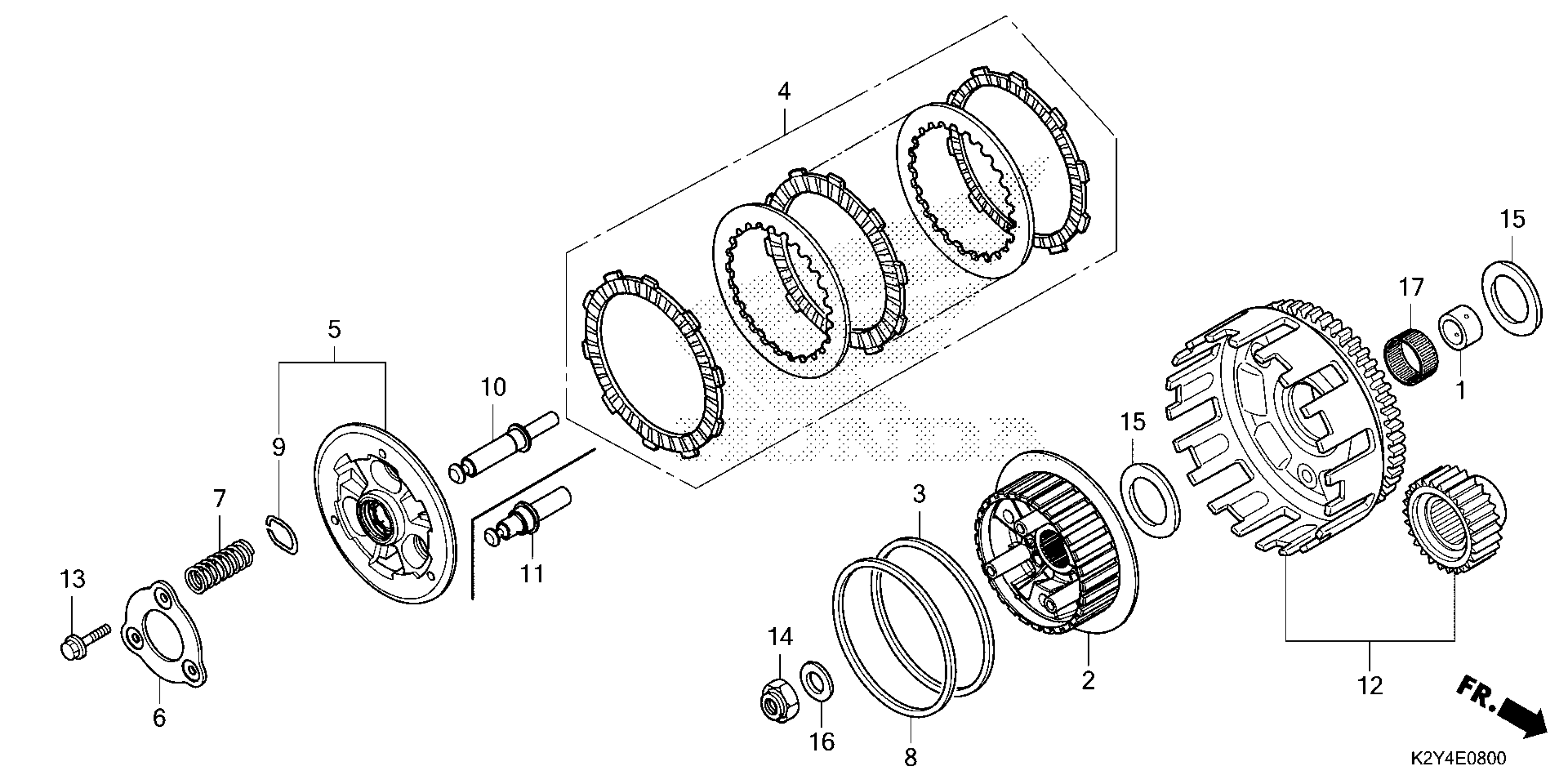

Honda CMX300A (25) MOTORCYCLE, THA, VIN# MLHNC530-S5800001 TO MLHNC530-S5999999 CLUTCH Diagram

GUIDE A, CLUTCH (OUTER) (WHITE)

22116-K33-D00

$6.95

GUIDE B, CLUTCH (OUTER) (BLUE)

22117-K33-D00

$6.95

CENTER, CLUTCH

22121-K87-A31

$66.47

SEAT, JUDDER SPRING

22125-K0Z-901

$2.03

DISK SET, CLUTCH

22210-K0Z-305

$27.17

PLATE, CLUTCH PRESSURE

22350-K87-A31

$74.41

PLATE, SETTING

22361-K0Z-901

$1.51

SPRING, CLUTCH

22401-K87-A31

$4.26

SPRING, JUDDER

22402-K87-A31

$16.02

SEAT, CLUTCH SPRING

22425-MJP-G51

$11.73

PIN, CLUTCH LIFTER

22847-KYJ-712

$1.49

GEAR SET

23121-K0A-305

$60.39

BOLT, FLANGE (6X25)

90008-KRM-840

$1.49

NUT, SPECIAL (16MM)

90201-KYJ-900

$3.67

WASHER (20X40X2)

90404-KVK-900

$3.01

WASHER (16MM)

90434-KPS-900

$2.05

BEARING (28X33X16.8)

91012-KYJ-711

$2.72

BEARING, NEEDLE (28X33X16.8) | (Optional).

91012-KYJ-901

$6.13
