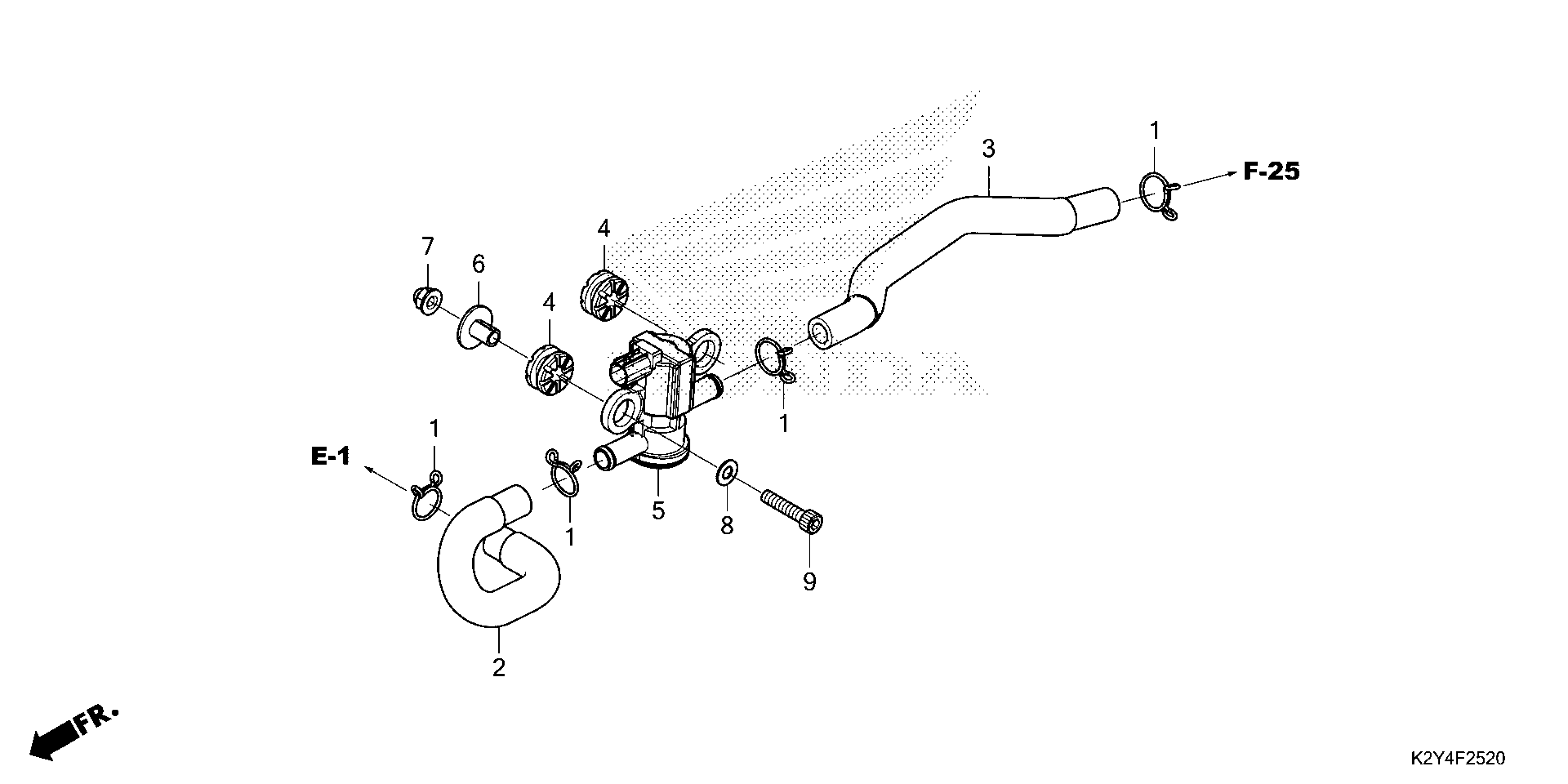

Honda CMX300A (25) MOTORCYCLE, THA, VIN# MLHNC530-S5800001 TO MLHNC530-S5999999 AIR INJECTION SOLENOID VALVE Diagram

CLIP, BREATHER TUBE

15772-KTY-J00

$1.49

TUBE A, AIR INJECTION

18651-K87-A00

$11.38

TUBE B, AIR INJECTION

18652-K87-A00

$13.10

RUBBER, HEADLIGHT

33115-KVK-900

$1.49

VALVE ASSY., AIR INJECTION SOLENOID

36450-KVK-902

$62.61

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.42

NUT, CAP (6MM)

90202-KCW-870

$2.92

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

BOLT, SOCKET (6X28)

96600-06028-08

$3.80
