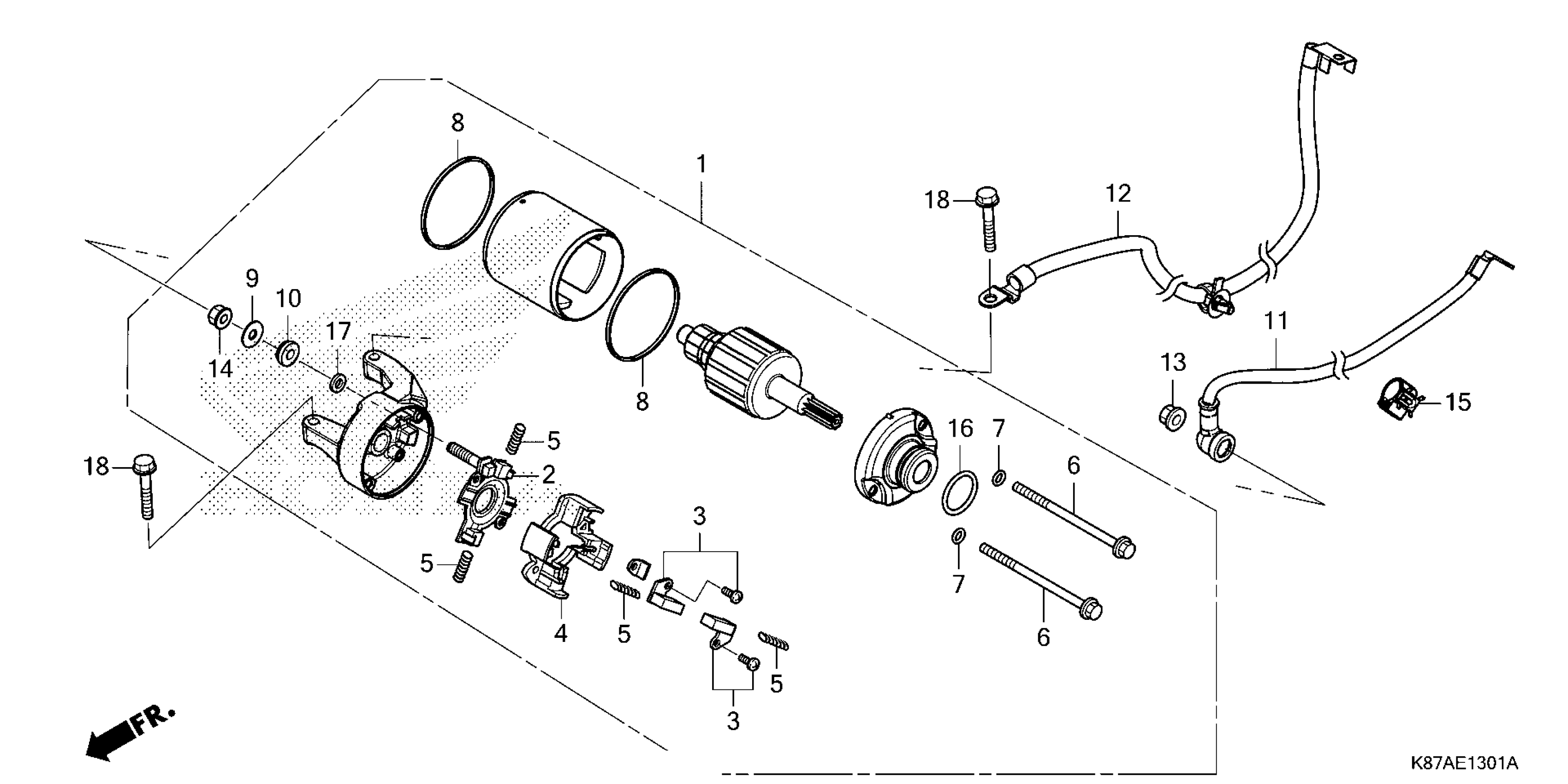

Honda CMX300A (24) REBEL 300 ABS, THA, VIN# MLHNC530-R5700001 STARTER MOTOR (2) Diagram

#

Description
Price

1

STARTER MOTOR ASSY.

31200-K0A-DB1

$115.54

2

BRUSH SET

31201-K0Z-901

$12.31

3

BRUSH SET

31202-K0Z-901

$5.64

4

HOLDER, BRUSH

31203-K0Z-901

$2.31

5

SPRING, BRUSH

31204-K0Z-901

$1.49

6

BOLT, THROUGH

31205-K0Z-901

$1.49

7

O-RING

31206-K0Z-901

$1.49

8

SEAL, YOKE

31207-K0Z-901

$1.49

9

WASHER, PLAIN

31210-K0Z-901

$1.49

10

INSULATOR, BUSH

32112-K0Z-901

$1.49

11

CABLE, STARTER MOTOR

32410-K2Y-A00

$15.38

12

CABLE, BATTERY GROUND

32601-K87-A00

$14.08

13

NUT-WASHER (6MM)

90071-KTE-D00

$1.49

14

NUT, FLANGE

90201-K0Z-901

$1.49

15

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

16

O-RING

91309-K0Z-901

$1.49

17

RING, SEAL

91320-K0Z-901

$1.49

18

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
