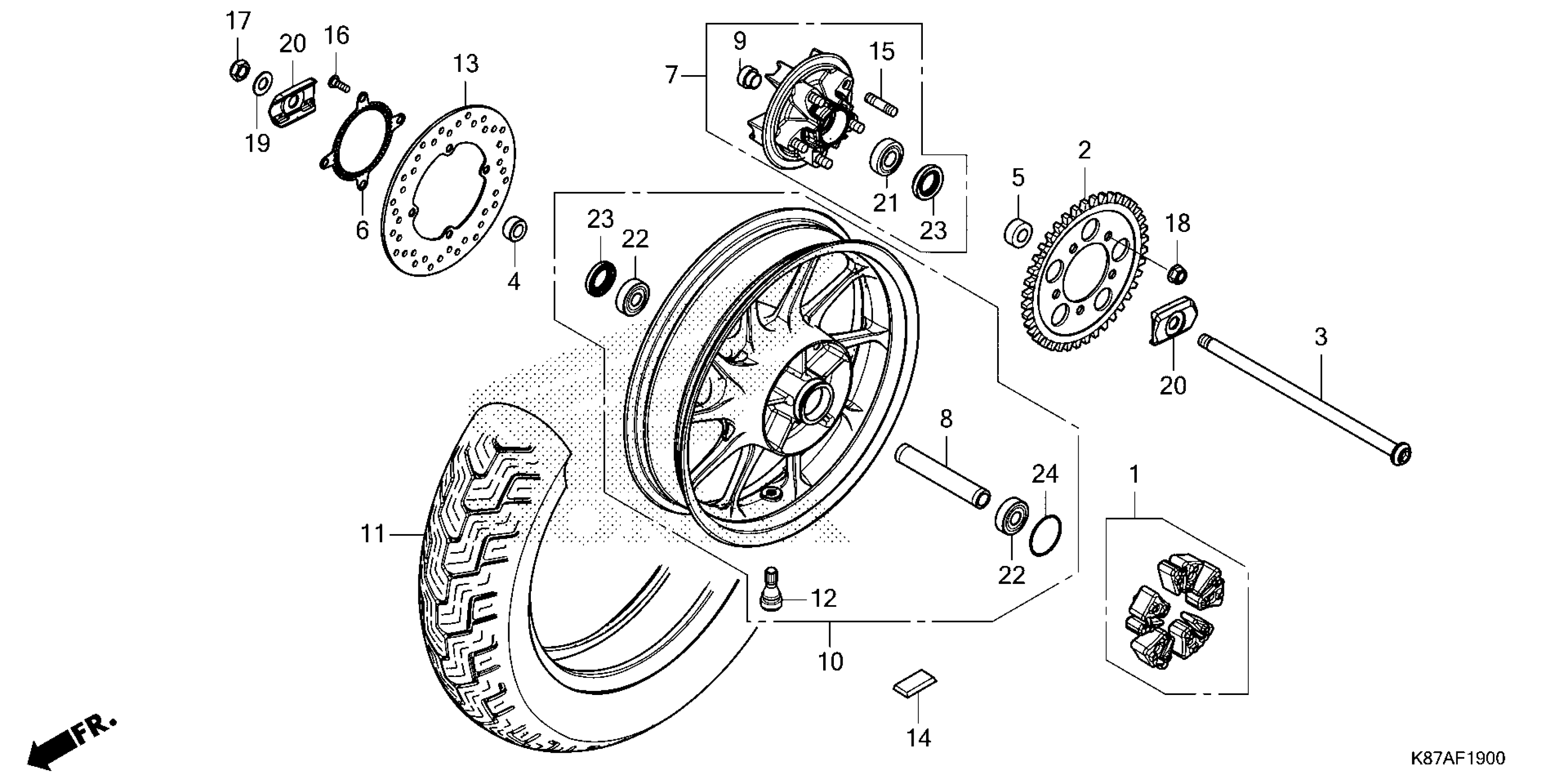

Honda CMX300A (24) REBEL 300 ABS, THA, VIN# MLHNC530-R5700001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MGS-D30

$52.73

2

SPROCKET, FINAL DRIVEN (36T)

41201-K87-A00

$34.22

3

AXLE, RR. WHEEL

42301-K87-A00

$21.87

4

COLLAR, RR. BRAKE SIDE

42312-MGZ-J00

$12.21

5

COLLAR, L. RR. WHEEL SIDE

42313-K87-A00

$10.49

7

FLANGE SUB-ASSY.

42615-MKP-DN0

$234.49

8

COLLAR, RR. AXLE DISTANCE

42620-K87-A00

$14.75

9

COLLAR B, RR. AXLE DISTANCE

42625-K87-A00

$5.13

10

WHEEL SUB-ASSY., RR.

42650-K87-A00

$305.41

11

TIRE, RR. (150/80-16 M/C 71H) (DUNLOP)

42711-K87-A31

Unavailable

12

VALVE, RIM (IRC)

42753-GM9-743

$7.99

13

DISK, RR. BRAKE

43251-MKY-D51

$77.54

14

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.28

14

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.93

14

WEIGHT, BALANCE (20G)

44723-MGH-H21

$3.75

15

BOLT 2, STUD (12X25)

90102-MAS-000

$3.83

16

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.76

17

NUT, U (16MM)

90305-GW2-711

$15.03

18

NUT, U (12MM) (FUJI SEIMITSU)

90306-KGH-901

$2.37

19

WASHER, PLAIN (16.4X32X2)

90501-K87-A00

$1.38

20

PLATE, SWINGARM SIDE

90559-K87-A00

$24.73

21

BEARING (6204UU)

91053-MKP-DN1

Unavailable

22

BEARING, RADIAL BALL (6303UU) (NSK)

91054-MT6-831

$35.18

23

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$11.13

23

DUST SEAL (30X47X8) (NOK)

91253-443-762

$11.13

24

O-RING (55X2)

91351-MGS-D30

Unavailable
