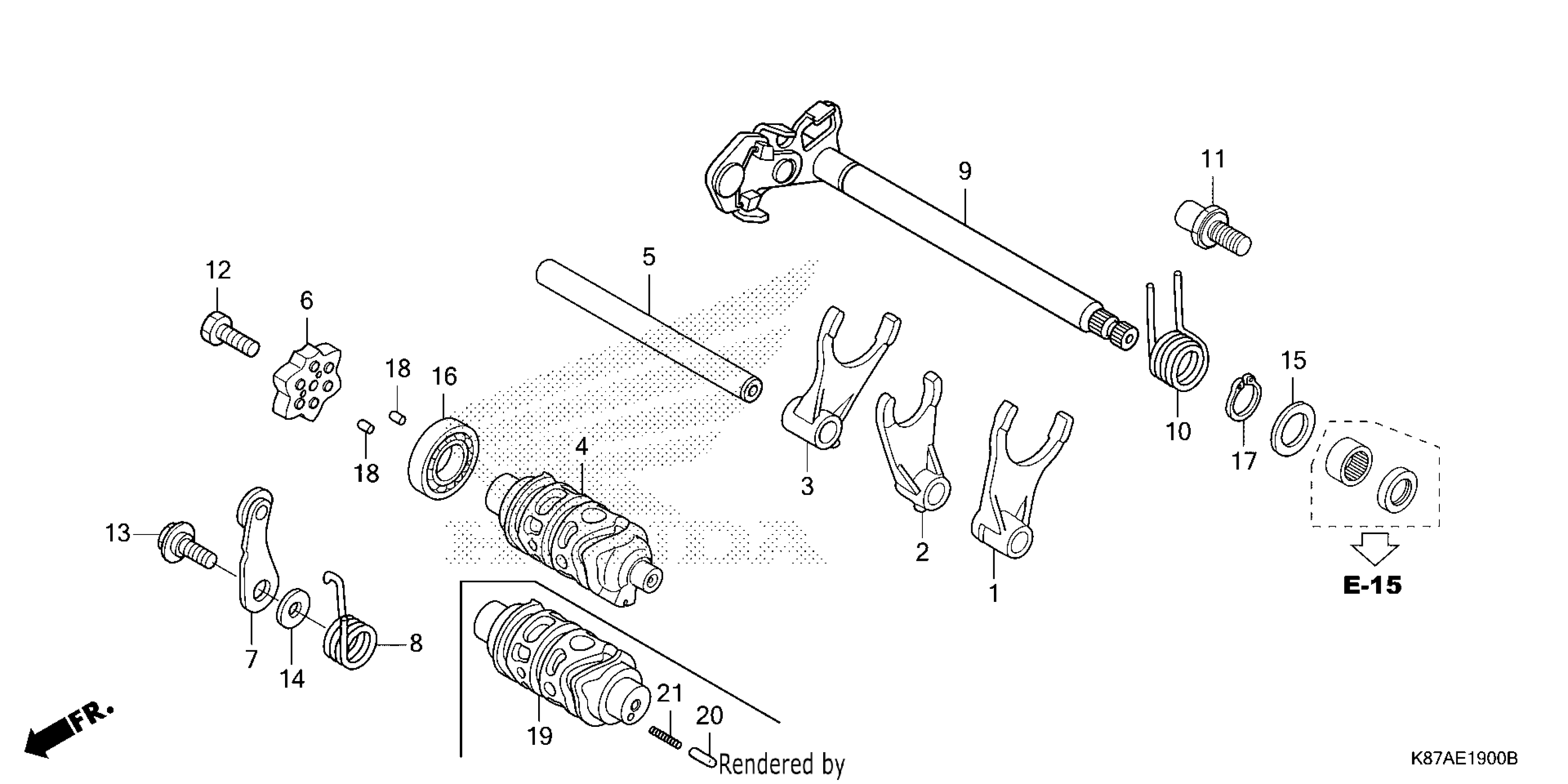

Honda CMX300A (24) REBEL 300 ABS, THA, VIN# MLHNC530-R5700001 GEARSHIFT DRUM Diagram

FORK, L. GEARSHIFT

24211-KZZ-900

$22.24

FORK, CENTER GEARSHIFT

24212-KZZ-900

$21.94

FORK, R. GEARSHIFT

24213-KZZ-900

$22.24

SHAFT, GEARSHIFT FORK

24321-KYJ-900

$9.72

PLATE, GEARSHIFT DRUM STOPPER

24410-KYJ-900

$64.49

STOPPER, GEARSHIFT DRUM

24430-KGH-901

$10.37

SPRING, DRUM STOPPER

24435-KYJ-900

$0.62

SPINDLE, GEARSHIFT

24610-KYJ-900

$39.64

SPRING, GEARSHIFT RETURN

24651-KRM-840

$2.32

PIN, SHIFT RETURN SPRING

24652-KRM-840

$6.02

BOLT, HEX. (6X20)

90003-KVS-900

$1.88

PIVOT, SHIFT DRUM STOPPER ARM

90022-KRM-840

$1.28

WASHER (6.1MM)

90435-HB3-000

$2.80

WASHER (14MM)

90457-KRM-840

$0.68

BEARING, RADIAL BALL (6905) | (Optional).

91015-MCA-003

$9.57

BEARING (6905)

91001-KYJ-711

$4.50

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

ROLLER (3X8.5)

96220-30085

$0.49

DRUM, GEARSHIFT

24301-K0A-DB0

$6.84

CAP, CHANGE SWITCH CONTACT

35751-KPH-900

$0.59

SPRING, CHANGE SWITCH CONTACT

35752-KRM-840

$0.47
