Description

Price

1

FORK ASSY., R. FR. (SHOWA)

51400-K87-A31

$400.03

2

SPRING, FR. FORK

51401-K87-A31

$35.57

3

COLLAR, SPRING

51402-K87-A31

$5.49

4

PIPE, FR. FORK

51410-K87-A31

$186.32

5

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

6

BUSH, GUIDE

51414-MFJ-A51

$7.25

7

BUSH, SLIDER

51415-MFJ-A51

$7.25

8

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.89

9

CASE, R. (LOWER)

51420-K87-A31

$182.48

10

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

11

RING, PISTON (SHOWA)

51437-MM5-003

$5.31

12

PIPE, SEAT

51440-K87-A31

$9.72

13

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

14

BOLT, FR. FORK

51454-MM9-671

$38.35

15

SEAL SET, FR. FORK

51490-MKL-D81

$25.13

16

FORK ASSY., L. FR. (SHOWA)

51500-K87-A31

$398.89

17

CASE, L. (LOWER)

51520-K87-A31

$180.41

18

BOLT, SOCKET (8X32)

90102-K87-A00

$1.49

19

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

20

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

21

DUST SEAL

91251-MKL-D81

$10.67

22

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76

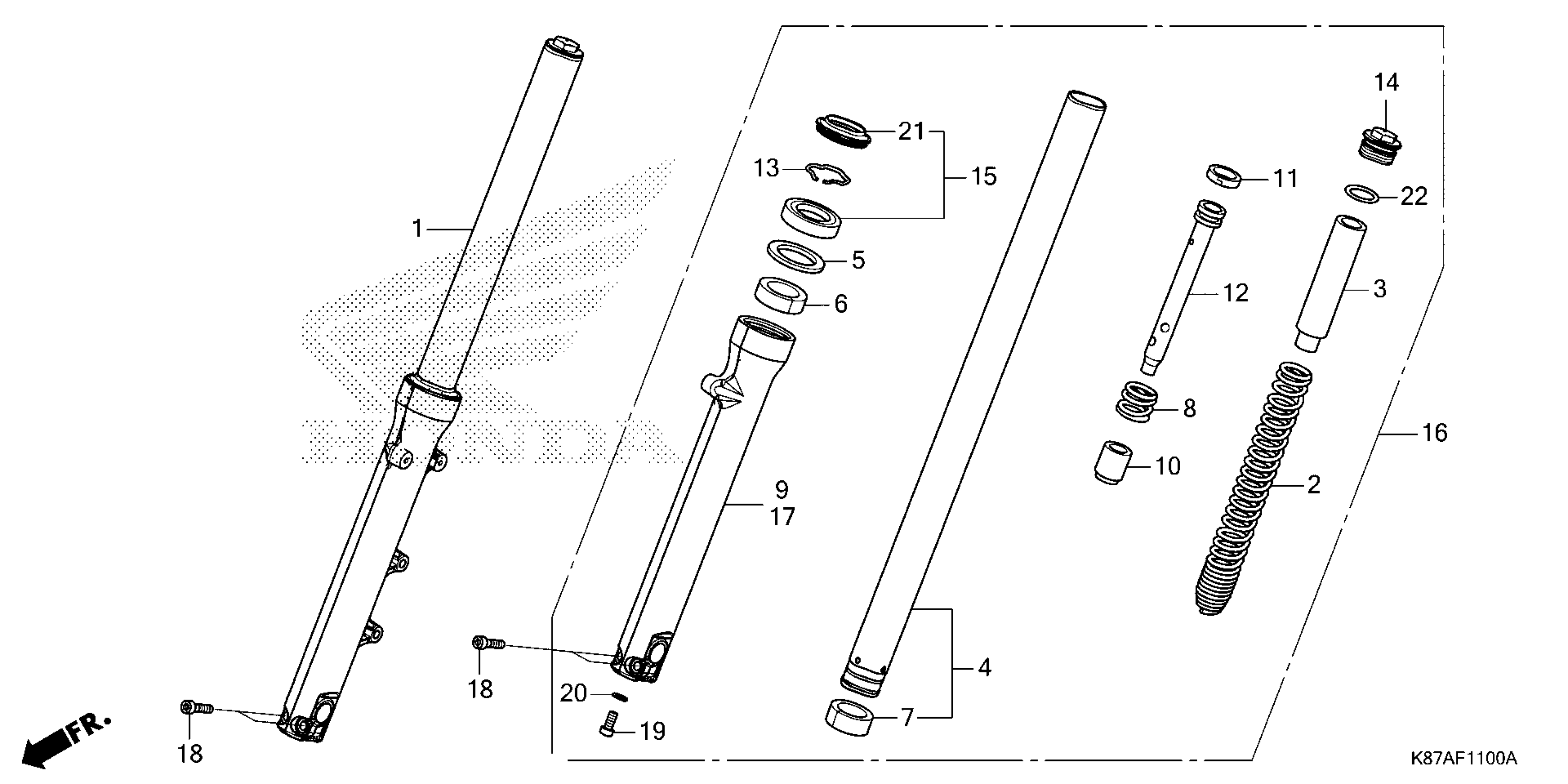

Honda CMX300A (24) REBEL 300 ABS, THA, VIN# MLHNC530-R5700001 FRONT FORK Diagram
