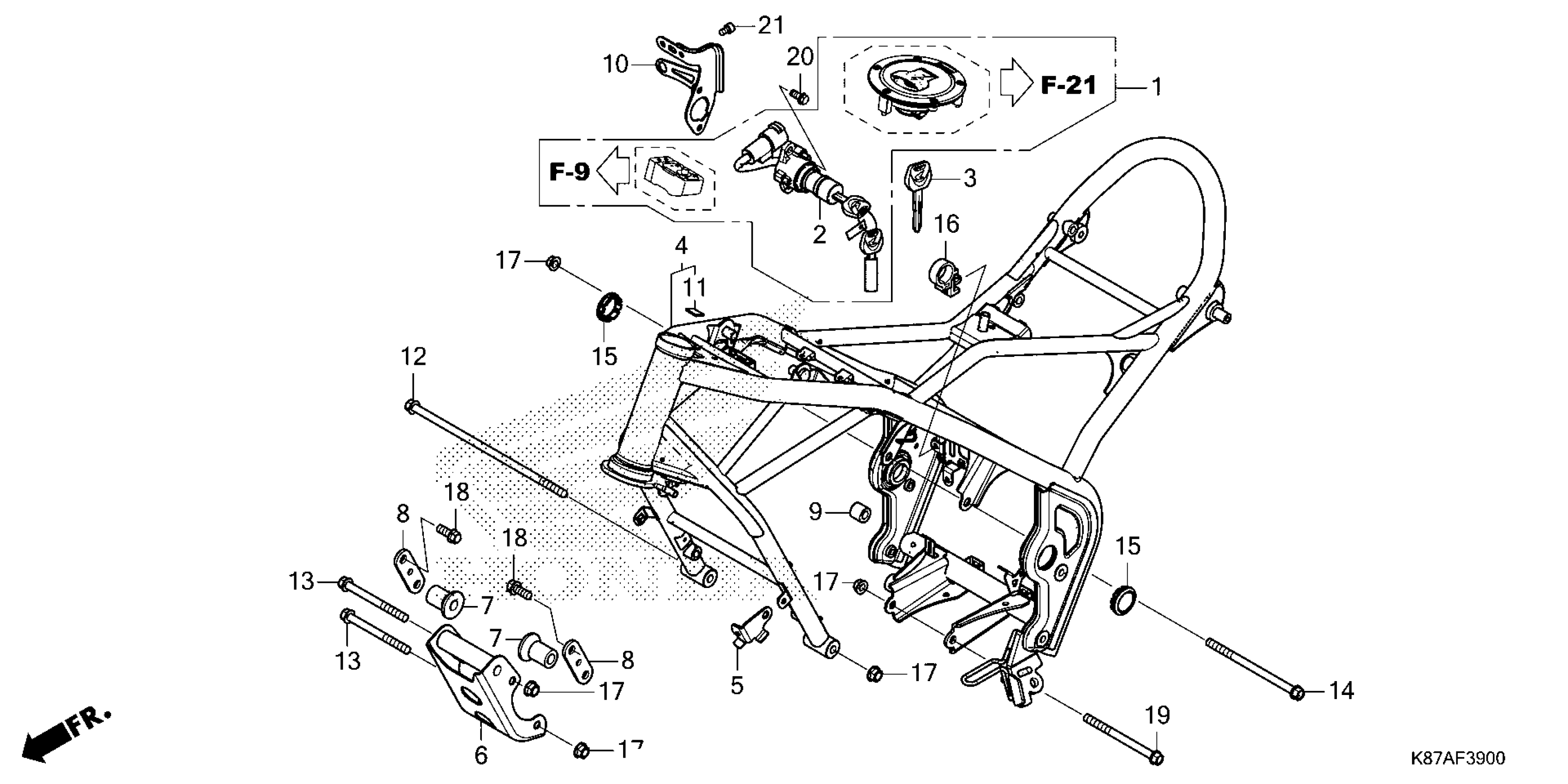

Honda CMX300A (24) REBEL 300 ABS, THA, VIN# MLHNC530-R5700001 FRAME Diagram

LOCK SET

35010-K87-A32

$262.87

SWITCH ASSY., COMBINATION (HONDALOCK)

35100-K87-A31

$106.05

KEY, BLANK (TYPE1) | (Optional).

35121-MAS-G01

$12.74

FRAME SET *NH303M* (MAT AXIS GRAY METALLIC)

50010-K87-A00ZB

$1,015.54

STAY, HORN

50170-K87-A00

$8.76

PLATE, ENGINE HANGER

50201-K87-A00

$60.36

COLLAR, ENGINE HANGER

50206-K87-A30

$11.97

PLATE, ENGINE HANGER

50207-K87-A30

$2.87

COLLAR C, R. ENGINE HANGER

50353-K87-A00

$4.99

STAY, COMBINATION SWITCH

53180-K87-A30

$15.59

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

BOLT, FLANGE (10X292)

90106-K87-A00

$9.59

BOLT, FLANGE (10X115)

90107-K87-A00

$3.46

BOLT, FLANGE (10X165)

90117-K87-A00

$4.08

CAP, PIVOT

90307-K87-A00

$3.90

CLIP, WATER HOSE

91556-HL1-A00

$3.31

NUT, FLANGE (10MM)

90303-428-900

$3.35

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

BOLT, FLANGE (10X25)

95701-10025-07

$1.49

BOLT, FLANGE (10X130)

95801-10130-07

$2.98

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

BOLT, SOCKET (6X10)

96600-06010-08

$1.49
