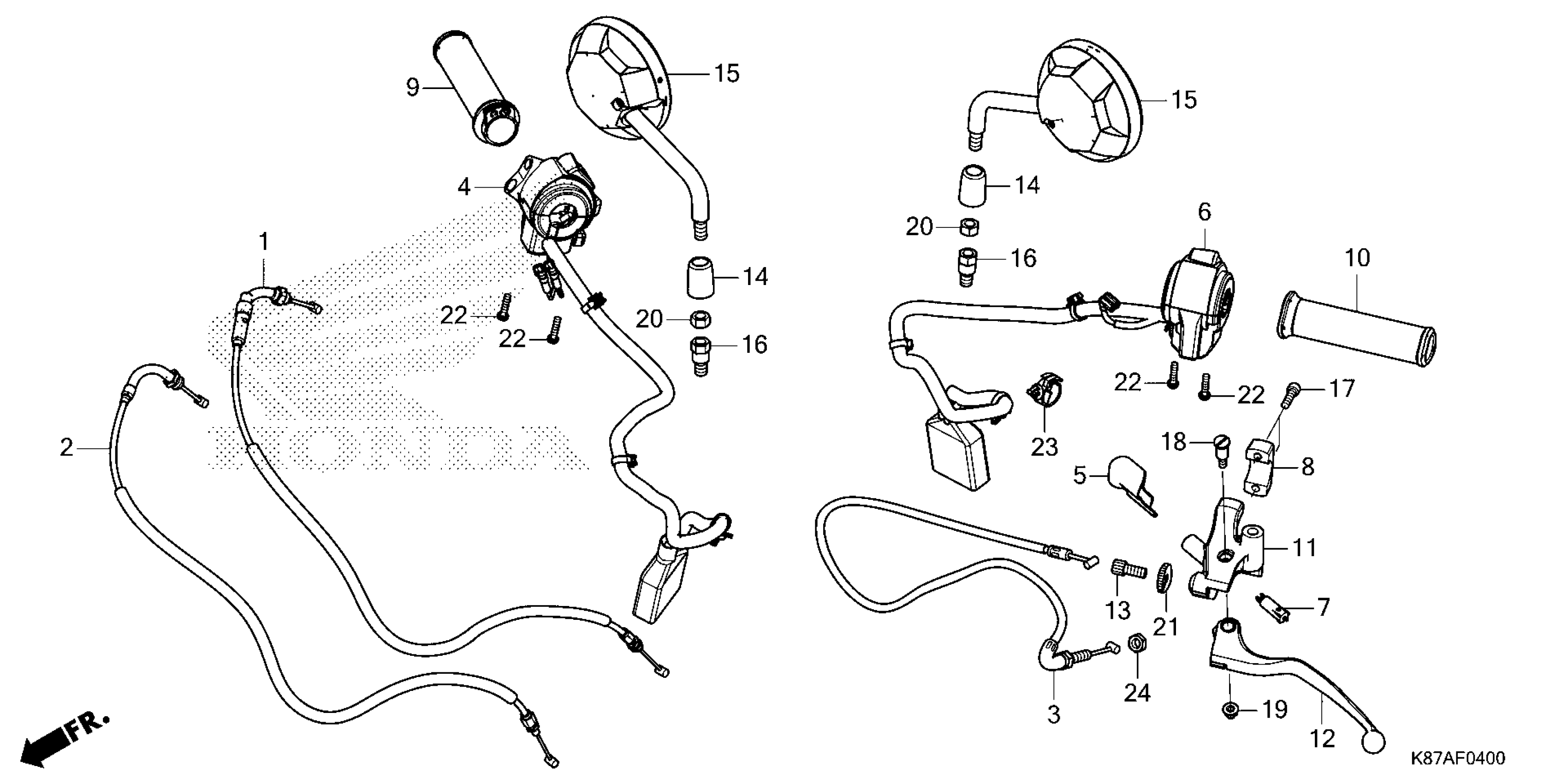

Honda CMX300A (23) REBEL 300 ABS, THA, VIN# MLHNC530-P5600001 TO MLHNC530-P5699999 HANDLE LEVER@SWITCH@CABLE@MIRROR Diagram

CABLE A, THROTTLE

17910-K87-A01

$10.57

CABLE B, THROTTLE

17920-K87-A01

$10.05

CABLE, CLUTCH

22870-K87-A01

Unavailable

SW, ST STOP & HAZARD

35130-K87-A32

$92.51

COVER, CLUTCH SWITCH

35152-MGZ-J00

$1.79

SWITCH, TURN SIGNAL

35200-K87-A32

$76.10

SWITCH, FR. LEVER

35330-KYJ-901

$6.30

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$19.01

GRIP, THROTTLE

53140-K87-A00

$10.46

GRIP, L. HANDLE

53165-K87-A00

$4.04

BRACKET, HANDLE LEVER

53172-K87-A00

$27.51

LEVER, L. HANDLE

53178-K87-A30

$20.63

BOLT, CLUTCH CABLE ADJUSTING

53192-349-690

$6.72

CAP, LOCK NUT

88119-K87-A00

$2.00

MIRROR

88210-K87-A00

$9.25

BOLT, ADAPTER (10MM)

90101-K20-901

$2.21

BOLT, SOCKET (6X22)

90111-GHB-660

$0.91

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

NUT, CAP (6MM)

90201-415-000

Unavailable

NUT, HEX. (10MM) (LEFT HAND THREAD)

90301-K20-901

$0.71

NUT, FIXING

90321-KT7-760

$9.59

SCREW-WASHER (5X20)

90507-MGZ-J00

$0.46

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

$7.22

NUT, HEX. (8MM)

94002-08070-0S

$1.31
