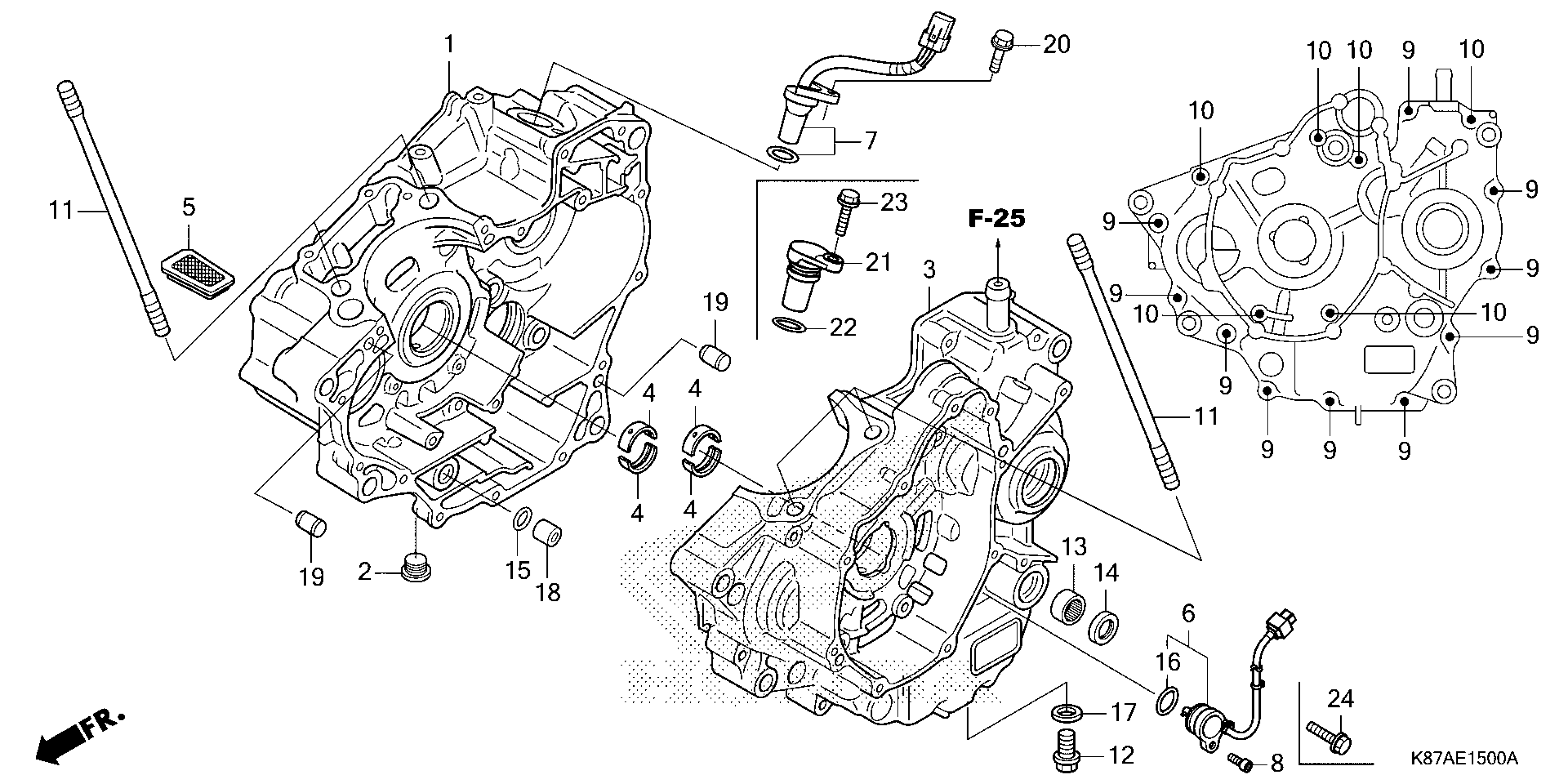

Honda CMX300A (23) REBEL 300 ABS, THA, VIN# MLHNC530-P5600001 TO MLHNC530-P5699999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-K0A-EB0

$125.03

2

BOLT, SEALING (16MM)

11107-KYJ-900

$2.87

3

CRANKCASE, L.

11200-K0A-EB0

$129.81

4

BEARING A, CRANKSHAFT (BLUE)

13312-K33-D01

$10.57

4

BEARING B, CRANKSHAFT (BLACK)

13313-K33-D01

$10.57

4

BEARING C, CRANKSHAFT (BROWN)

13314-K33-D01

$10.57

4

BEARING D, CRANKSHAFT (OVER SIZE) (RED) | (Optional).

13315-K33-305

$11.38

4

BEARING E, CRANKSHAFT (OVER SIZE) (GREEN) | (Optional).

13316-K33-305

$11.38

4

BEARING F, CRANKSHAFT (OVER SIZE) (YELLOW) | (Optional).

13317-K33-305

$11.38

4

BEARING G, CRANKSHAFT (OVER SIZE) (PINK) | (Optional).

13318-K33-305

$11.49

5

SCREEN, OIL FILTER

15421-KYJ-900

$2.80

6

CONTACT ASSY.

35759-K2Y-A01

$12.87

7

SENSOR ASSY., SPEED (NIPPON SEIKI)

37700-K87-A01

$51.20

9

BOLT, FLANGE (6X40) (NSHF)

90014-KYJ-900

$0.57

10

BOLT, FLANGE (6X70) (NSHF)

90016-KYJ-900

$0.78

11

BOLT, STUD (10X178)

90032-K33-D00

$3.19

12

BOLT, DRAIN (12MM)

90061-K0A-DB0

$0.68

13

BEARING, NEEDLE (14X20X12) | (Optional).

91028-MGS-D21

$4.91

13

BEARING (14X20X12)

91108-KYJ-711

$1.46

14

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.81

15

O-RING (11.8X1.9)

91301-KYJ-710

$0.12

16

O-RING (19.4X2.3)

91305-K0N-D00

$0.29

17

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

18

PIN A, DOWEL (12X16)

94301-12160

Unavailable

19

PIN B, DOWEL (8X14)

94302-08140

$2.04

20

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.48

24

BOLT, FLANGE (6X20)

95702-06020-08

$0.91
