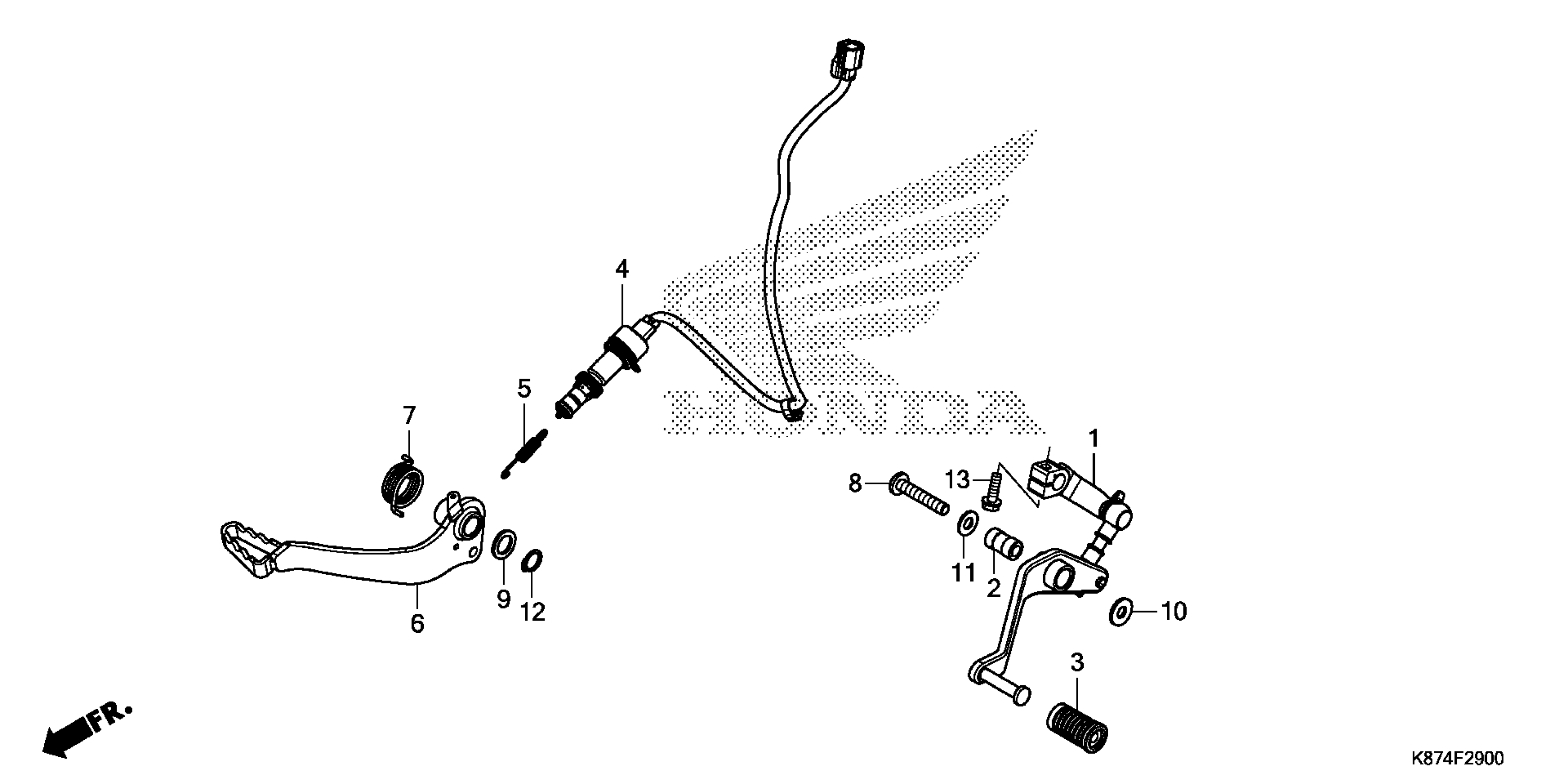

Honda CMX300A (19) MOTORCYCLE, THA, VIN# MLHNC530-K5200001 TO MLHNC530-K5299999 PEDAL Diagram

PEDAL, GEARSHIFT

24705-K87-A00

$24.46

COLLAR, GEARSHIFT PEDAL PIVOT

24731-K87-A00

$2.92

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

SWITCH ASSY., RR. STOP (TOYO DENSO)

35350-K87-A01

$28.92

SPRING, STOP SWITCH

35357-K26-900

$0.75

PEDAL, RR. BRAKE

46501-K87-A00

$22.92

SPRING, BRAKE PEDAL

46514-K87-A00

$2.82

BOLT, SOCKET SPECIAL (8X45)

90110-K87-A00

$0.91

WASHER (14MM)

90451-GBL-870

$2.80

WASHER (8.5X20)

90526-K87-A00

$1.00

WASHER, PLAIN (8MM)

94101-08000

Unavailable

CIRCLIP (OUTER) (14MM)

94511-14000

$0.79

BOLT, FLANGE (6X20)

95701-06020-07

$1.63
