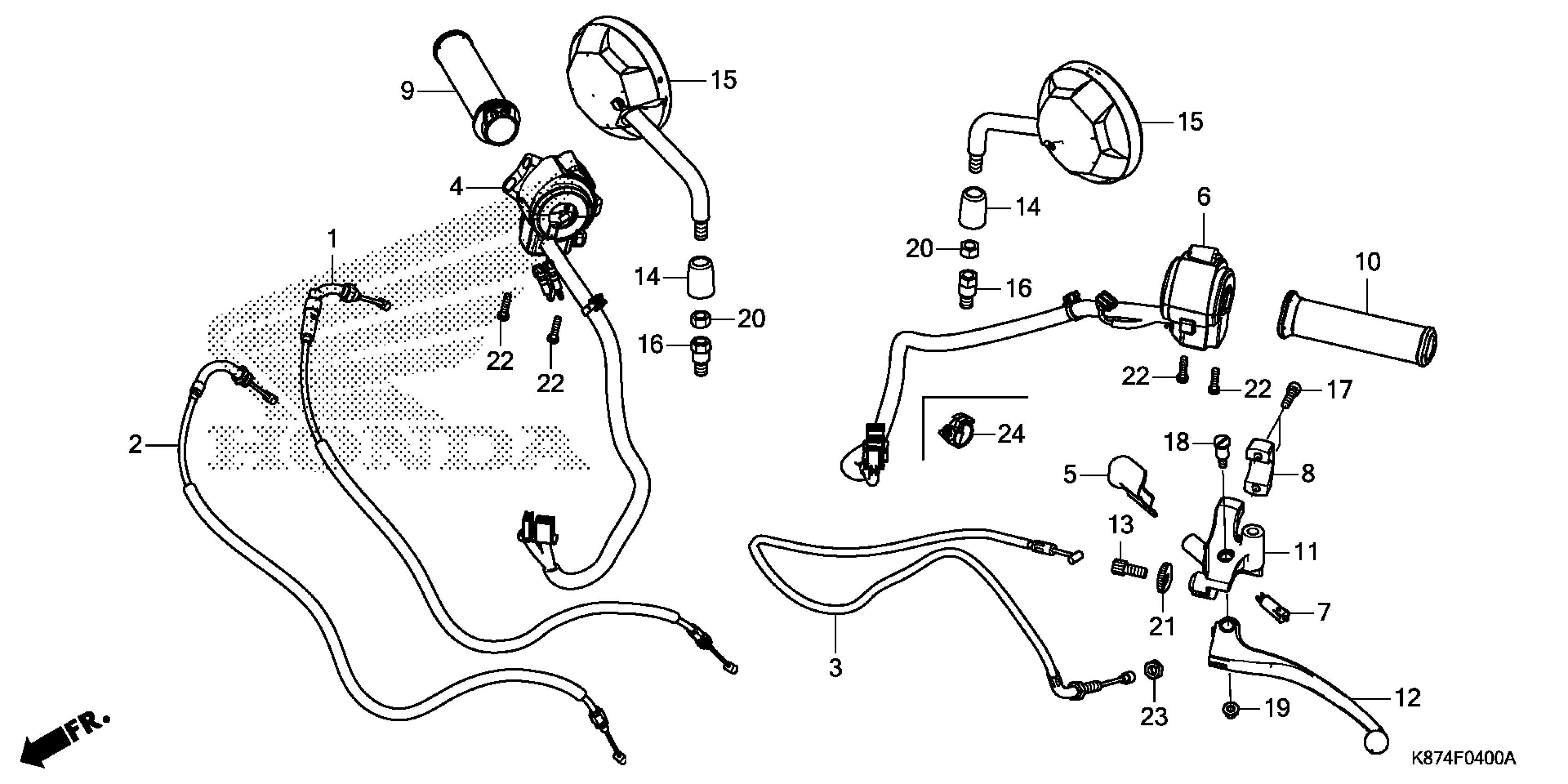

Honda CMX300A (19) MOTORCYCLE, THA, VIN# MLHNC530-K5200001 TO MLHNC530-K5299999 HANDLE LEVER@SWITCH@CABLE@MIRROR Diagram

CABLE A, THROTTLE

17910-K87-A01

$11.82

CABLE B, THROTTLE

17920-K87-A01

$11.24

CABLE, CLUTCH

22870-K87-A01

$11.77

SW, ST STOP& HAZARD This part replaces 35130-K87-A01.

35130-K87-A02

$73.92

SW, ST STOP& HAZARD

35130-K87-A02

$73.92

COVER, CLUTCH SWITCH

35152-MGZ-J00

$2.00

SW, TURN SIGNAL This part replaces 35200-K87-A01.

35200-K87-A02

$75.31

SW, TURN SIGNAL

35200-K87-A02

$75.31

SWITCH, FR. LEVER

35330-KYJ-901

$6.80

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$20.71

GRIP, THROTTLE

53140-K87-A00

$11.73

GRIP, L. HANDLE

53165-K87-A00

$4.35

BRACKET, HANDLE LEVER

53172-K87-A00

$30.86

LEVER, L. HANDLE

53178-K87-A00

$24.99

BOLT, CLUTCH CABLE ADJUSTING

53192-349-690

$7.04

CAP, LOCK NUT

88119-K87-A00

$2.23

MIRROR

88210-K87-A00

$10.35

BOLT, ADAPTER (10MM)

90101-K20-901

$2.46

BOLT, SOCKET (6X22)

90111-GHB-660

$1.49

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, HEX. (10MM) (LEFT HAND THREAD)

90301-K20-901

$1.49

NUT, FIXING

90321-KT7-760

$10.45

SCREW-WASHER (5X20)

90507-MGZ-J00

$1.49

NUT, HEX. (8MM)

94002-08070-0S

$1.49
