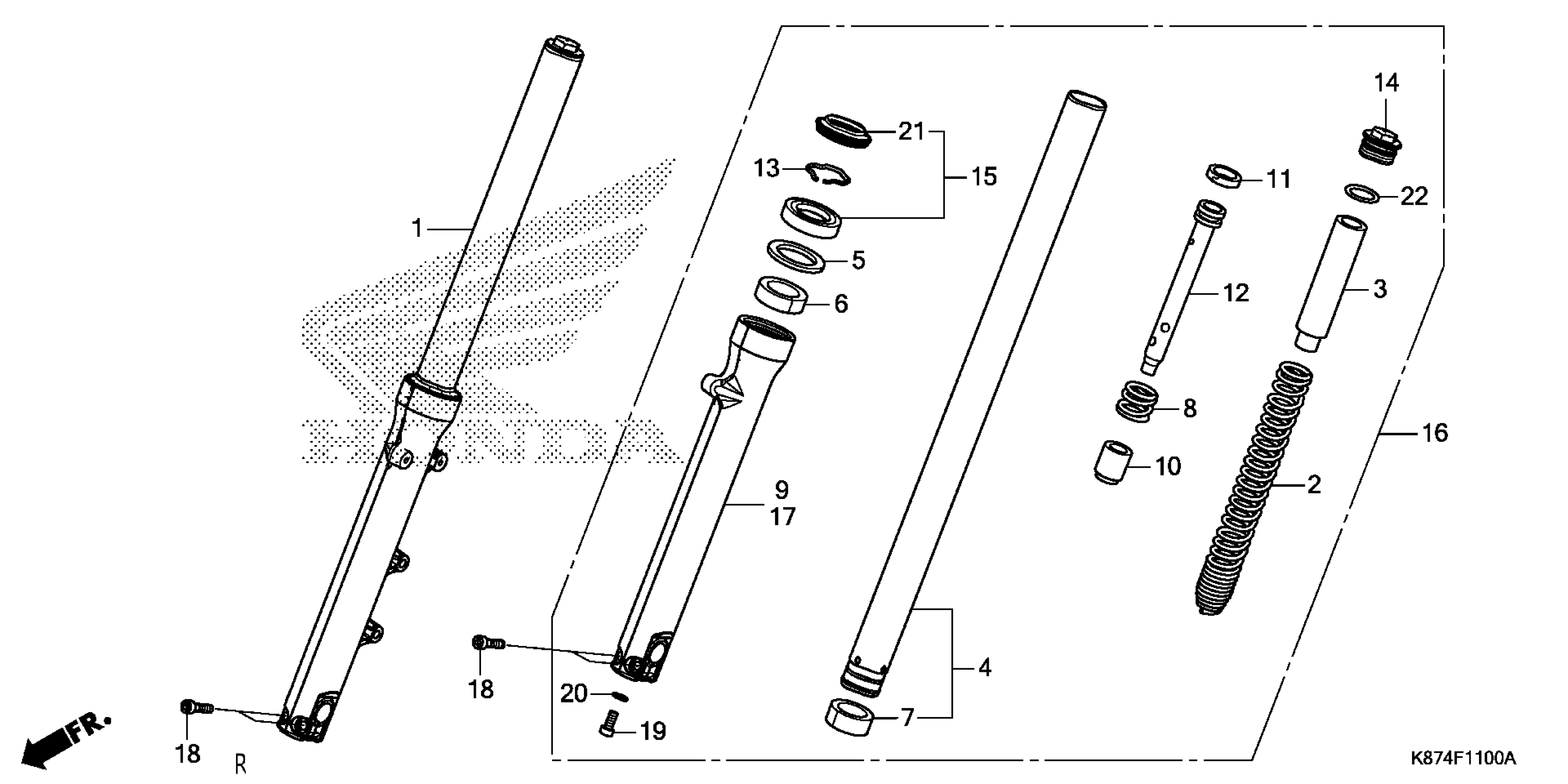

Honda CMX300A (19) MOTORCYCLE, THA, VIN# MLHNC530-K5200001 TO MLHNC530-K5299999 FRONT FORK Diagram

FORK ASSY., R. FR. (SHOWA)

51400-K87-A01

$370.16

SPRING, FR. FORK

51401-K87-A01

$40.59

COLLAR, SPRING

51402-MGZ-J01

$18.27

PIPE, FR. FORK

51410-K87-A01

$99.58

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

BUSH, GUIDE

51414-MFJ-A51

$7.25

BUSH, SLIDER

51415-MFJ-A51

$7.25

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.89

CASE, R. (LOWER)

51420-K87-A01

$169.23

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

RING, PISTON (SHOWA)

51437-MM5-003

$5.31

PIPE, SEAT

51440-K87-A01

$9.70

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

BOLT, FR. FORK

51454-MM9-671

$38.35

SEAL SET, FR. FORK

51490-MKA-D81

$22.76

FORK ASSY., L. FR. (SHOWA)

51500-K87-A01

$371.00

CASE, L. (LOWER)

51520-K87-A01

$169.80

BOLT, SOCKET (8X32)

90102-K87-A00

$1.49

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

DUST SEAL (SHOWA)

91251-MKA-D81

$8.55

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76
