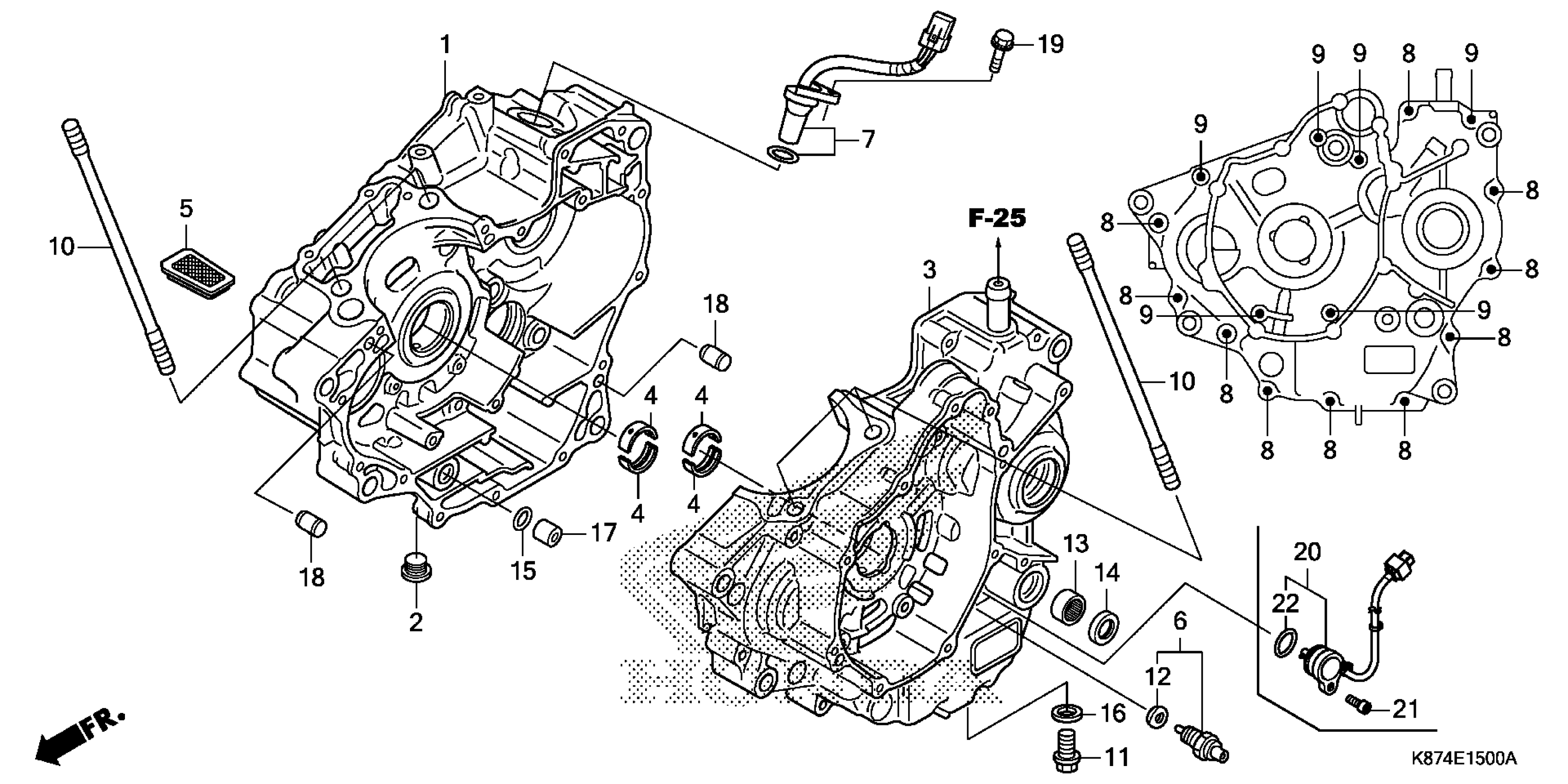

Honda CMX300A (19) MOTORCYCLE, THA, VIN# MLHNC530-K5200001 TO MLHNC530-K5299999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-K33-D00

$165.82

2

BOLT, SEALING (16MM)

11107-KYJ-900

$3.25

3

CRANKCASE, L.

11200-K33-D00

$185.02

4

BEARING A, CRANKSHAFT (BLUE)

13312-K33-D01

$11.78

4

BEARING B, CRANKSHAFT (BLACK)

13313-K33-D01

$11.78

4

BEARING C, CRANKSHAFT (BROWN)

13314-K33-D01

$11.78

4

BEARING D, CRANKSHAFT (OVER SIZE) (RED) | (Optional).

13315-K33-305

$12.49

4

BEARING E, CRANKSHAFT (OVER SIZE) (GREEN) | (Optional).

13316-K33-305

$12.49

4

BEARING F, CRANKSHAFT (OVER SIZE) (YELLOW) | (Optional).

13317-K33-305

$12.49

4

BEARING G, CRANKSHAFT (OVER SIZE) (PINK) | (Optional).

13318-K33-305

$12.62

5

SCREEN, OIL FILTER

15421-KYJ-900

$3.03

6

SWITCH ASSY., NEUTRAL

35600-425-023

$21.73

7

SENSOR ASSY., SPEED (NIPPON SEIKI)

37700-K87-A01

$57.92

8

BOLT, FLANGE (6X40) (NSHF)

90014-KYJ-900

$1.49

9

BOLT, FLANGE (6X70) (NSHF)

90016-KYJ-900

$1.49

10

BOLT, STUD (10X178)

90032-K33-D00

$3.61

11

BOLT, DRAIN PLUG (12MM)

90061-KYJ-900

$1.49

12

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.49

13

BEARING, NEEDLE (14X20X12)

91028-MGS-D21

$5.39

14

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.98

15

O-RING (11.8X1.9)

91301-KYJ-901

$1.49

16

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

17

PIN A, DOWEL (12X16)

94301-12160

$2.27

18

PIN B, DOWEL (8X14)

94302-08140

$2.25

19

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62
