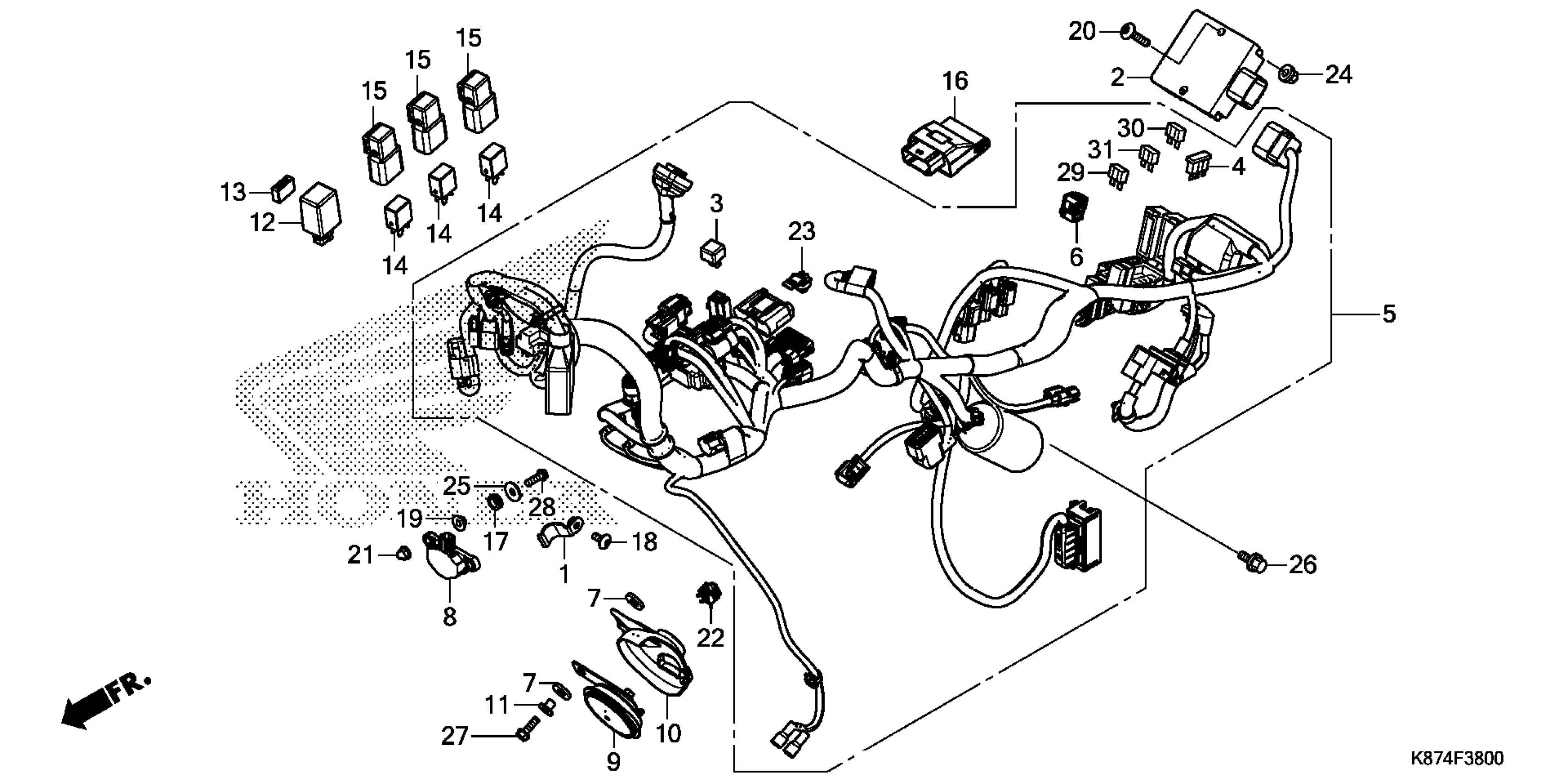

Honda CMX300A (17) MOTORCYCLE, THA, VIN# MLHNC530-H5000001 TO MLHNC530-H5099999 WIRE HARNESS (1) Diagram

STAY, MAIN HARNESS

19136-K87-A00

$3.52

RECTIFIER ASSY., REGULATE

31600-K87-A01

$110.69

RECTIFIER, SILICON

31700-MM8-610

$24.98

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-K87-A00

$718.39

CAP, DUMMY (WPC 4P 090 M) (RED)

32606-K44-V01

$7.31

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.51

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$108.46

HORN (HIGH)

38110-MGZ-J01

$28.62

HEAT GUARD, HORN

38111-MGZ-J00

$4.31

COLLAR, HORN SETTING

38117-MGZ-J00

$1.79

RELAY, TURN SIGNAL (MITSUBA)

38301-MJE-D02

$49.85

SUSPENSION, TURN SIGNAL RELAY

38306-MGZ-K00

$5.36

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

SUSPENSION, POWER RELAY

38506-MCS-G00

$5.86

PGM-FI UNIT

38770-K87-A02

$164.77

RUBBER, SIDE COVER

64535-MFJ-D00

$1.93

SCREW, PAN (6X14)

90118-MGZ-D80

$1.49

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.36

SCREW, PAN (6X22)

90130-KYJ-900

$1.49

NUT, CAP (6MM)

90202-KCW-870

$2.92

CLIP, CABLE (8MM)

90690-GHB-631

$2.08

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

NUT, FLANGE (6MM)

94050-06070

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

FUSE F (7.5A) (MINI)

98200-40750

$1.49

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49
