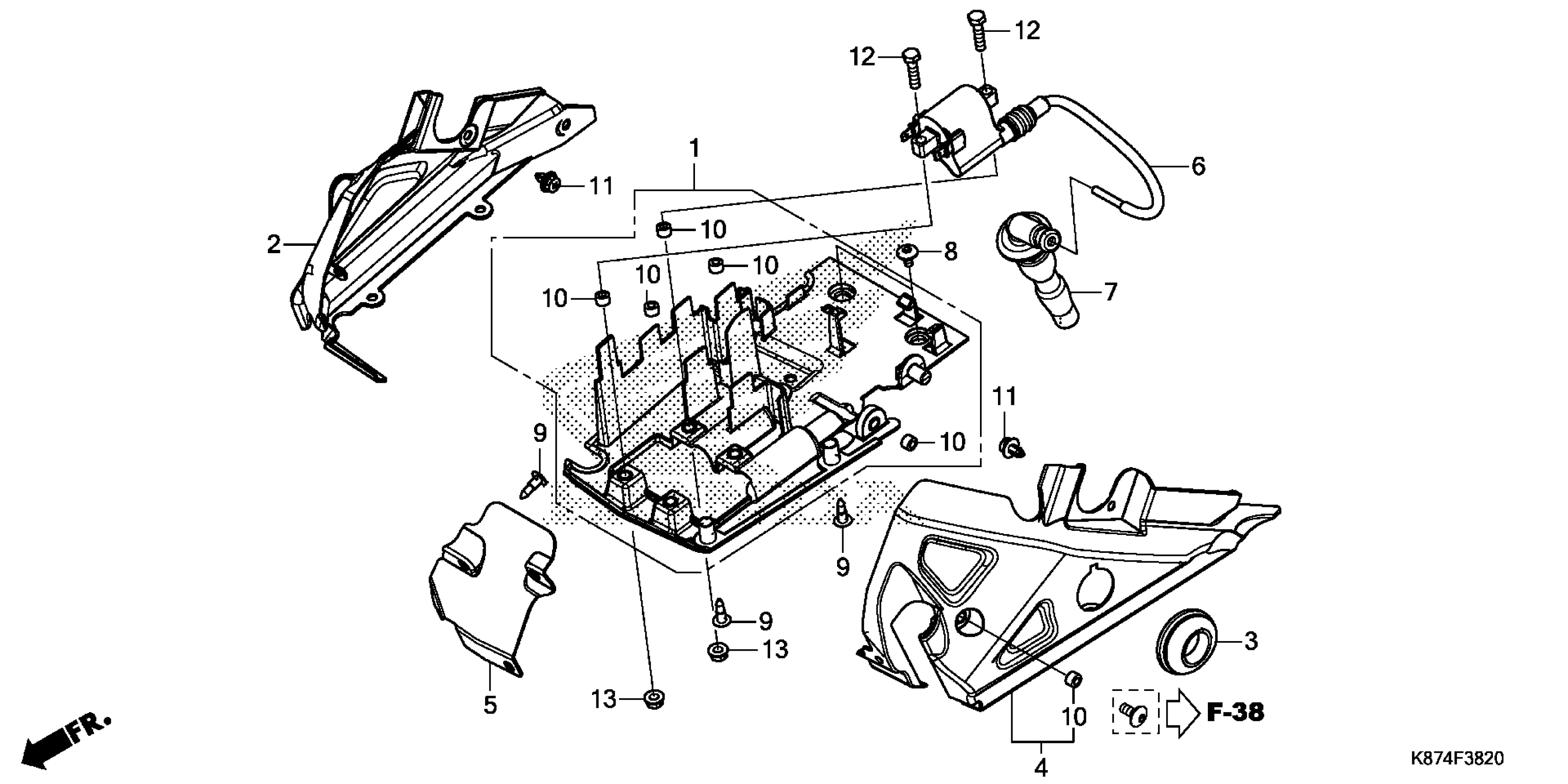

Honda CMX300A (17) MOTORCYCLE, THA, VIN# MLHNC530-H5000001 TO MLHNC530-H5099999 IGNITION COIL (1) Diagram

TRAY, IGNITION COIL

19125-K87-A00

$69.56

COVER, R. IGNITION COIL TRAY

19130-K87-A00

$5.07

COVER, KEY

19131-K87-A00

$1.99

COVER, L. IGNITION COIL TRAY

19135-K87-A00

$5.69

COVER, CENTER IGNITION TRAY

19140-K87-A00

$5.07

COIL, L. IGNITION

30510-MGZ-J01

$20.93

CAP ASSY., NOISE SUPPRESSOR

30700-K87-A01

$36.03

SCREW, SPECIAL (5X11)

90114-KPH-700

$0.91

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

COLLAR, BODY COVER

90312-GFM-970

$1.50

CLIP, BODY

90683-MBW-003

$1.93

BOLT, HEX. (6X25) BOLT-WASHER (6X25)

92101-06025-0A

$1.50

NUT, FLANGE (6MM)

94050-06080

$0.60
